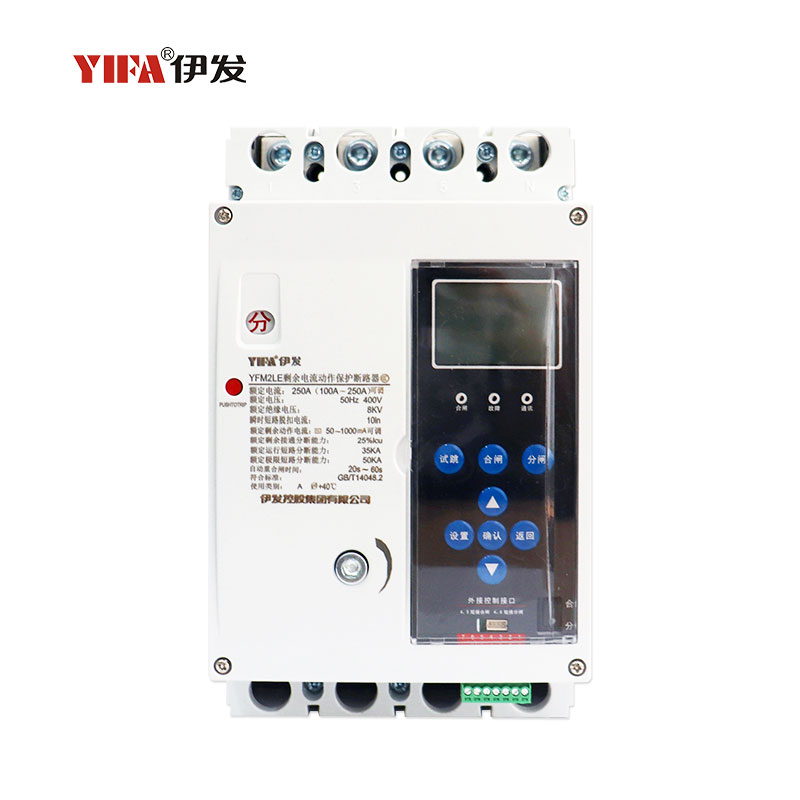

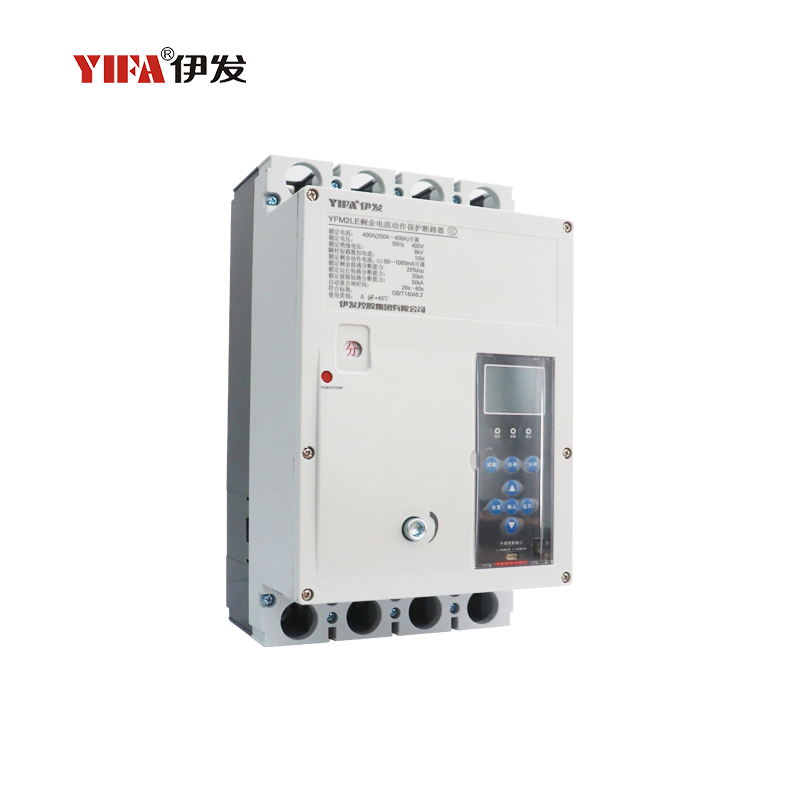

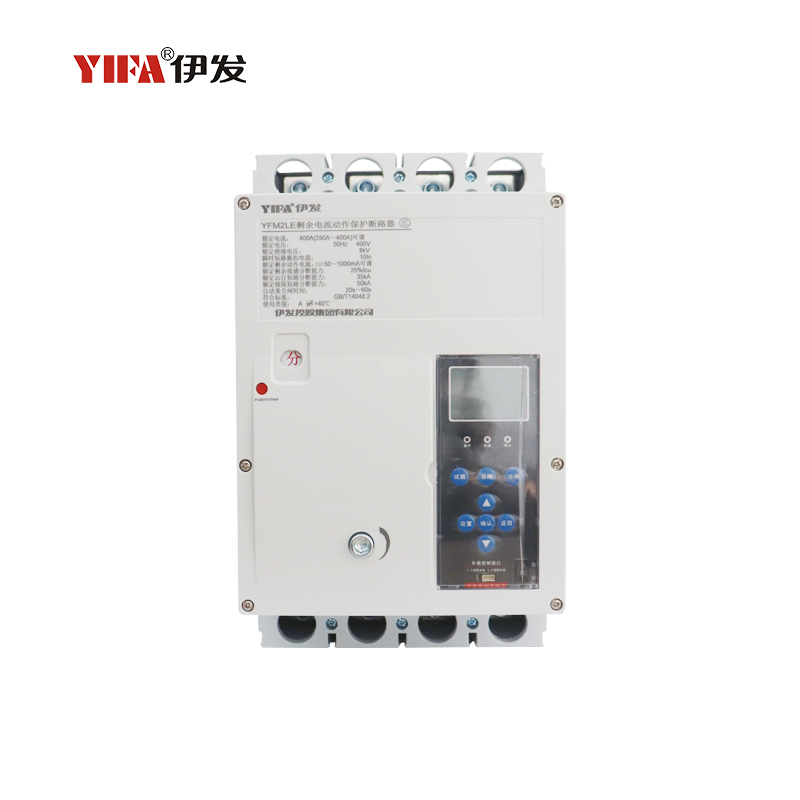

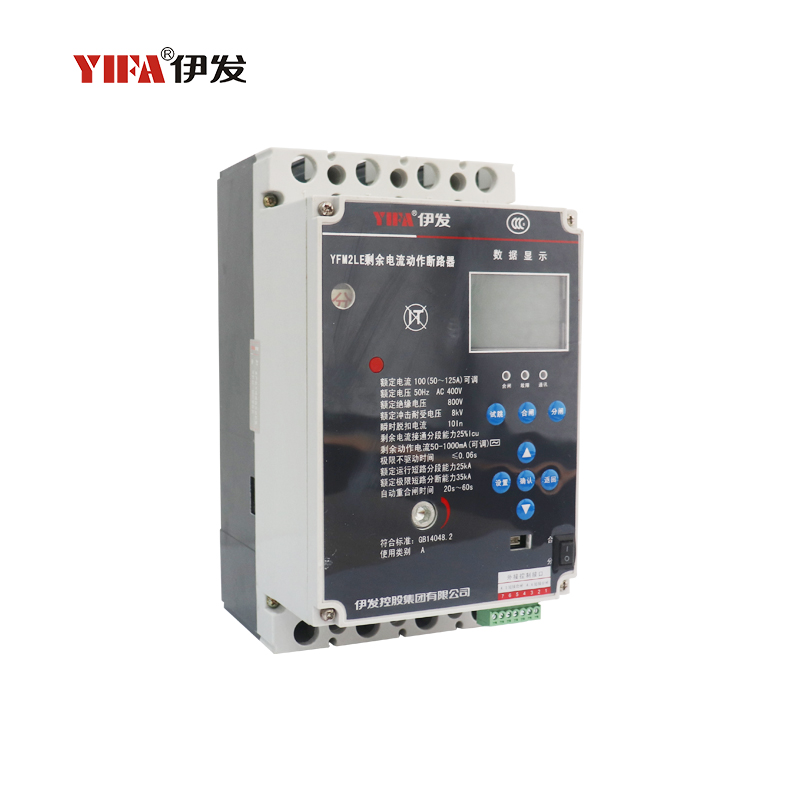

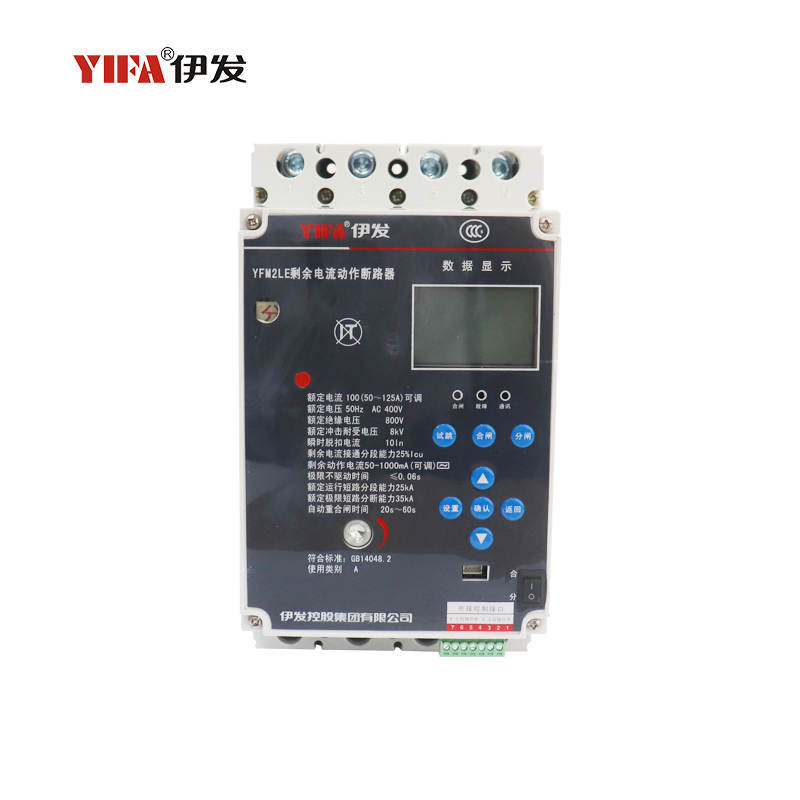

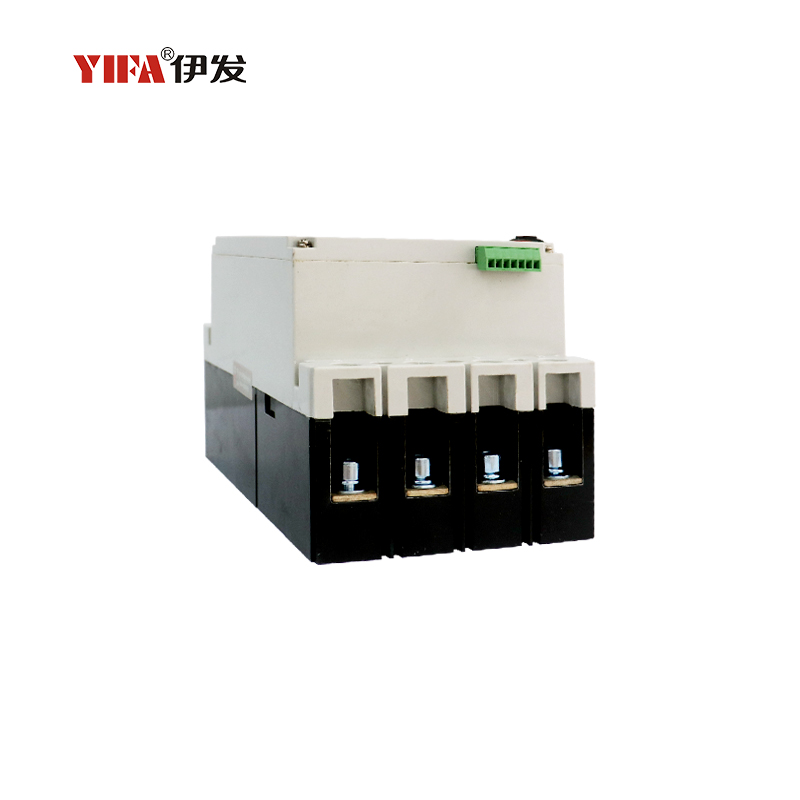

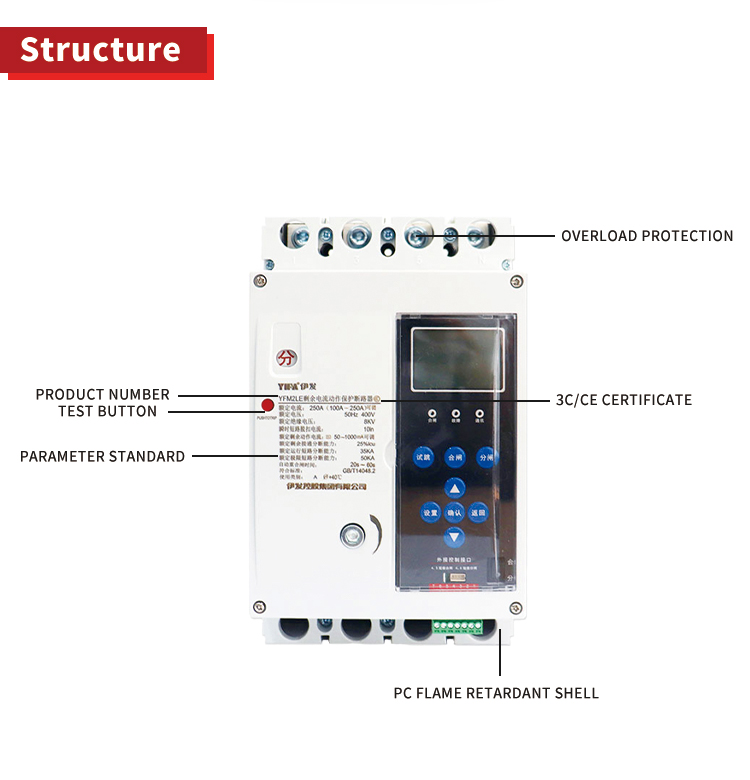

YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)

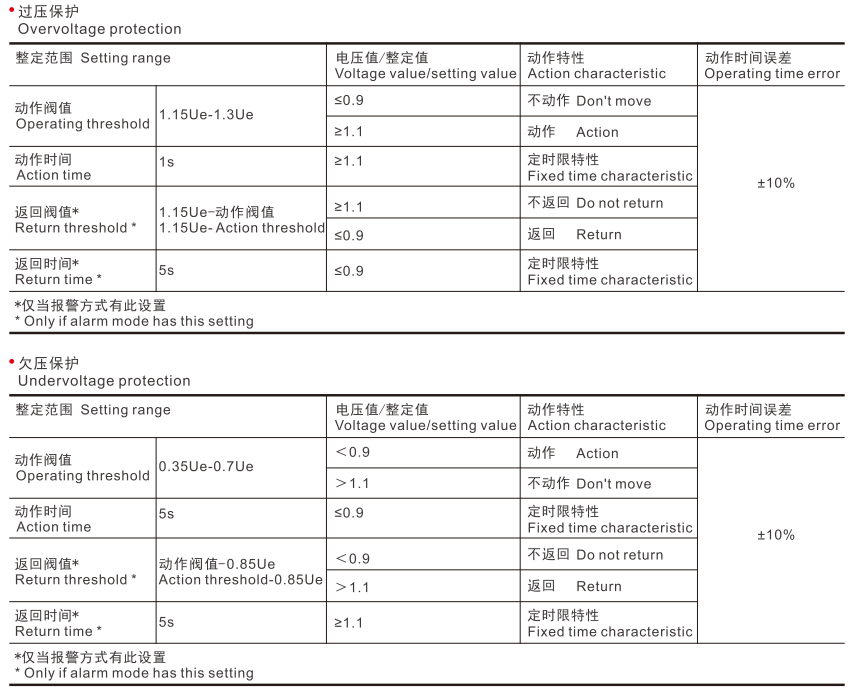

YFM2LE series residual current protection circuit breaker (hereinafter referred to as "circuitbreaker") is a leakage circuit breaker developed by our company with overload, short circuit.overvoltage, undervoltage, power side zero break, power side tripping, leakage, phase loss.mutation (special wave), reclosing and other tripping functions. lt is suitable for low-voltagepower grid with three-phase four-wire neutral line directly grounded.

  • YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
  • YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
  • YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
Inquire
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)
YFM2LE Residual Current Action Protection Circuit Breaker (Iintelligent type)

Specification Parameter

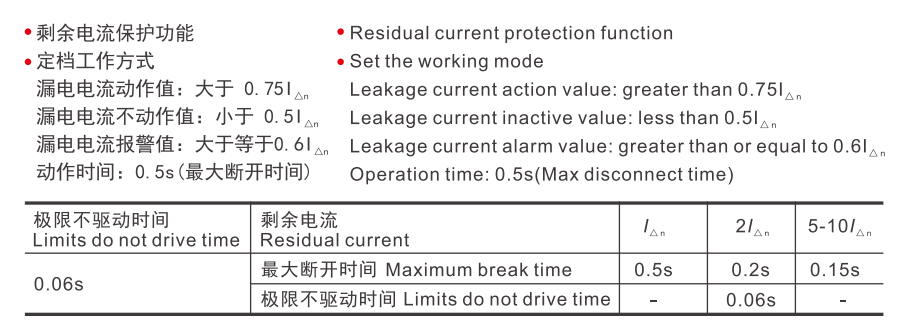

  • Residual  current  protection  function

  • Set the working mode

    Leakage current action value:greater than 0.751△

    Leakage current inactive value:less than 0.51△。

    Leakage current alarm value:greater than or equal to 0.61△

    Operation  time:0.5s(Max  disconnect  time)


Limits do not drive timeResidual current  /△n21△n5-10/△n
0.06sMaximum break time0.5s0.2s0.15s
Limits do not drive time  -0.06s-

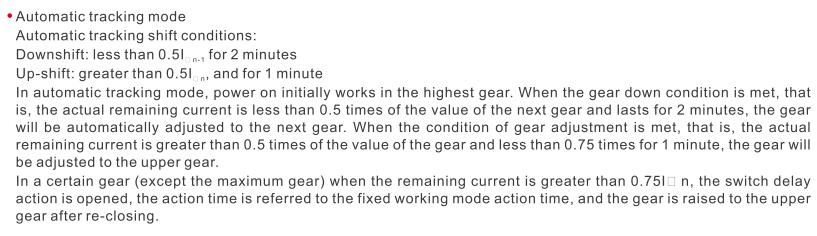

  • Automatie tracking mode

Automatic tracking shift conditions:

Downshift:less than 0.5l.for 2 minutes

Up-shift: greater than 0.5l., and for i minute

In automatic tracking mode, power on initially works in the highest gear. When the gear down condition is met, thatis, the actual remaining current is less than 0.5 times of the value of the next gear and lasts for 2 minutes, the gearwill be automatically adjusted to the next gear, When the condition of gear adjustment is met, that is, the actualremaining current ls greater than 0.5 times of the value ofthe gear and less than 0.75 times for 1 minute, the gear wilbe adjusted to the upper gear.

In a certain gear (except the maximum gear) when the remaining current is greater than 0.75l n, the switch delayaction is opened, the action time is referred to the fixed working mode action time, and the gear is raised to the uppergear aiterre-closing.

  • Performance index

Resldual current measurement accuracy: error less than +5%

Residual current protection accuracy: error less than +10%

Operation time accuracy: +10%

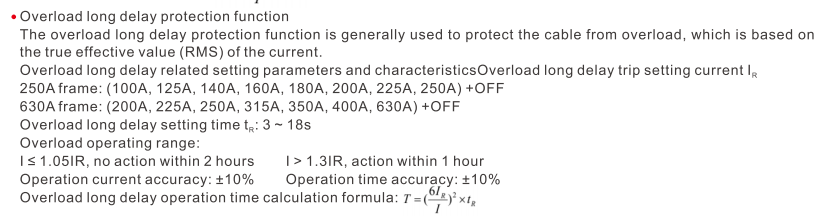

  • Overloadlong delay protection function

The overload long delay protection function is generally used to protect the cable from overload, which is based onthe true effective value(RMS) of the current.

Overload long delay related setting parameters and characteristicsOverload long dalay trip satting current l.

250Aframe:(100A,125A,140A,160A,180A,200A.225A.250A)+OFF

630A frame:(200A,225A,250A315A,350A,400A.630A)+0FFOverloadlongdelaysetting time t.:3-18s

overload operatingrange:

s1.05lR,no action within 2 hours

I>1.3lR,action within 1 hour

Operation currentaccuracy: +10%

Operation time accuracy: ±10%

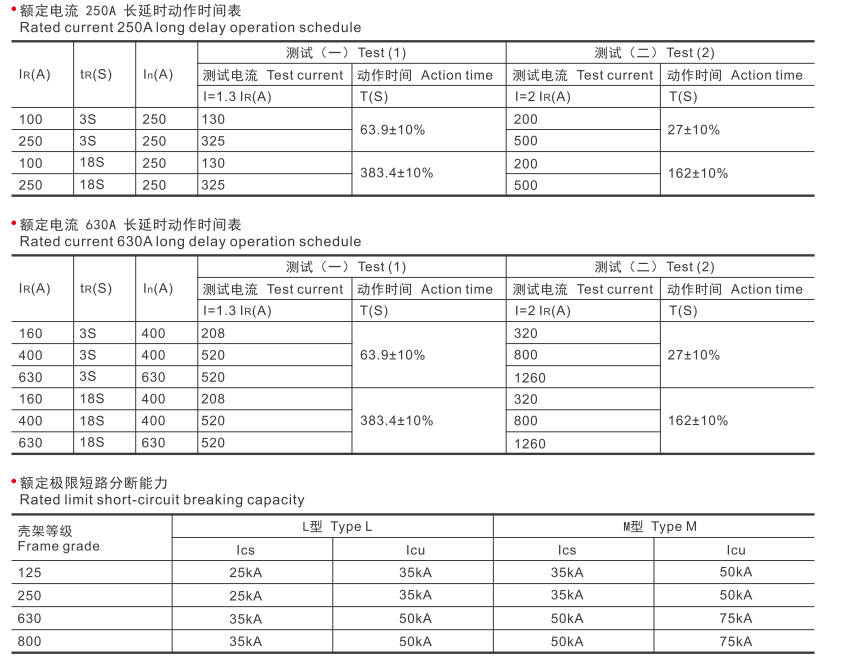

  • Rated current 250Along delay operation schedule

IR(A)tR(S)In(A)Test(1)Test(2)
Test currentAction timeTest currentAction time
I=1.3  IR(A)T(S)I=2  IR(A)T(S)
100 3S250 130 63.9±10%200 27±10%
250 3S250 325 500
100 18S250 130 383.4±10%200 162±10%
250 18S250 325 500
  • Rated current 630Along delay operation schedule

IR(A)tR(S)In(A)Test(1)Test(2)
Test currentAction timeTest currentAction time
I=1.3  IR(A)T(S)I=2  IR(A)T(S)
160 3S400 208 63.9±10%320 27±10%
400 3S400 520 800
630 3S630 520 1260
160 18S400 208 383.4±10%320 162±10%
400 18S400 520 800
630 18S630 520 1260
  • Rated limit short-circuit breaking capacity

Frame gradeType LType M
IcsIcuIcsIcu
125 25kA35kA35kA50kA
250 25kA35kA35kA50kA
630 35kA50kA50kA75kA
800 35kA50kA50kA75kA

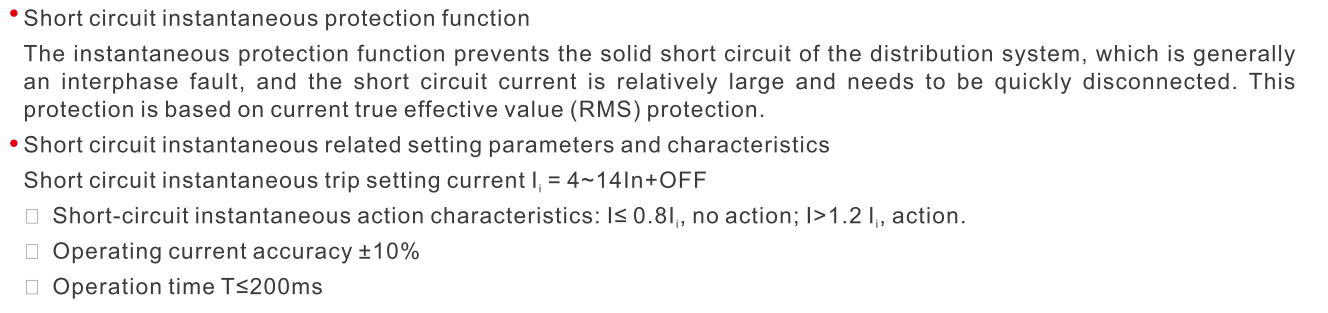

  • Short circuit instantaneous protection function

The instantaneous protection function prevents the solid short circuit of the distribution system, which is generallyan interphase fault, and the short circuit current is relatively large and needs to be quickly disconnected. Thisprolection is based on current true effective value (RMS) prolection.Short clrcuit instantaneous related setting parameters and characteristicsShort circuitinstantaneous trip setting current l, = 4~14In+ОFF

  • Short-circuit instantaneous action characteristics: ls 0.8l, no action; l>1.2 l. action.Operating current accuracy +10%

Operation time Ts200ms


Product Advantage

lt is used to providecontact protection against the danger of electric shock to equipment and people, and can alsobe used for grounding faults of lines or electrical equipment.

Product Advantage

Reference for the preparation of this technical specification:

GB14048.2-2008 Low voltage switchgear and control equipment

GB/T22710-2008 Electronic controller for low voltage circuit breakers

GB/T22387-2008 Residual current operating relay

GB/Z 6829-2008 Residual current action protector General requirements

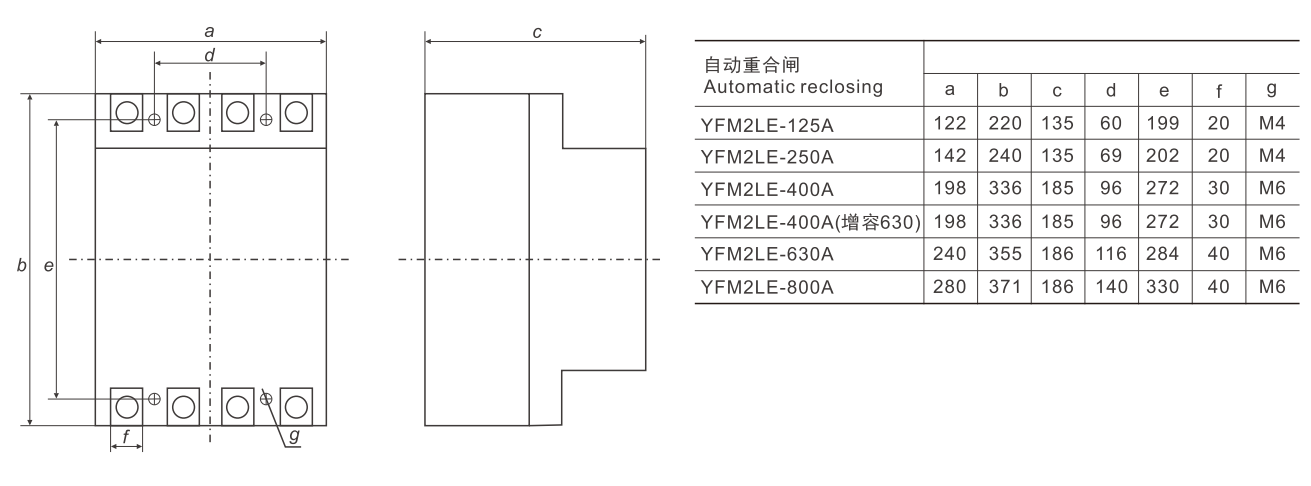

Outline And Mounting Dimensions

Automatic reclosing
abCdefg
YFM2LE-125A122 220 135 60 199 20 M4
YFM2LE-250A142 240 135 69 202 20 M4
YFM2LE-400A198 336 185 96 272 30 M6

YFM2LE-400A

(Capacity increase 630A)

198 336 185 96 272 30 M6
YFM2LE-630A240 355 186 116 284 40 M6
YFM2LE-800A280 371 186 140 330 40 M6
