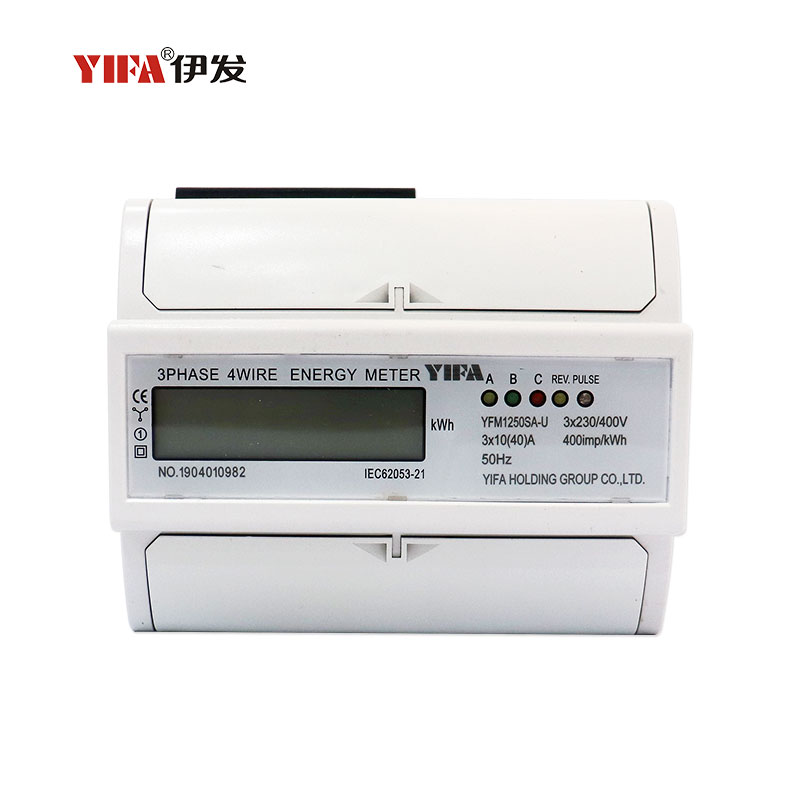

DTS Series Three-phase electricity meter
This series of instruments adopts high-definition segment LCD display, which can set parameters such as clock and rate period, and has the power pulse output function; it can exchange the actual data with the upper computer through RS485 communication interface to realize the remote meter reading and closing functions of the electricity meter, which greatly facilitates the automatic management of electricity consumption.

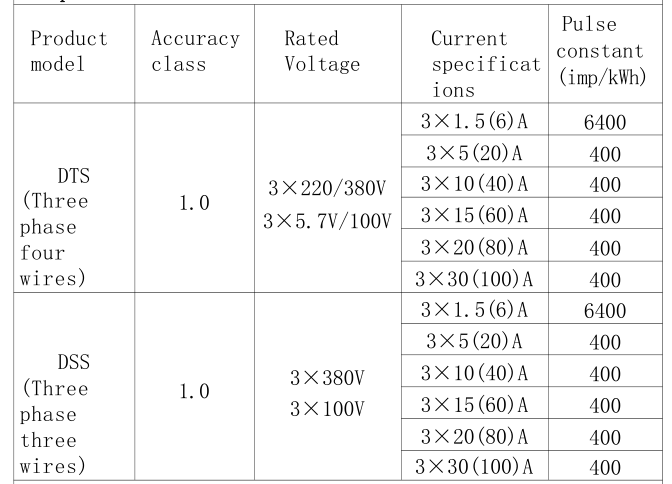

Specification Parameter
| Product model | Accuracy class | Rated Voltage | Current specificat ions | Pulse constant (imp/kWh) |
| DTS(Three phase four wires) | 1.0 | 3×220/380V 3×5.7V/100V | 3×1.5(6)A | 6400 |
| 3×5(20)A | 400 | |||
| 3×10(40)A | 400 | |||
| 3×15(60)A | 400 | |||
| 3×20(80)A | 400 | |||
| 3×30(100)A | 400 | |||
| DSS(Three phase three wires) | 1.0 | 3×380V 3×100V | 3×1.5(6)A | 6400 |
| 3×5(20)A | 400 | |||
| 3×10(40)A | 400 | |||
| 3×15(60)A | 400 | |||
| 3×20(80)A | 400 | |||
| 3×30(100)A | 400 |
Product Advantage
DTSU5333 series rail-mounted three-phase four-wire electronic energy meters are developed by our companyusing microelectronics technology and imported large-scale integrated circuits, applying advanced digitalsampling processing technology and SMT technology and other advanced technologies
1. Advanced technology application
2. World-leading design
3. High-precision measurement
4. Intuitive display
5. Excellent performance
6. Easy installation

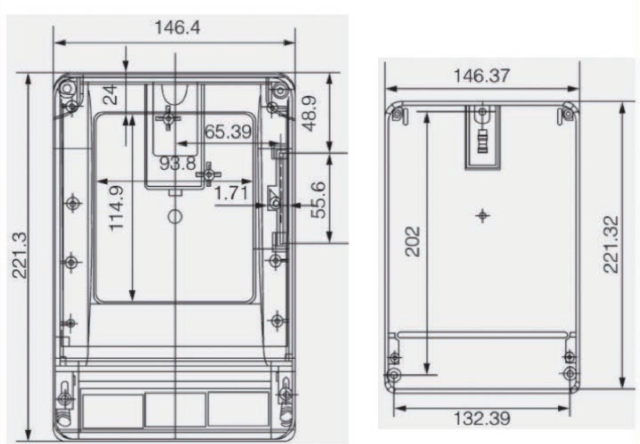

Outline And Mounting Dimensions
