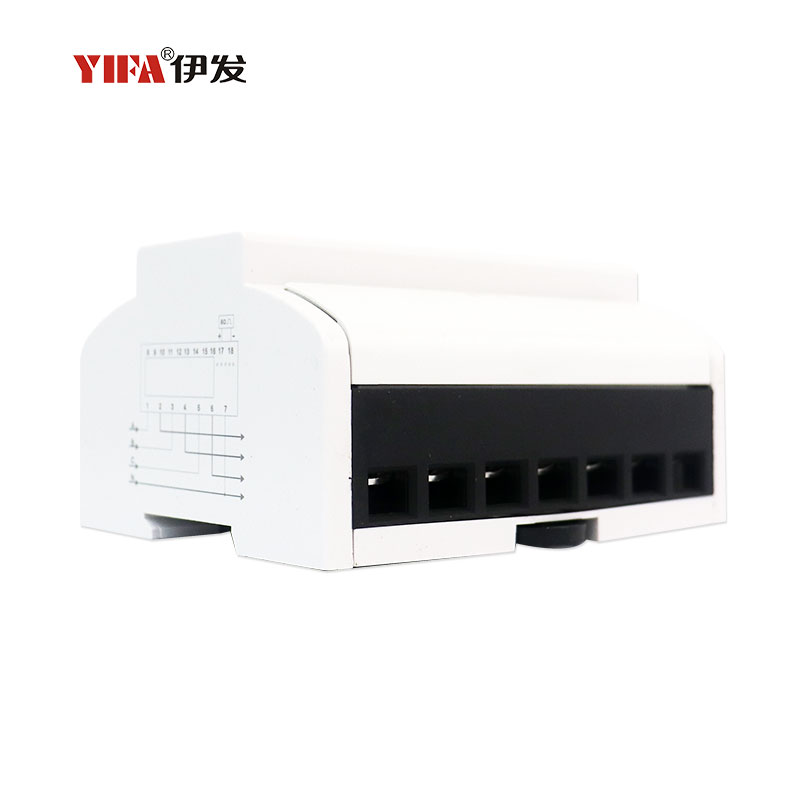

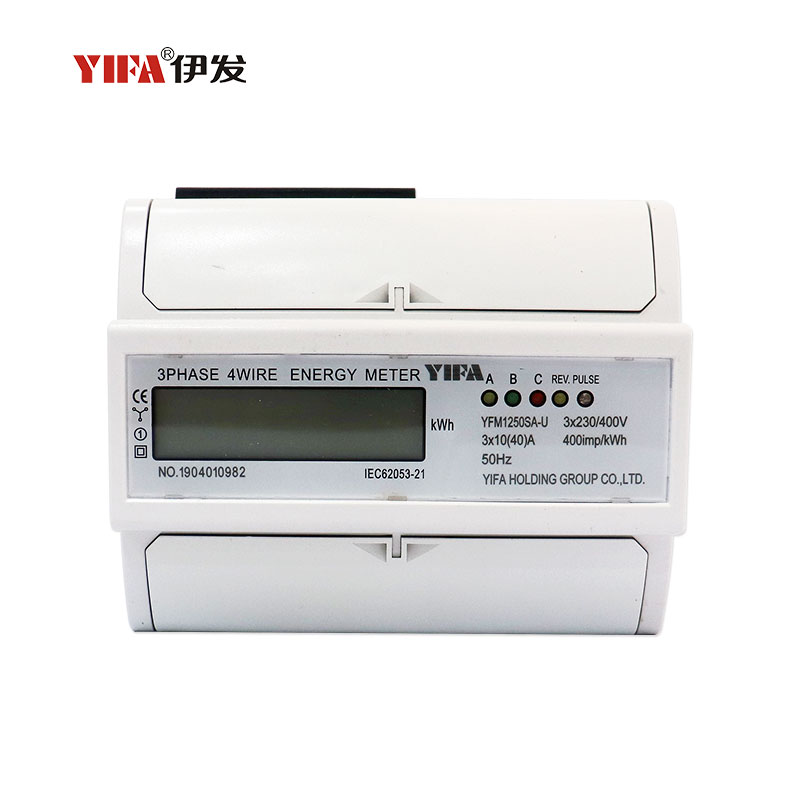

DTS Series Three-phase electricity meter
This series of instruments adopts high-definition segment LCD display, which can set parameters such as clock and rate period, and has the power pulse output function; it can exchange the actual data with the upper computer through RS485 communication interface to realize the remote meter reading and closing functions of the electricity meter, which greatly facilitates the automatic management of electricity consumption.
Specification Parameter
| Product model | Accuracy class | Rated Voltage | Current specificat ions | Pulse constant (imp/kWh) |
| DTS(Three phase four wires) | 1.0 | 3×220/380V 3×5.7V/100V | 3×1.5(6)A | 6400 |
| 3×5(20)A | 400 | |||
| 3×10(40)A | 400 | |||
| 3×15(60)A | 400 | |||
| 3×20(80)A | 400 | |||
| 3×30(100)A | 400 | |||
| DSS(Three phase three wires) | 1.0 | 3×380V 3×100V | 3×1.5(6)A | 6400 |
| 3×5(20)A | 400 | |||
| 3×10(40)A | 400 | |||
| 3×15(60)A | 400 | |||
| 3×20(80)A | 400 | |||
| 3×30(100)A | 400 |
Outline And Mounting Dimensions
