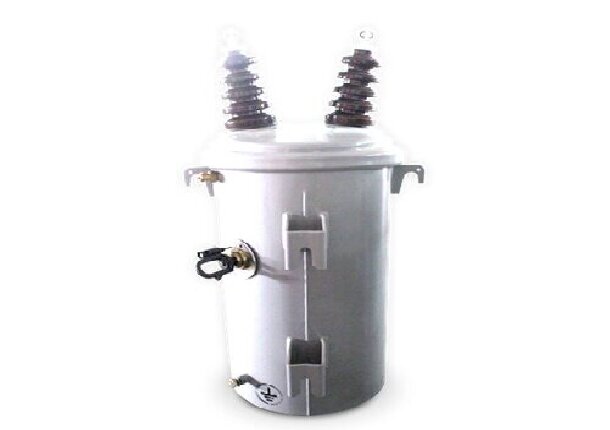

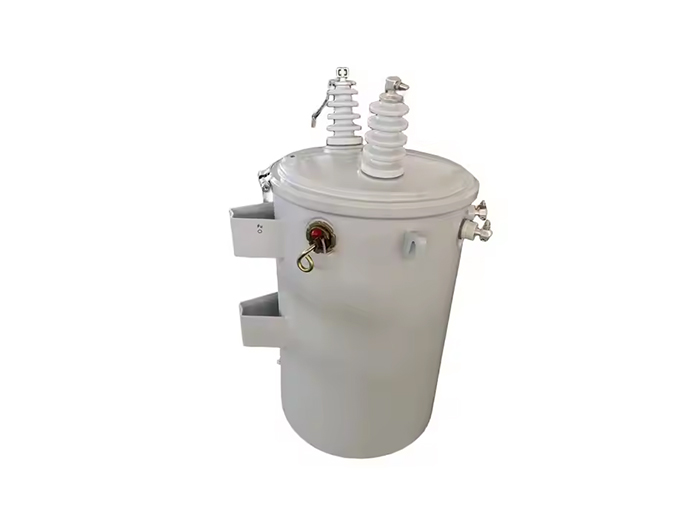

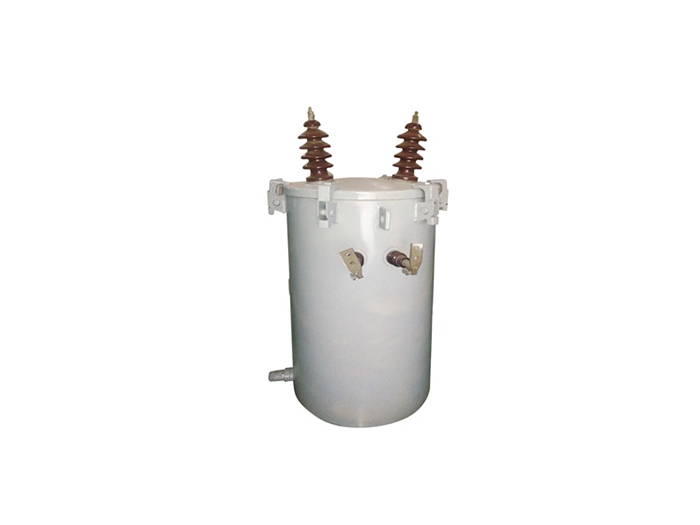

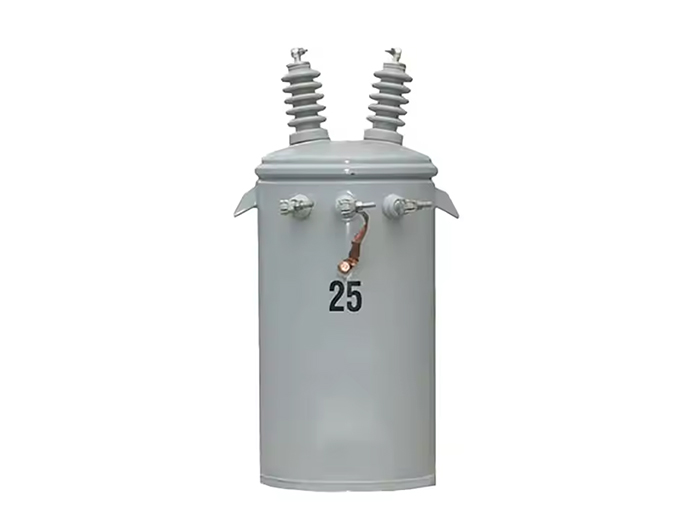

Single-phase Oil Immersed Transformer

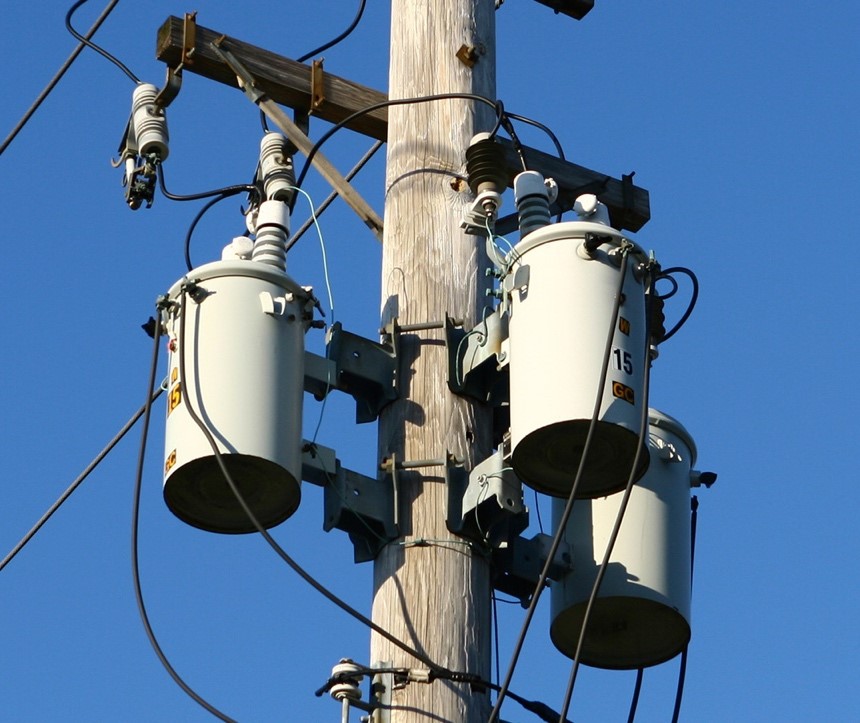

The single phase oil filled pole mounted distribution transformers are specifically designed for the decentralizati distribution network of servicing residential overhead distribution loads of town and countryside. They are also suitable forlight and diversified power applications These transformers are designed for the application conditions normally encounteredon electric utility power distribution systems.

Fers 2 basic transfomer types

Conventional type and Complete Self Protecting type, and for the transformer core.2 types materials are available;C.R.G. O word core and amorphous metal Core.


Inquire
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer
Single-phase Oil Immersed Transformer

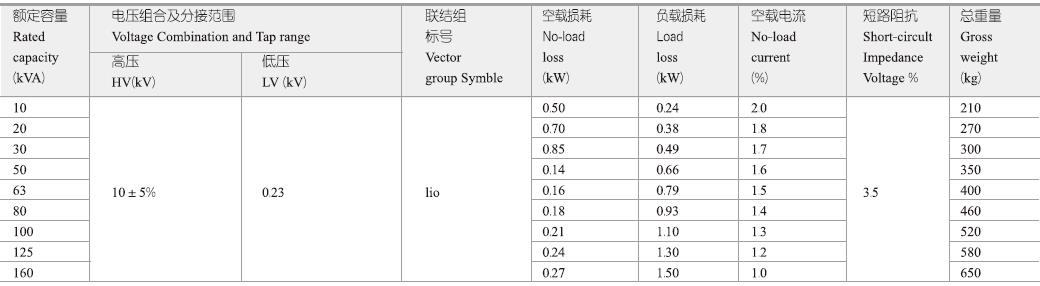

Specification Parameter

Rated
capacity
(kVA)
Voltage Combination and Tap rangeVector group
Symbol
No-load
loss(kW)
Load
loss(kW)
No-load
current(%)
Short-circult
Impedance
voltage(%)

Gross weight(kg)
HV(kV)LV(kV)
10 10±5%023 lio0.50 024 2.0 3.5 210
20 0.70 0.38 1.8 270
30 085 049 1.7 300
50 0.14 0.66 1.6 350
63 0.16 0.79 1.5 400
80 0.18 093 1.4 460
100 021 1.10 1.3 520
125 0.24 130 1.2 580
160 027 1.50 1.0 650

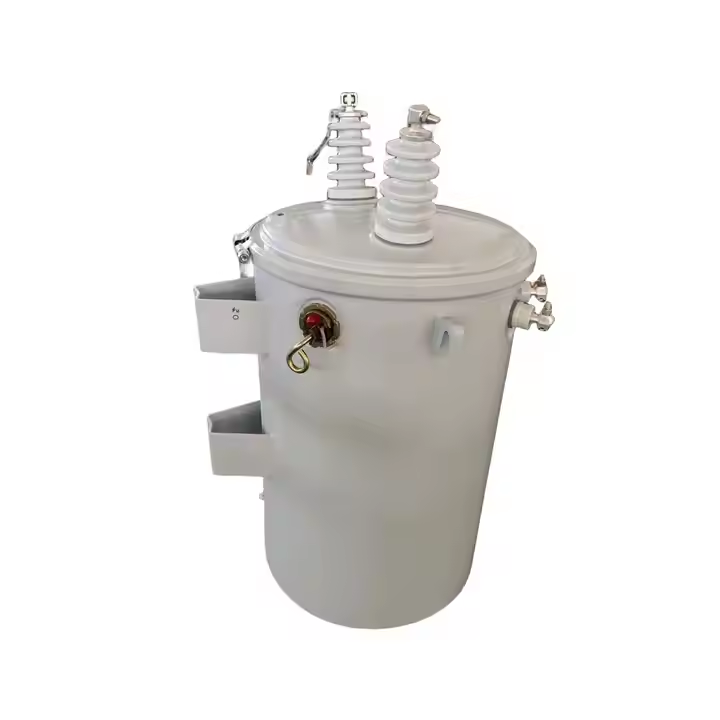

Product Advantage

Product Advantage

1. Simple structure‌, reducing manufacturing complexity and maintenance requirements


2‌.Small size‌, enabling easy installation and portability in confined spaces


3. Low losses‌, enhancing energy efficiency and reducing operational costs


4‌.Ideal for low-load scenarios‌, such as residential lighting, small motors, or rural distribution systems where demand is minimal
