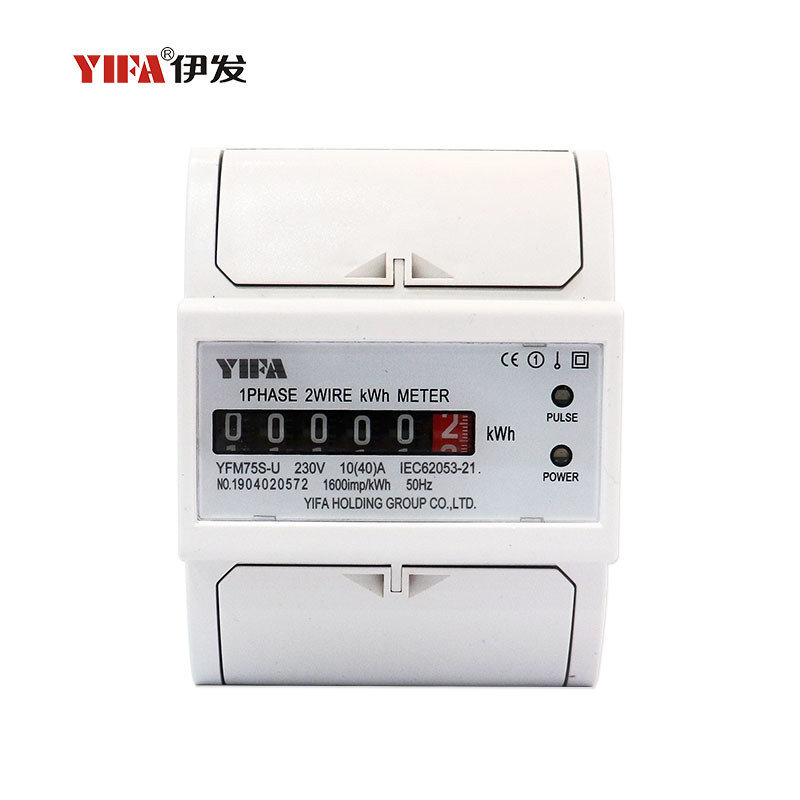

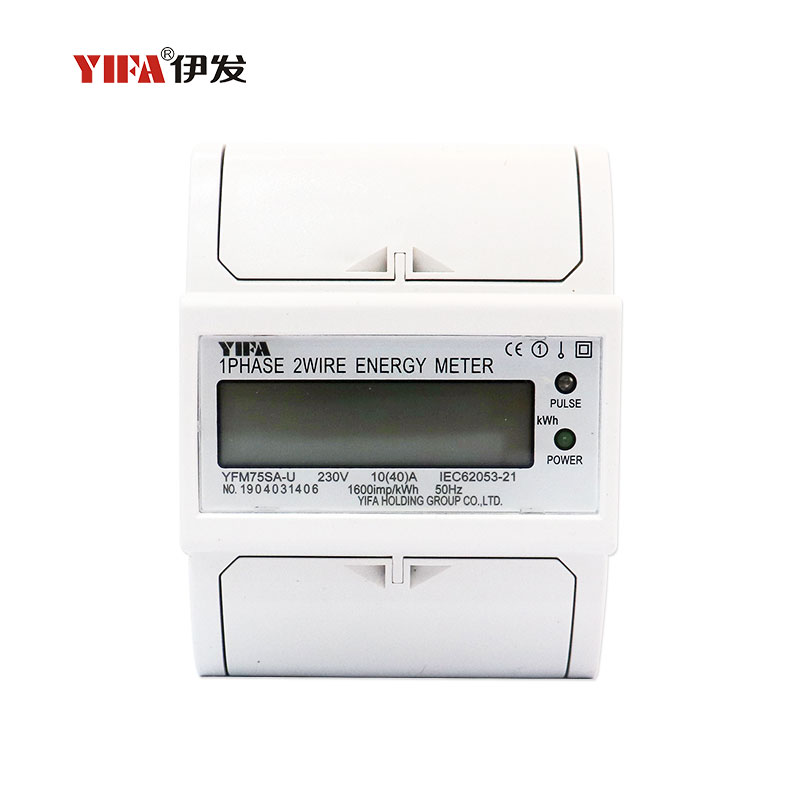

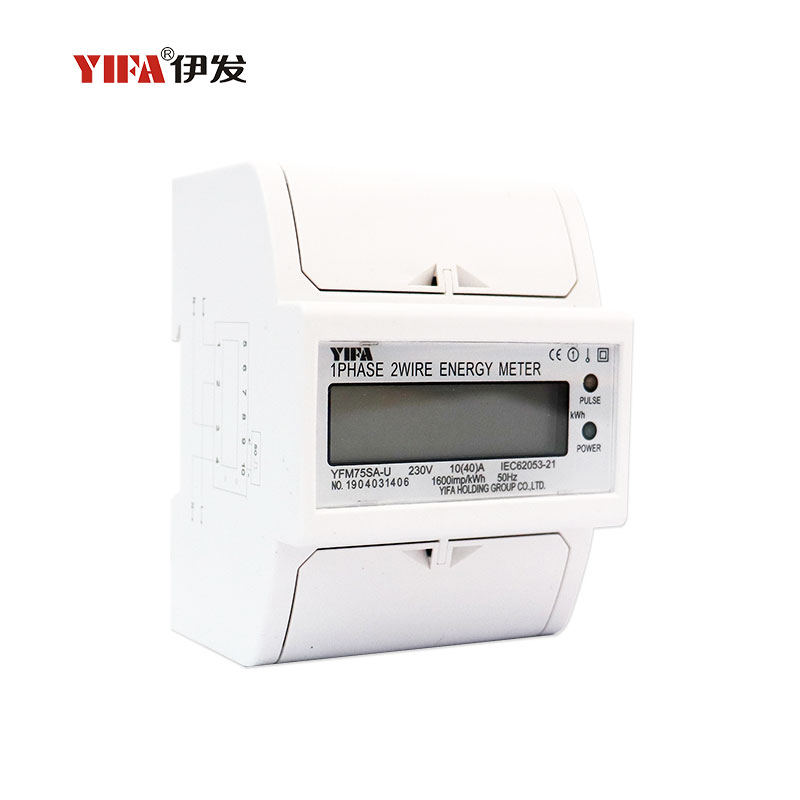

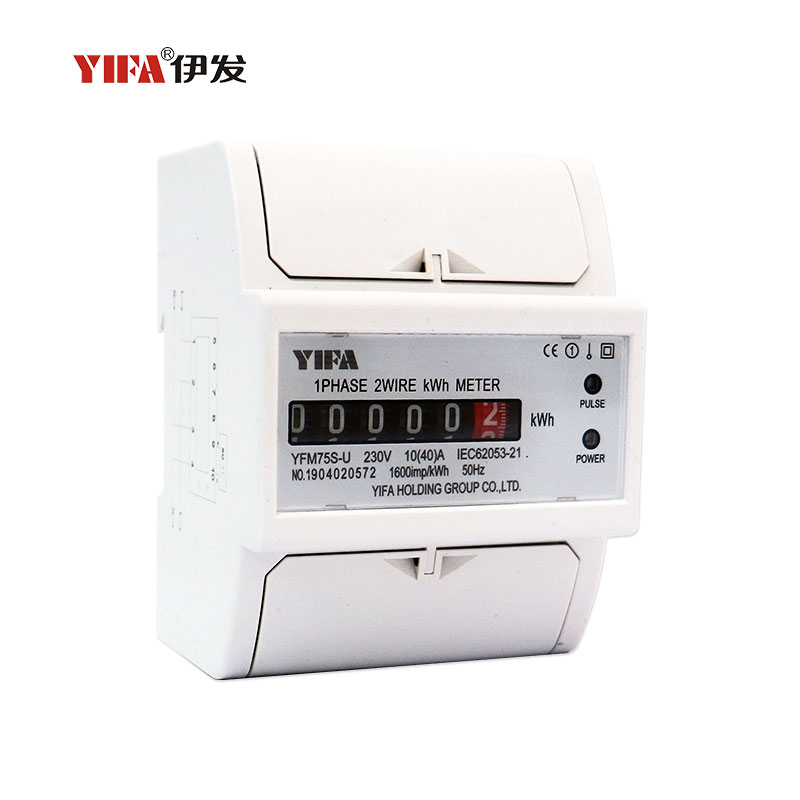

DDS Series Single phase electricity meter
This series of instruments adopts high defini tionsegment LCD display, which can set clock, rate period and have power pulse output function:NB-loT, WiFi, GPRS andRS485 communication interfaces exchange the actual datawith the upper computer, realizing the remote reading ofthe meter, meter and closing,and the remote prepaidrecharge function, which greatly facilitates the automaticmanagement of electricityconsumption.

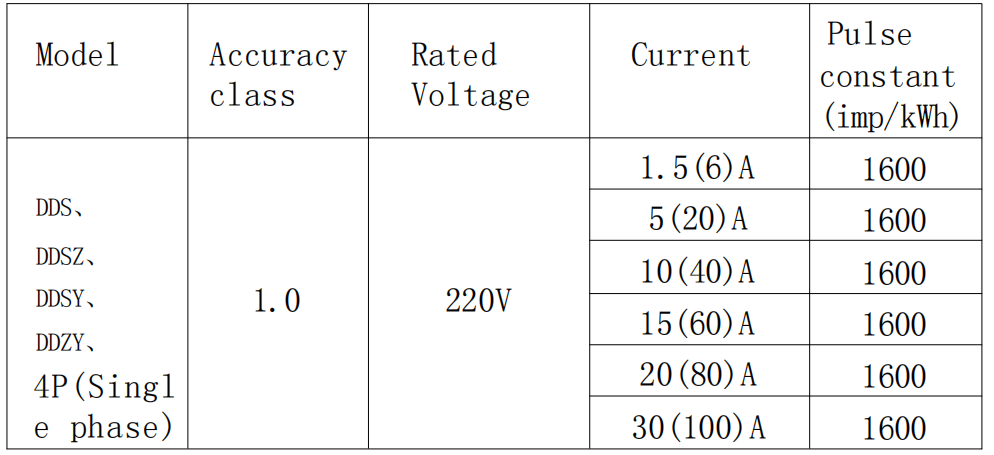

Specification Parameter
| Model | Accuracy class | Rated Voltage | Current | Pulse constant (imp/kWh) |
| DDS、 DDSZ、 DDSY、 DDZY、 4P(Single phase) | 1.0 | 220V | 1.5(6)A | 1600 |
| 5(20)A | 1600 | |||
| 10(40)A | 1600 | |||
| 15(60)A | 1600 | |||
| 20(80)A | 1600 | |||
| 30(100)A | 1600 |
Product Advantage
The rail-mounted single-phase electronic energy meter is developed by our company usingmicroelectronic technology and imported large-scale integrated circuits, applying advanced digital samplingprocessing technology and SM'T technology and other advanced technologies. lt has a new type of single-phasetwo-wire active energy meter with completely independent intellectual property rights. lts performance fullycomplies with the relevant technical requirements of GB/T17215.321-2008 (Class 1 and Class 2 static AC activeenergy meters)

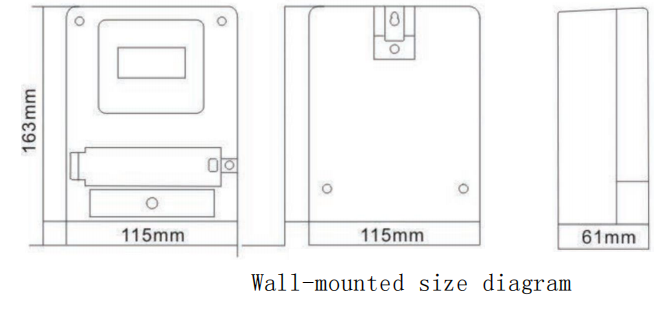

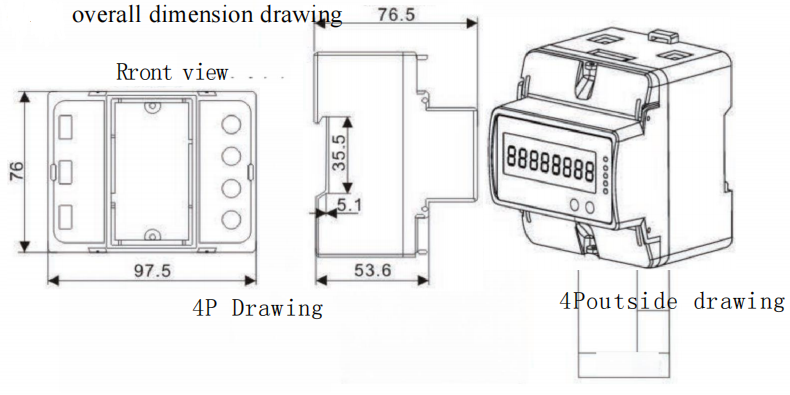

Outline And Mounting Dimensions
