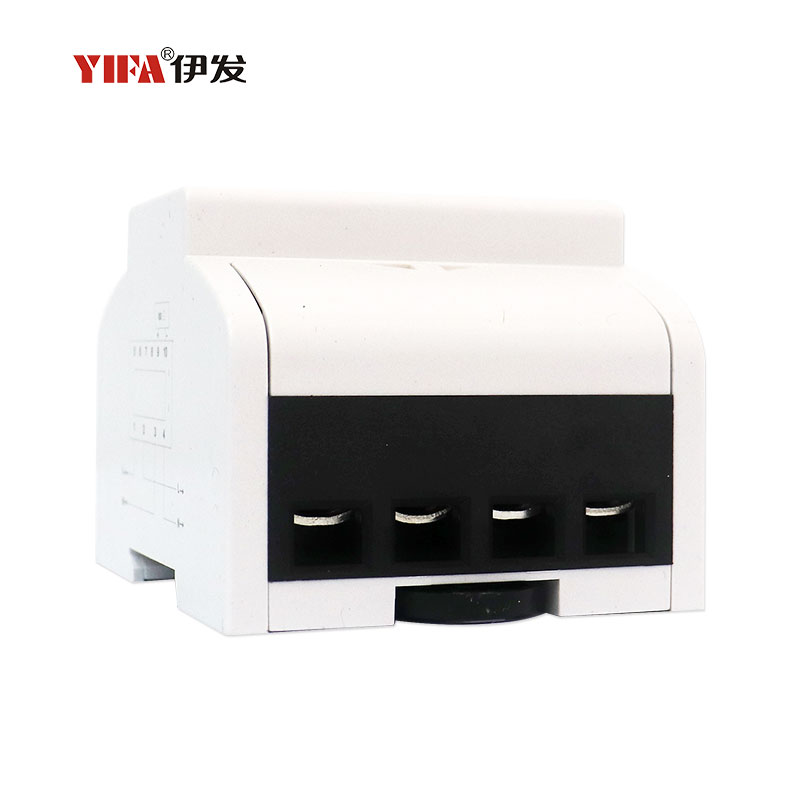

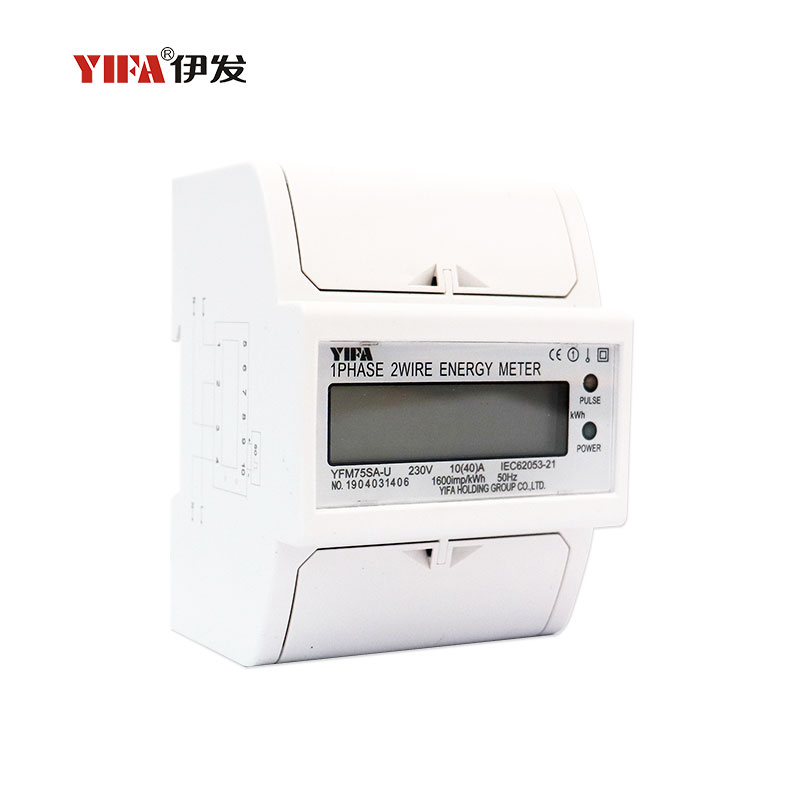

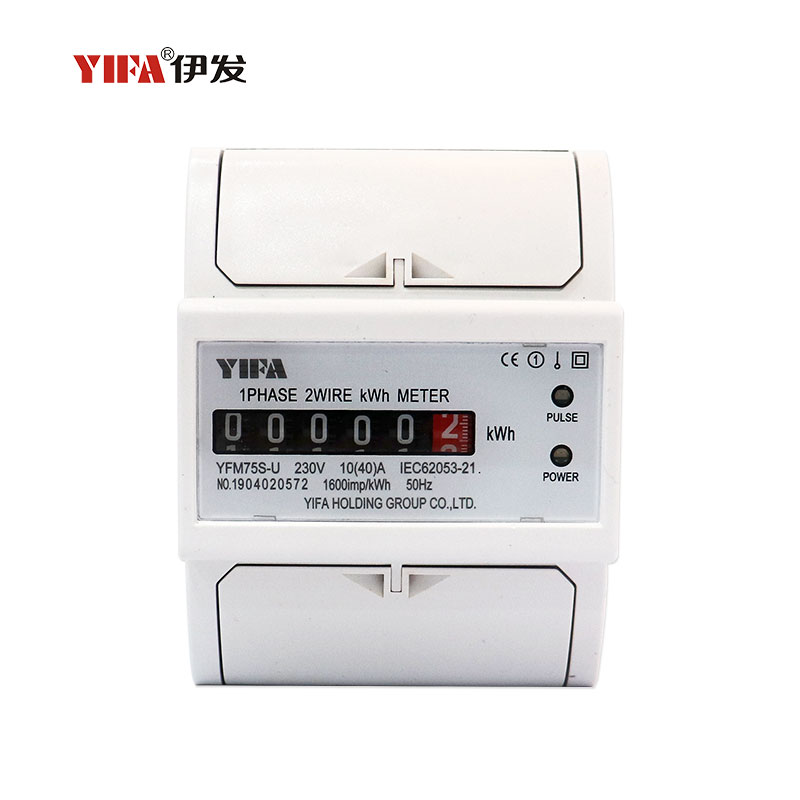

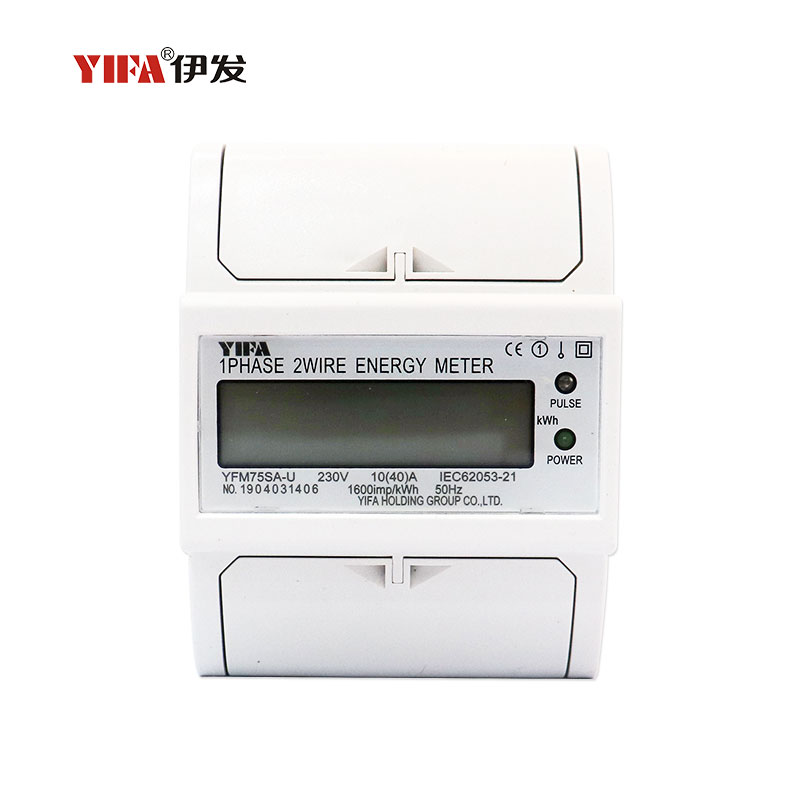

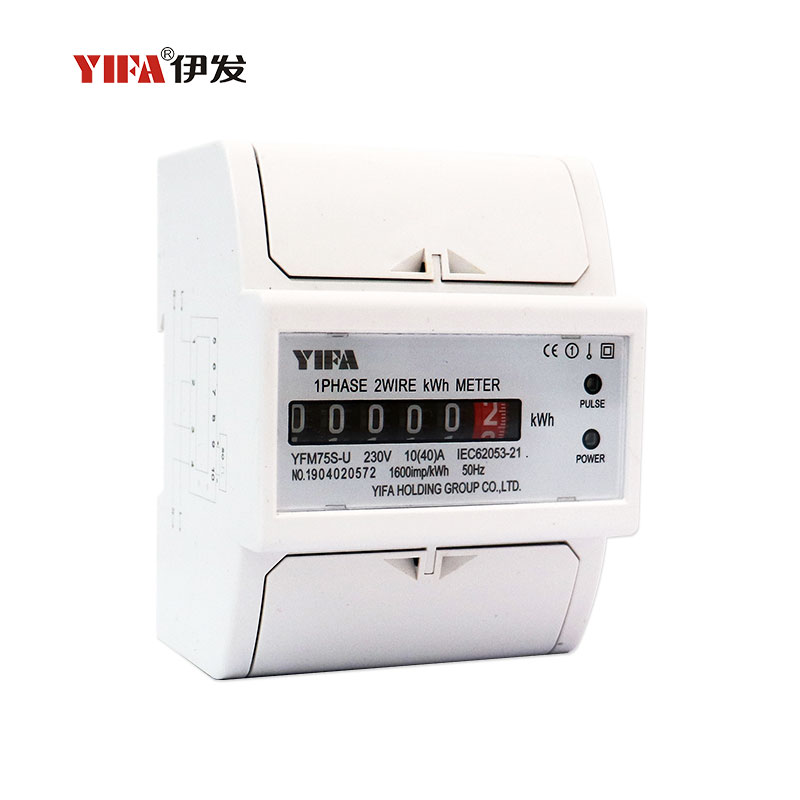

DDS Series Single phase electricity meter
This series of instruments adopts high definition segment LCD display, which can set clock, rate period and have power pulse output function:NB-loT, WiFi, GPRS andRS485 communication interfaces exchange the actual datawith the upper computer, realizing the remote reading ofthe meter, meter and closing,and the remote prepaid recharge function, which greatly facilitates the automatic management of electricity consumption.
Specification Parameter
| Model | Accuracy class | Rated Voltage | Current | Pulse constant (imp/kWh) |
| DDS、 DDSZ、 DDSY、 DDZY、 4P(Single phase) | 1.0 | 220V | 1.5(6)A | 1600 |
| 5(20)A | 1600 | |||
| 10(40)A | 1600 | |||
| 15(60)A | 1600 | |||
| 20(80)A | 1600 | |||
| 30(100)A | 1600 |

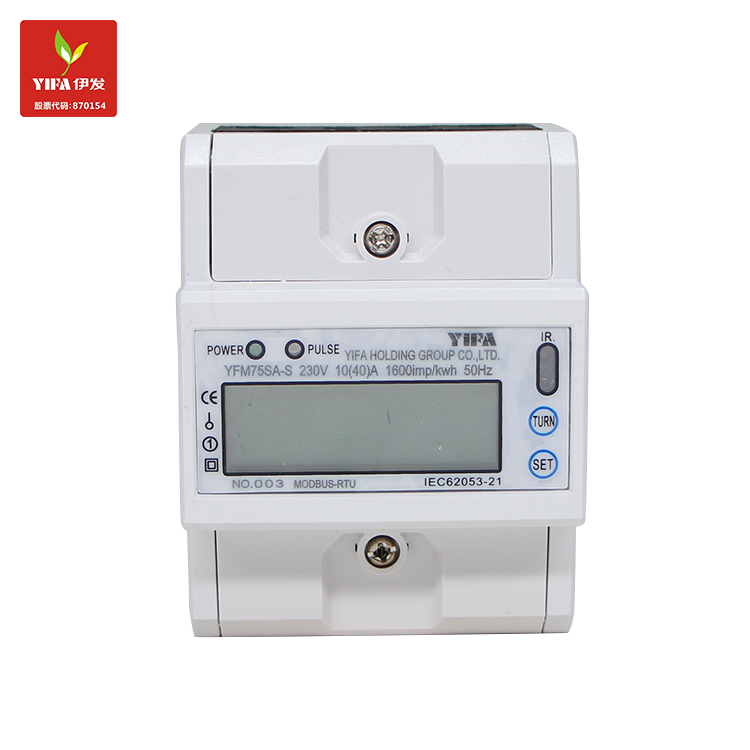

Product Advantage
The rail-mounted single-phase electronic energy meter is developed by our company using microelectronic technology and imported large-scale integrated circuits, applying advanced digital sampling processing technology and SM'T technology and other advanced technologies. lt has a new type of single-phase two-wire active energy meter with completely independent intellectual property rights. lts performance fully complies with the relevant technical requirements of GB/T17215.321-2008 (Class 1 and Class 2 static AC active energy meters)
The energy meter can accurately and directly measure the active energy consumption of the load in the 50Hz or 60Hz single-phase AC power grid. The meter displays the active power by an 8-digit LCD display. There are farinfrared and RS485 communication modules. lt has the following characteristics: good reliability, small size, lightweight,beautiful appearance,easy installation, etc.
Outline And Mounting Dimensions
