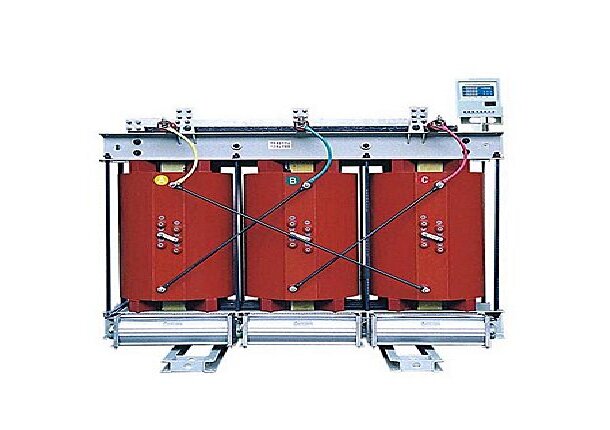

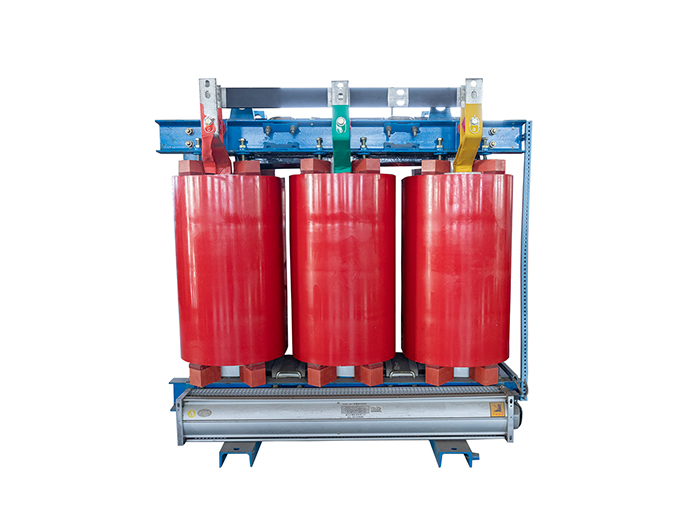

SC(ZB)10 Series 10KV Dry Transformer
Dry-type transformers use epoxy resin cast insulation, eliminating fire hazards and oil leaks. They offer high safety, low maintenance, and environmental friendliness. Ideal for indoor installations with superior moisture resistance

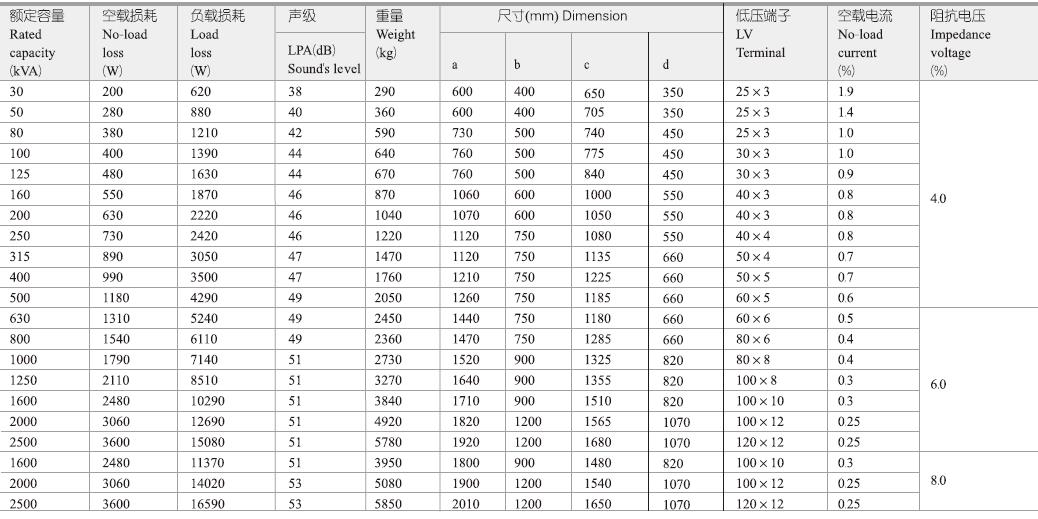

Specification Parameter
GB/T 10228 GB 1094.11-2007
Rated HV: 10(10.5,11,6,6.3,6.6)KV
Rated LV: 0.4KV
Tap connection range: Non-exciting regulation(±5%, ±2×2.5%）
On-load regulation(±4×2.5%）
Vector group: Dyn 11 or Yyn0
Insulation lever: Ll 175AC35/AC5
| Rated capacity (KVA) | No-load loss(W) | Load loss (W | LPA(db) Sounds level | Weight (kg) | Dimension(mm) | LV Terminal | No-load current(%) | Impedance voltage (%) | |||
| a | b | c | d | ||||||||
| 30 | 200 | 620 | 38 | 290 | 600 | 400 | 650 | 350 | 25×3 | 1.9 | 40 |
| 50 | 280 | 880 | 40 | 360 | 600 | 400 | 705 | 350 | 25×3 | 14 | |
| 80 | 380 | 1210 | 42 | 590 | 730 | 500 | 740 | 450 | 25×3 | 1.0 | |
| 100 | 400 | 1390 | 44 | 640 | 760 | 500 | 775 | 450 | 30×3 | 1.0 | |
| 125 | 480 | 1630 | 44 | 670 | 760 | 500 | 840 | 450 | 30×3 | 09 | |
| 160 | 550 | 1870 | 46 | 870 | 1060 | 600 | 1000 | 550 | 40×3 | 08 | |
| 200 | 630 | 2220 | 46 | 1040 | 1070 | 600 | 1050 | 550 | 40×3 | 08 | |
| 250 | 730 | 2420 | 46 | 1220 | 1120 | 750 | 1080 | 550 | 40×4 | 08 | |
| 315 | 890 | 3050 | 47 | 1470 | 1120 | 750 | 1135 | 660 | 50×4 | 07 | |
| 400 | 990 | 3500 | 47 | 1760 | 1210 | 750 | 1225 | 660 | 50×5 | 0.7 | |
| 500 | 1180 | 4290 | 49 | 2050 | 1260 | 750 | 1185 | 660 | 60×5 | 06 | |
| 630 | 1310 | 5240 | 49 | 2450 | 1440 | 750 | 1180 | 660 | 60×6 | 0.5 | 60 |
| 800 | 1540 | 6110 | 49 | 2360 | 1470 | 750 | 1285 | 660 | 80×6 | 04 | |
| 1000 | 1790 | 7140 | 51 | 2730 | 1520 | 900 | 1325 | 820 | 80×8 | 04 | |
| 1250 | 2110 | 8510 | 51 | 3270 | 1640 | 900 | 1355 | 820 | 100×8 | 03 | |
| 1600 | 2480 | 10290 | 51 | 3840 | 1710 | 900 | 1510 | 820 | 100×10 | 0.3 | |
| 2000 | 3060 | 12690 | 51 | 4920 | 1820 | 1200 | 1565 | 1070 | 100×12 | 025 | |
| 2500 | 3600 | 15080 | 51 | 5780 | 1920 | 1200 | 1680 | 1070 | 120×12 | 025 | |
| 1600 | 2480 | 11370 | 51 | 3950 | 1800 | 900 | 1480 | 820 | 100×10 | 03 | 80 |
| 2000 | 3060 | 14020 | 53 | 5080 | 1900 | 1200 | 1540 | 1070 | 100×12 | 025 | |
| 2500 | 3600 | 16590 | 53 | 5850 | 2010 | 1200 | 1650 | 1070 | 120×12 | 025 | |
Note: On-load regulation series tranefomer regulates the two data items as follows:1. Weight increase 100kg;
2.Transtormer fank aincree 650mm orface bincrease 750mm assigned by an-load switch.

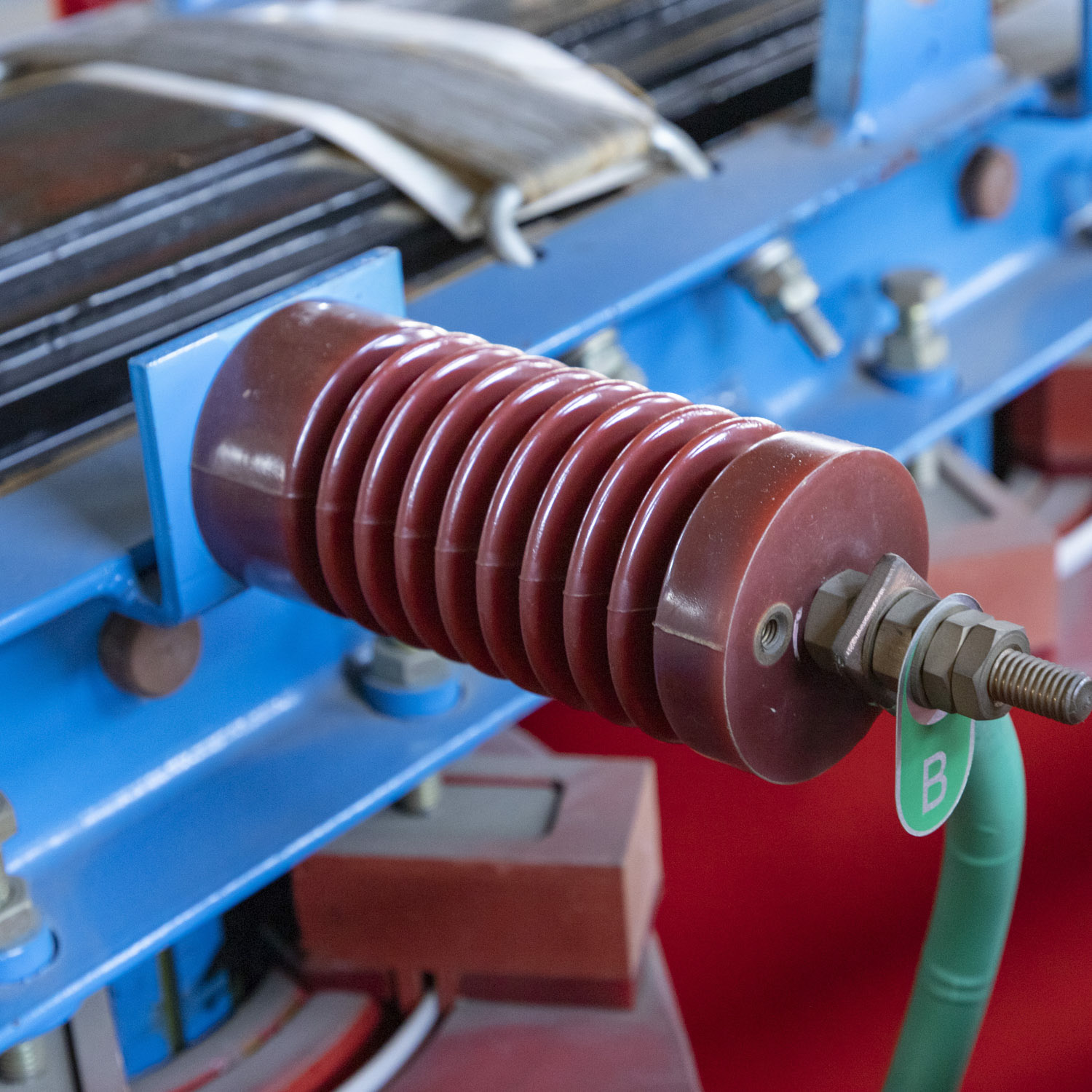

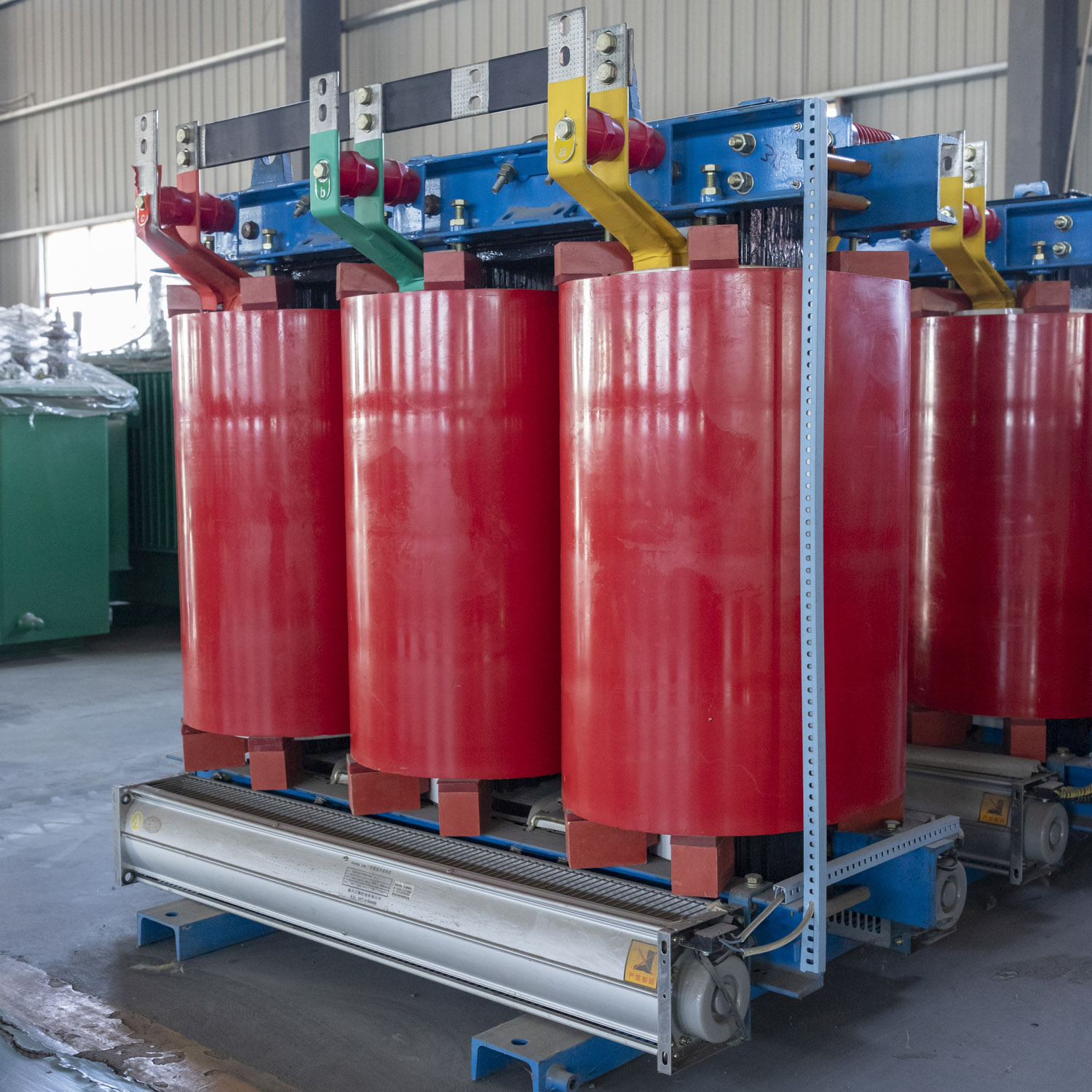

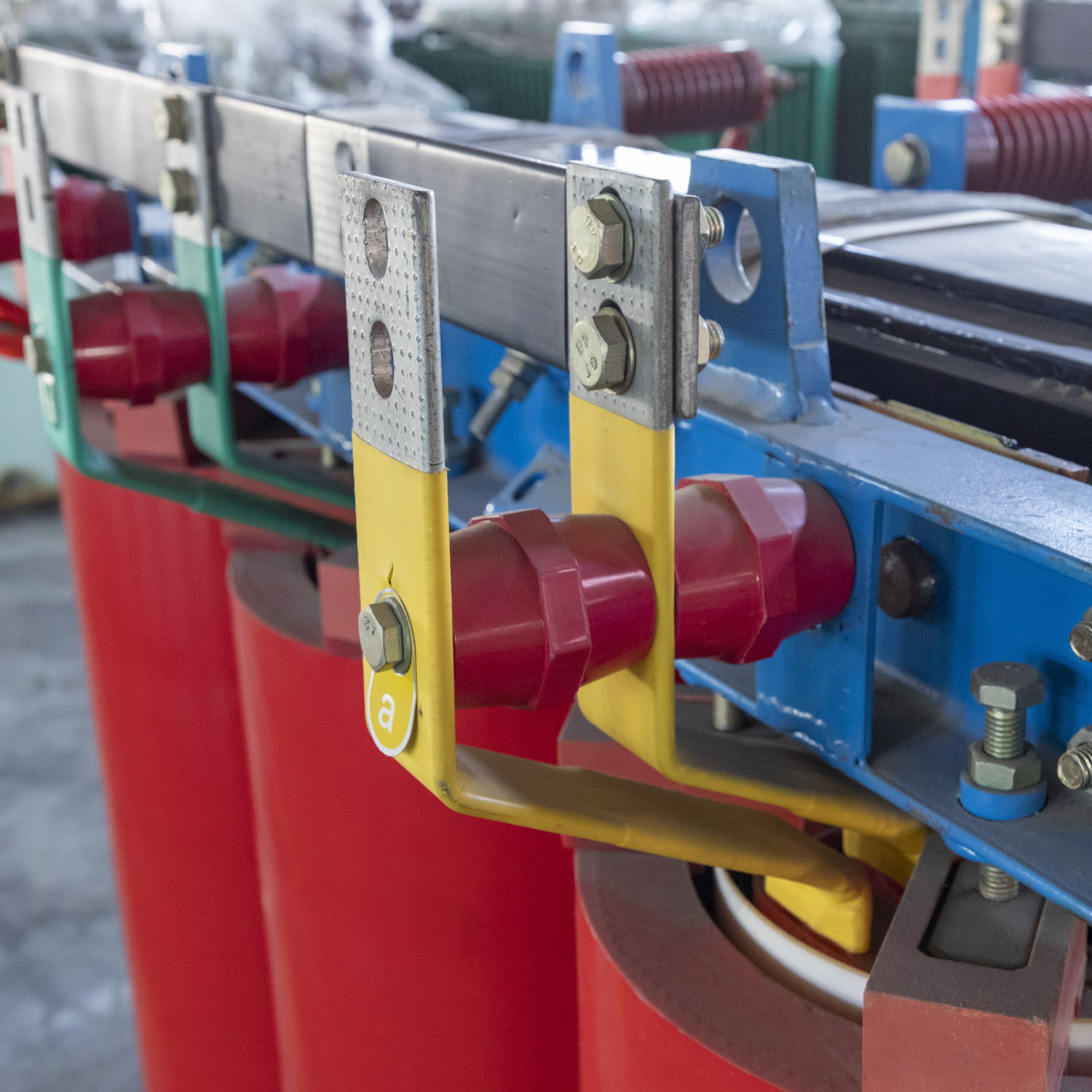

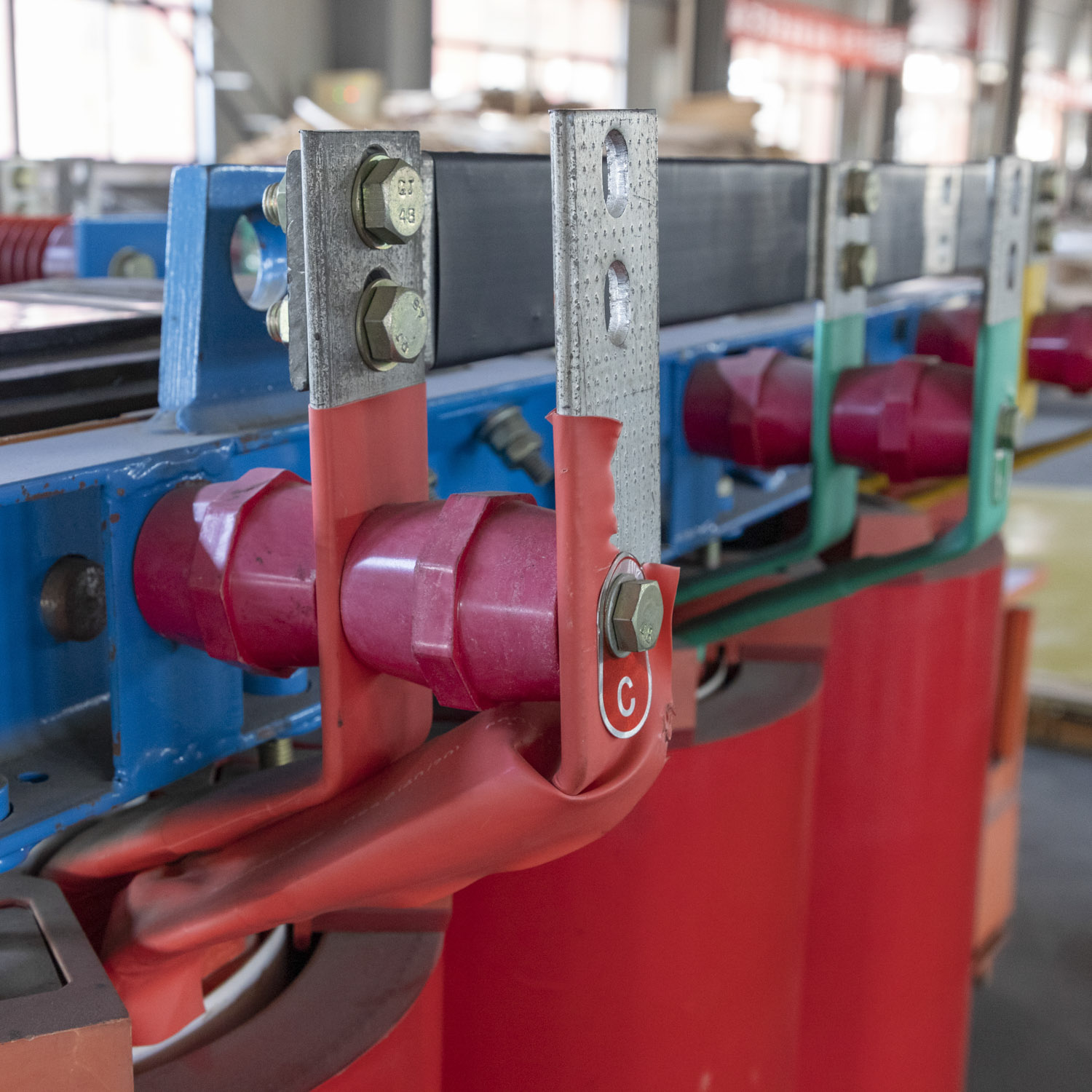

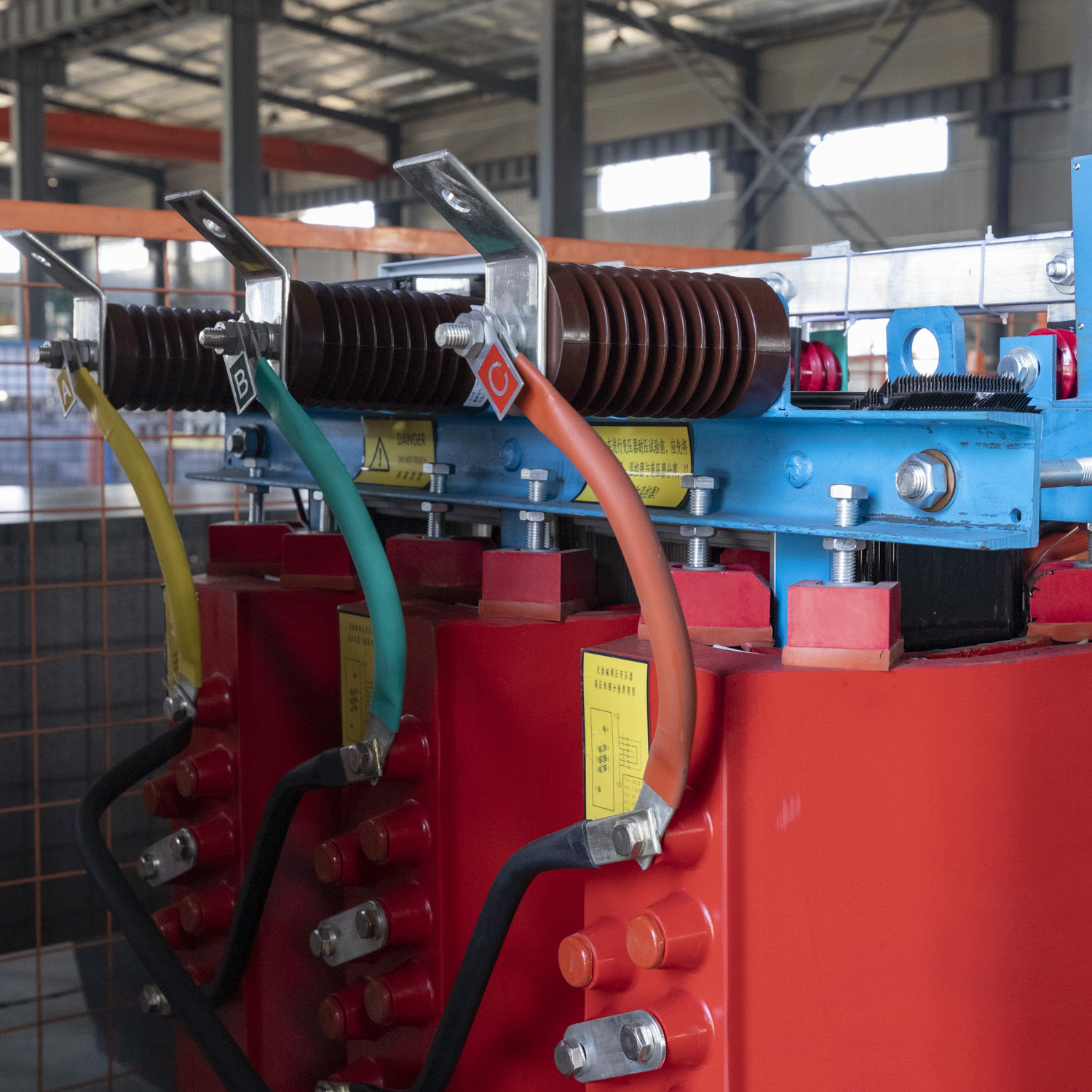

Product Advantage
High fire resistance: They use non-flammable insulation materials, reducing fire risks and preventing the spread of flames in case of faults or external fire sources.
Low loss and low noise: Designed with high-quality materials like cold-rolled silicon steel and advanced construction techniques, they minimize energy loss and operate quietly even under load.
Pollution-free and low maintenance: Without oil, they eliminate leakage issues, avoid environmental contamination from oil disposal, and require minimal upkeep or servicing.
Compact size and light weight: Their simplified structure and absence of oil allow for smaller footprints and easier handling, saving space and reducing installation costs.
Excellent insulation and durability: Featuring strong resistance to moisture, temperature fluctuations, and short circuits, they ensure reliable performance in humid or harsh conditions.
Environmental friendliness: Made from recyclable materials, they produce no toxic gases and align with sustainability goals by avoiding oil-related hazards.
Versatile installation: Suitable for both indoor and outdoor use (e.g., in switchgear rooms or substations), they adapt well to confined or densely populated areas.
Economical and easy deployment: Their lightweight design allows for simple, cost-effective mounting without special foundations or additional equipment.

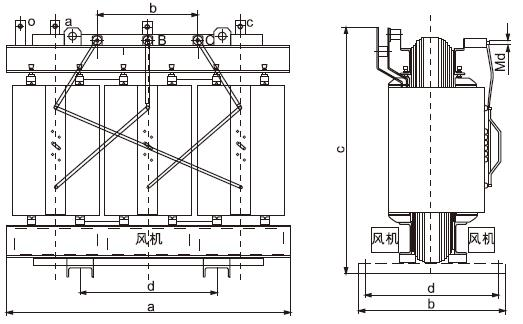

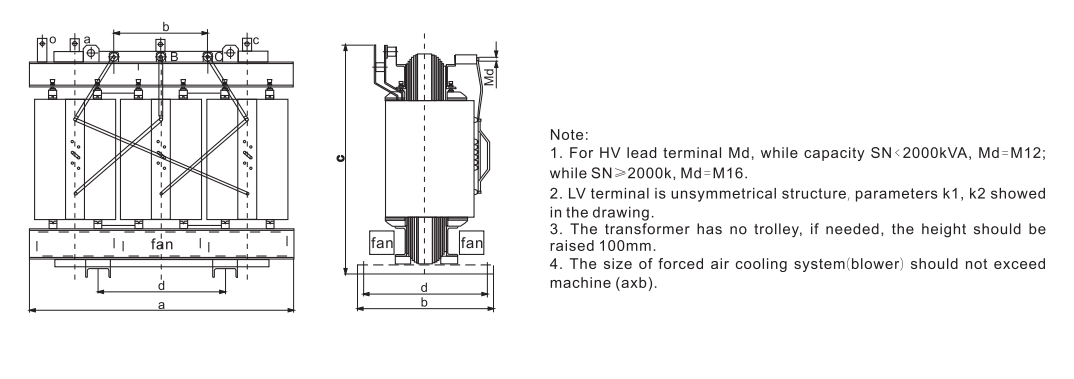

Outline And Mounting Dimensions
