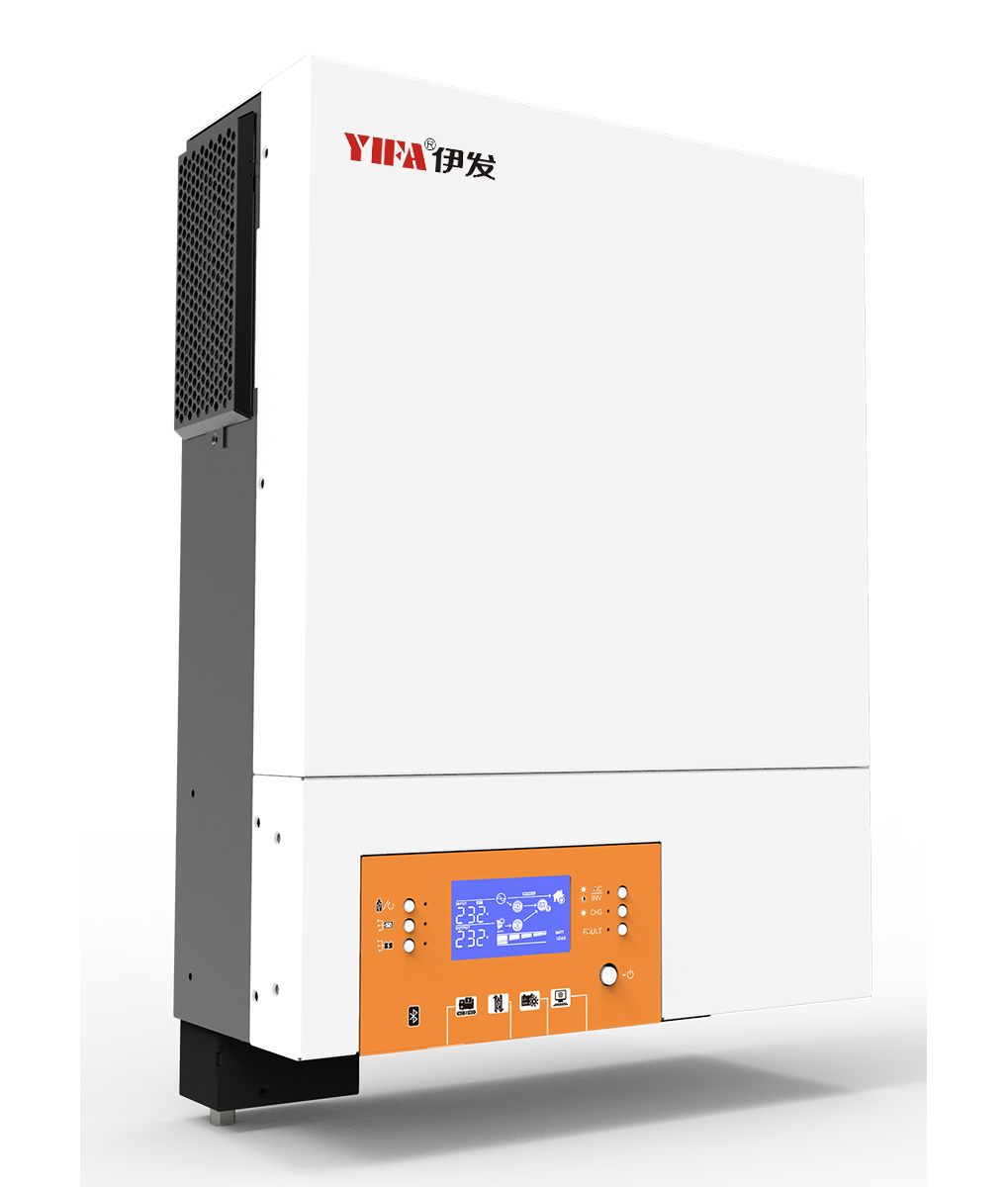

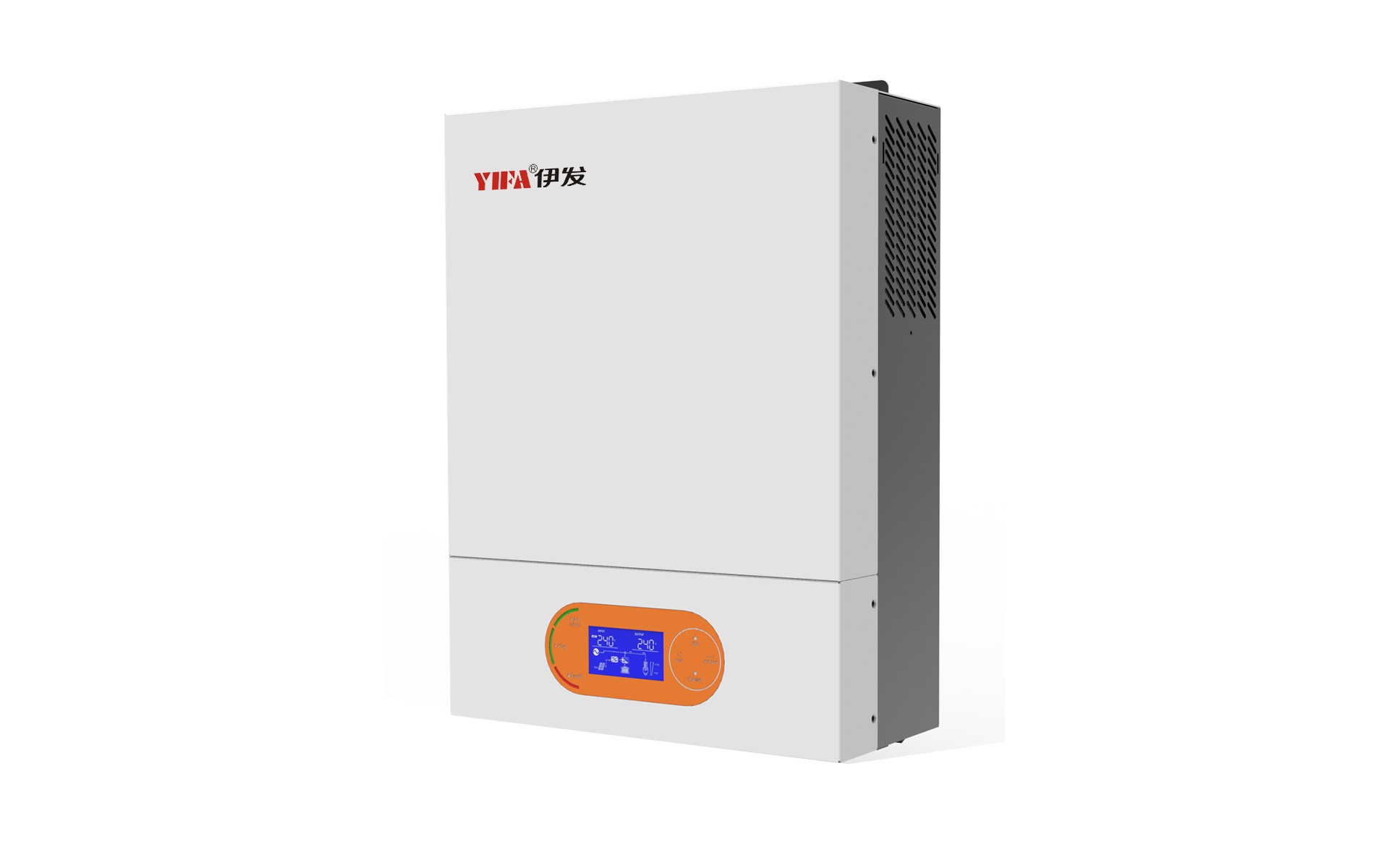

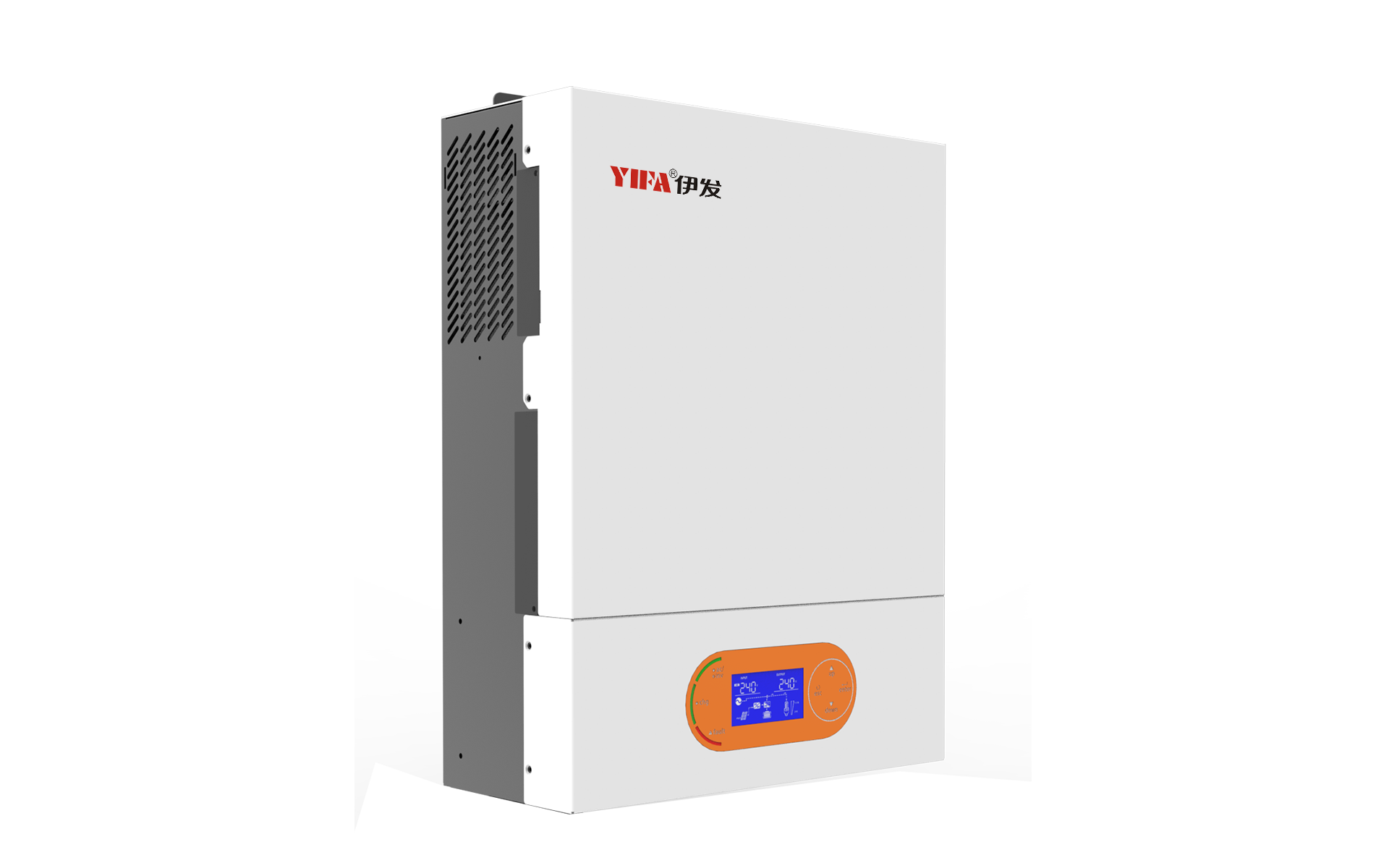

REVO VM III-T series Hybrid Energy Storage Inverter 4/6KW
Max PV input current 27A
Designed with 27A PV input current compatible to the market trend of increased of solar panel.

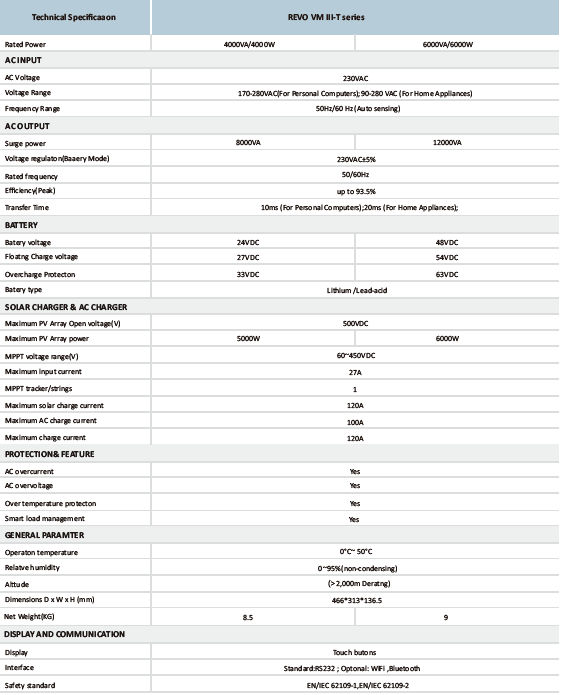

Specification Parameter
| Technical Specification | REVO VMI-T series | |
| Rated Power | 4000VA4000W | 6000VA/6000W |
| AC INPUT | ||
| AC Voltage | 230VAC | |
| Voltage Range | 170-280VAC( For personal computers);90-280 VAC(For Home Applications) | |
| Frequency Range | 50Hz60Hz(Auto sensing) | |
| AC OUTPUT | ||
| Surge power | 8000VA | 12000VA |
| Voltage regulation(Battery Mode) | 230VAC±5% | |
| Rated frequency | 50V60Hz | |
| Efficiency Peak | up to 93.5% | |
| Transfer Time | 10ms For Personal Computers);20ms(For Home Applications) | |
| BATTERY | ||
| Battery voltage | 24VDC | 48VDC |
| Floatng Charge voltage | Z7VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Battery type | Limum/Leadacid | |
| SOLAR CHARGER&AC CHARGER | ||
Maximum PV Array Open voltage(V) | 500VDC | |
| Maximum PV Array power | 5000W | 6000W |
| MPPT voltage range(V) | 60-450VDC | |
| Maximum input current | 27A | |
| MPPT trackerstings | 1 | |
| Maximum solar charge current | 120A | |
| Maximum AC charge current | 100A | |
Maximum charge current | 120A | |
| PROTECTION&FEATURE | ||
| AC over current | Yes | |
| AC over voltage | Yes | |
| Over temperature protection | Yes | |
| Smart load management | Yes | |
| GBNERAL PARAMTER | ||
| Operation temperature | 0'C-50°c | |
| Relative humidity | 0~95%non-codernsing) | |
| AItitude | (>2,000m Derating) | |
| Dimensions DxWxH(mm) | 466*313*136.5 | |
| Net Weight (KG) | 8.5 9 | |
| DISPLAY AND COMMUNICATION | ||
| Display | Touch buttons+LCD | |
| Interface | Standard RS232;Optional WFi,Bluetooth | |
| Safety standard | EN/IEC 62109-1,EN/IEC62109-2 | |
Product Advantage
Max PV input current 27A designed with 27A PV input current compatible to the market trend of increased of solar panel.Easy access two outputs for smart load management.The second output can be scheduled on& off based on set point of battery transfer to uolity. Battery equalization function extend life cycle. Reserved communication port (RS485,CAN) for BMS. Move Detachable LCD control module with various communications.Off-Grid REVO VM III-T series is suitable for off-grid applications.Interface Global cloud platform mobile APP anytime and anywhere open APP , support power internet.
Outline And Mounting Dimensions
