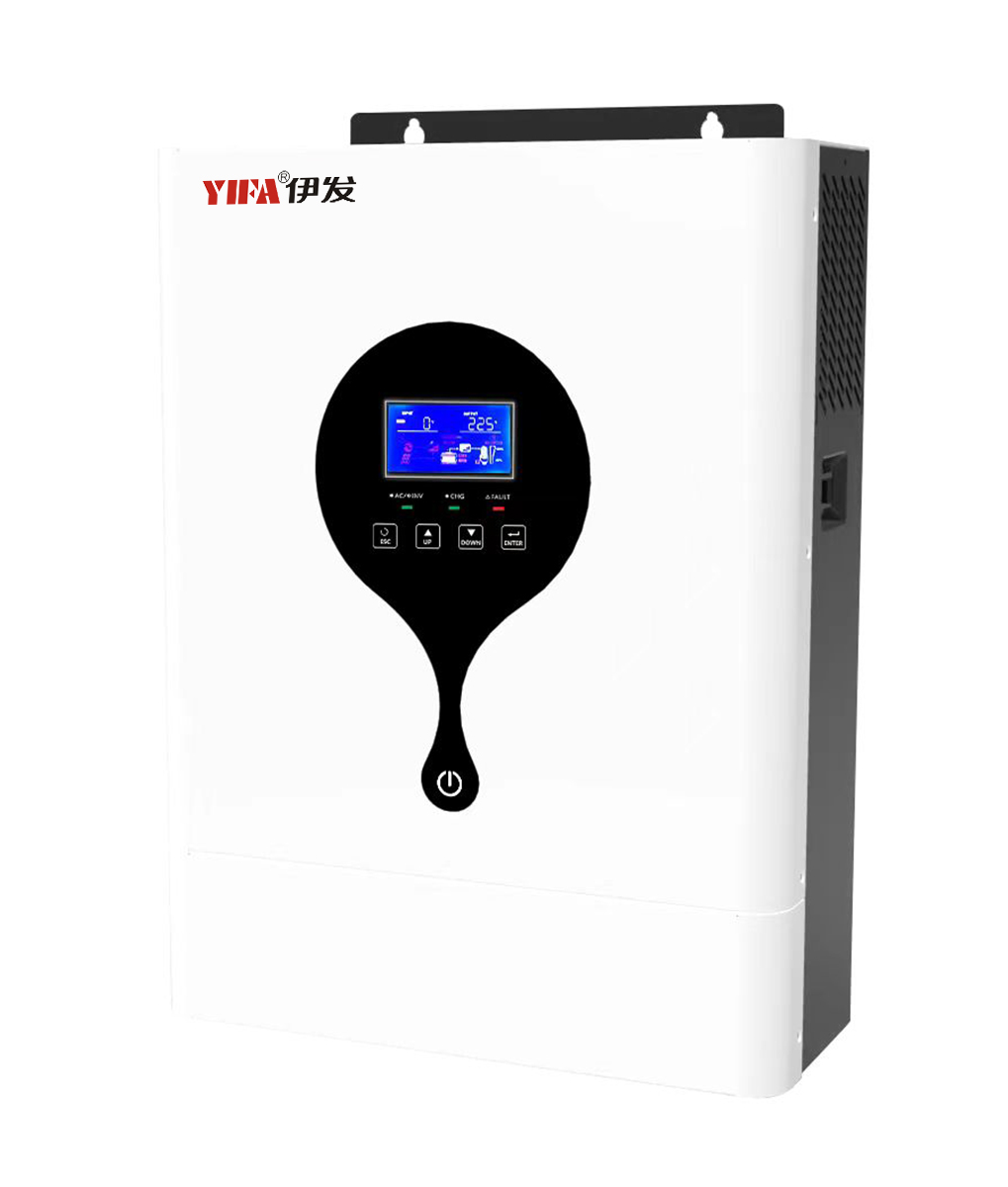

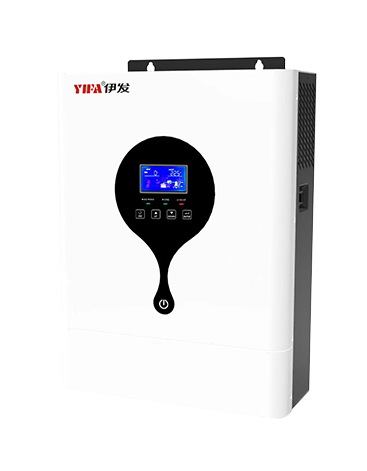

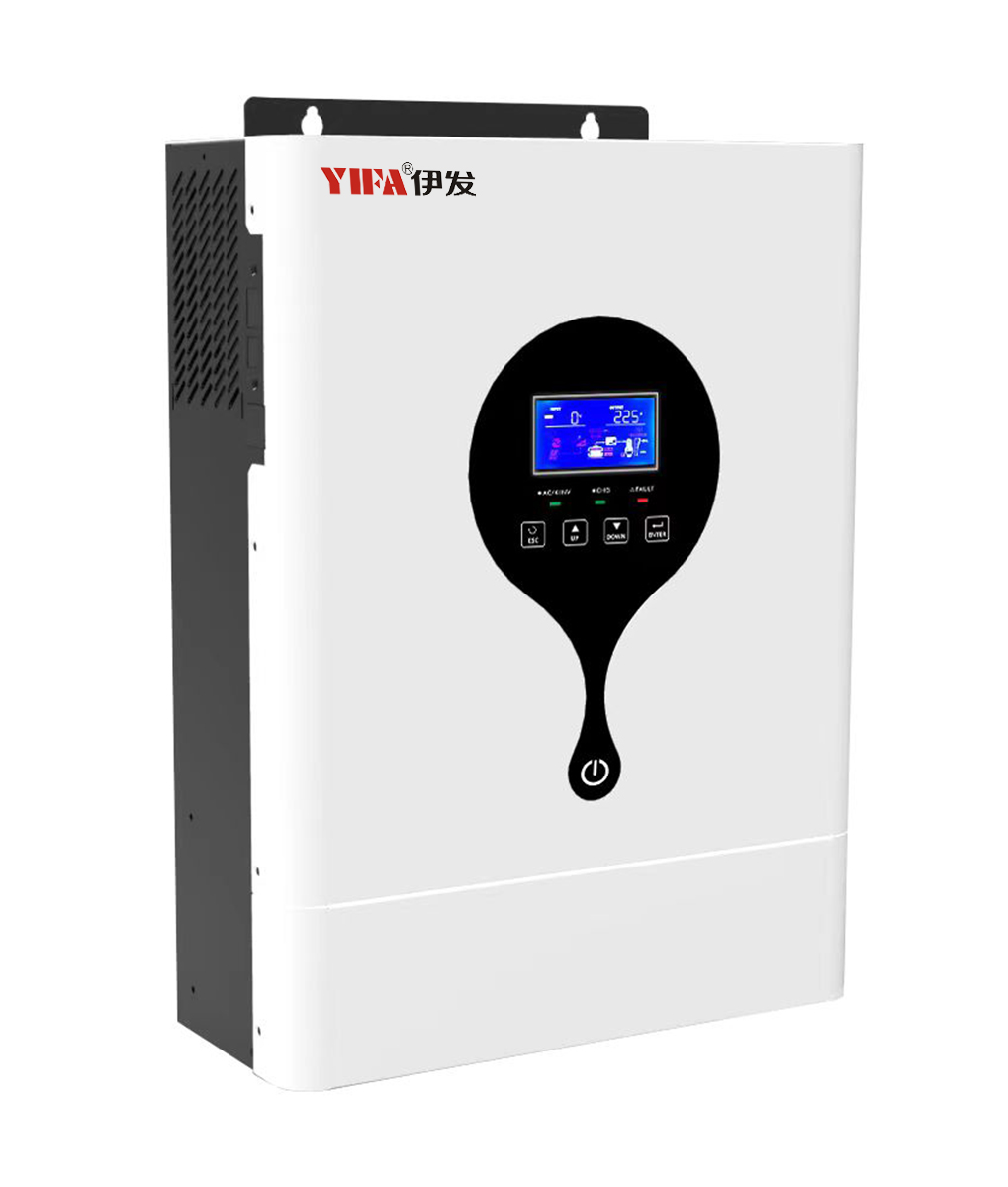

REVO VM II PRO series Hybrid Energy Storage Inverter 1.5/2.5/3.5/5.5KW
Pure sine wave MPPT solar inverter
Built-in 80/100A MPPT solar charger
Specification Parameter
Technical Specification | REVO VMII PRO | |||
| Rated Power | 1500VA/1500W | 2500VA2500W | 3500VA3500W | 5500VA5500W |
| AC INPUT | ||||
| Voltage | 230VAC | |||
| Selectable Voltage Range | 170-280 VAC (For Personal Computers);90-Z80 VAC(For Home Applications) | |||
| Frequency Range | 50/60HZ(Auto sensing) | |||
| AC OUTPUT | ||||
| AC Voltage Regulation(Battery Mode) | 230VAC±5% | |||
| Surge Power | 3000VA | 5000VA | 7000VA | 11000VA |
| Efficiency(peak) | up to 93.5% | |||
| Transfer Time | 10ms(For Persoral Computers)20ms (For Home Applications) | |||
| Waveform | Pure sine wave | |||
| BATTERY | ||||
| Battery Voltage | 12VDC | 24VDC | 48VDC | |
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | |
| Overcharge Protection | 16VDC | 33VDC | 63VDC | |
| SOLAR CHARGER&AC CHARGER | ||||
| Maximum PV Array Open Circuit Voltage | 500VDC | |||
| MaxumPV Array Power | 2000w | 3000W | 4500W | 5500W |
| MPPT Range Operating Voltage | 90~450VDC | 60~450VDC | ||
| Maximum Solar Charge Current | 80A | 100A | ||
| Maximum AC Charge Current | 60A | 80A | ||
| Maximum Charge Current | 80A | 100A | ||
| Basic Information | ||||
| Operating Temperature | -10°C to 50℃ | |||
| Relative Humidilty | 5％-95% Relative Humidity (Non-condensing) | |||
| Dimersins DxWxH(mm) | 348*270*95 | 400*300*115 | ||
| Net Weight (KG) | 4 | 5 | 8.5 | 9 |
| DISPLAY AND COMMUNICATION | ||||
| Communication Interface | Standard R232 Optional CANERS485 | |||
| Safety Standard | EN/IEC 621091ENEC 621092 | |||
Product Advantage
MPPT Pure sine wave MPPT solar inverter. Bulit-in 80/100A MPPT solar charger. Battery equalization function extend life cycle. Reserved communication port (RS485,CAN) for BMS. Off-Grid REVO VM II Pro series is suitable for off-grid applications.Easy access High PV input voltage range.With touch buttons.
Outline And Mounting Dimensions
