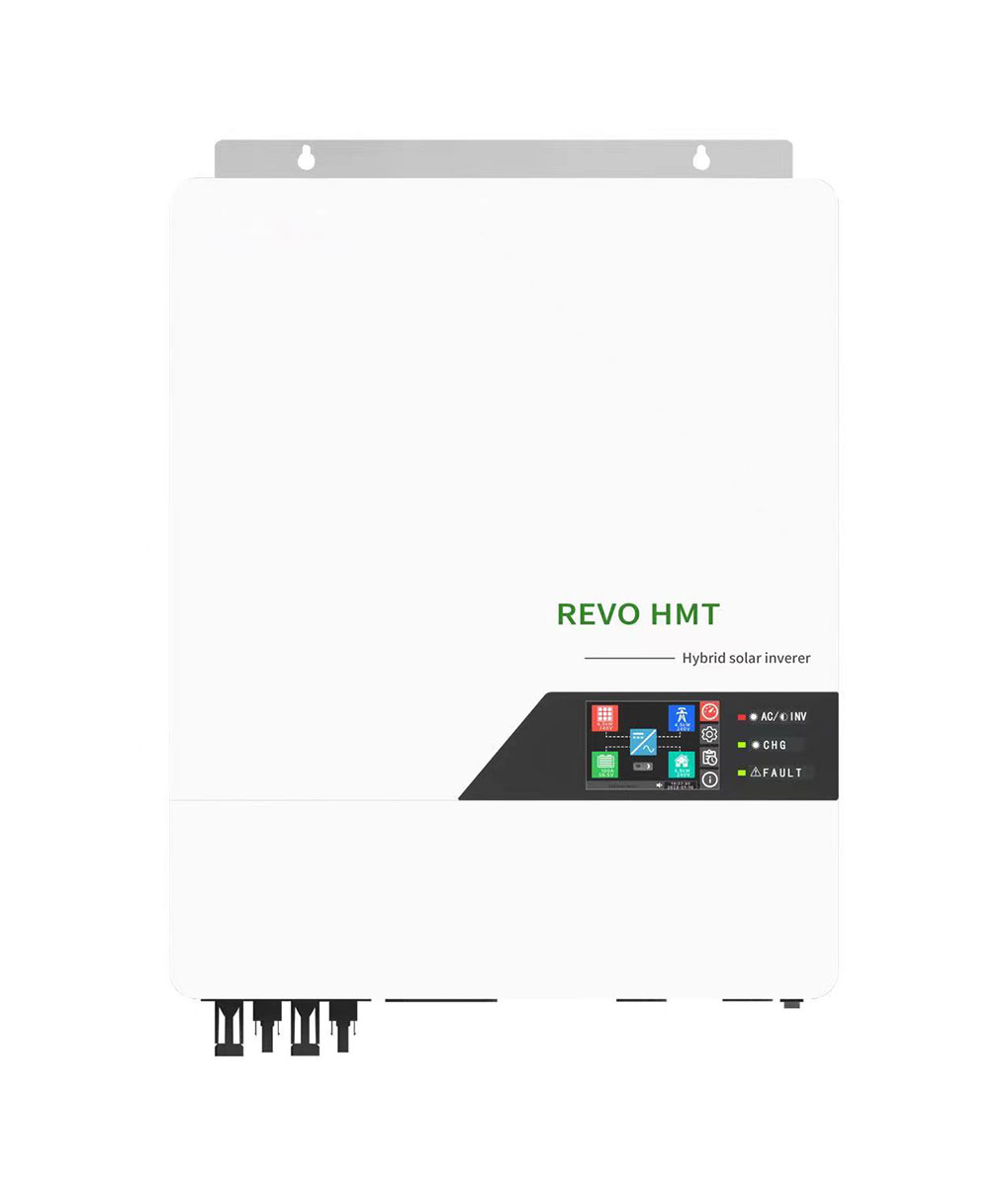

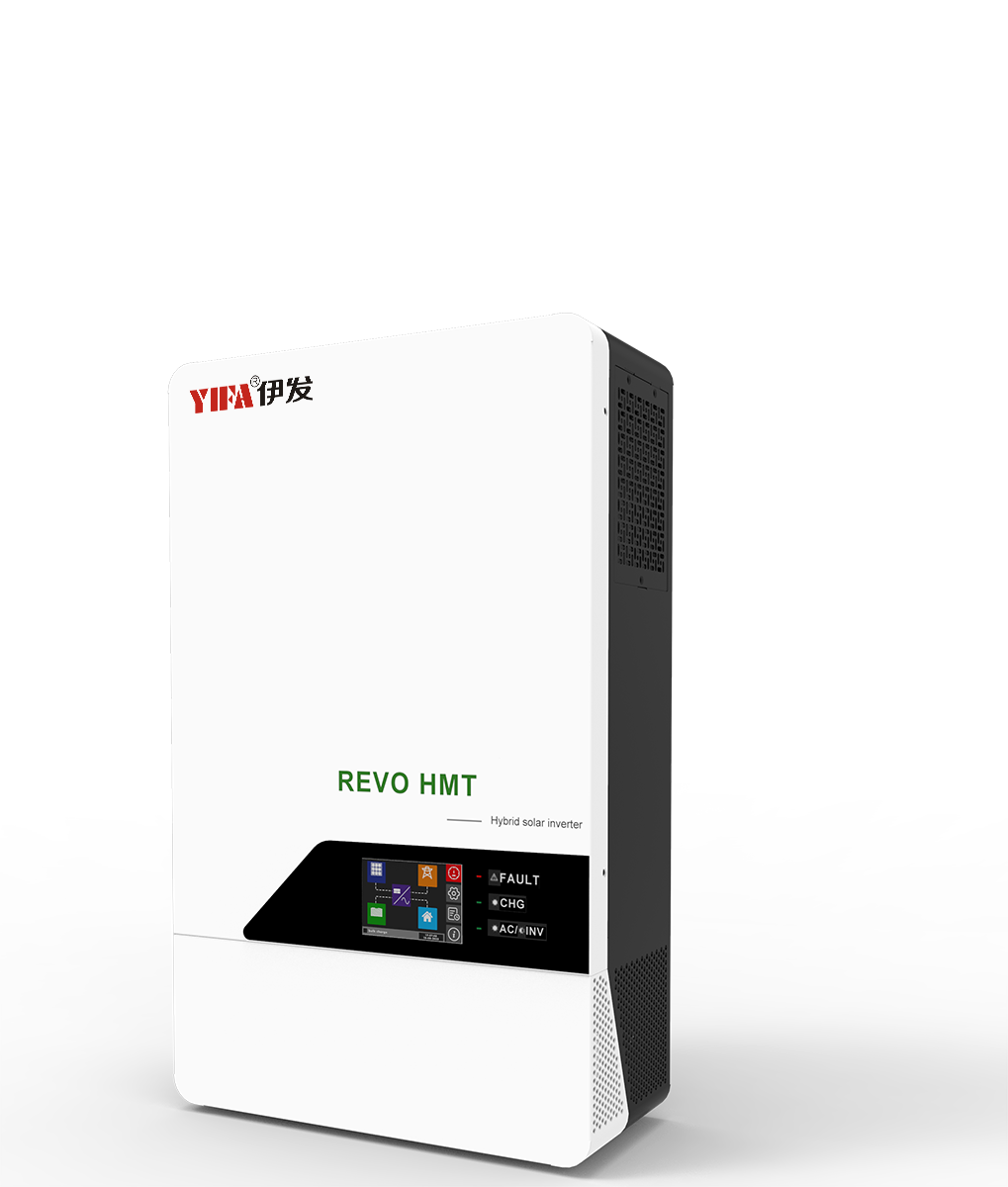

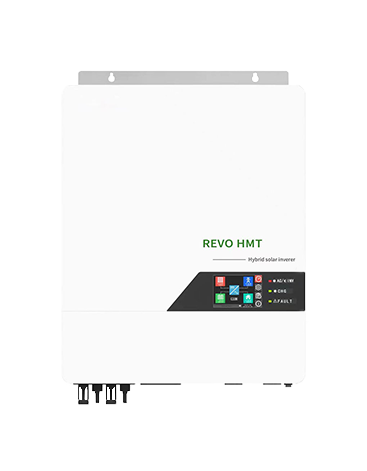

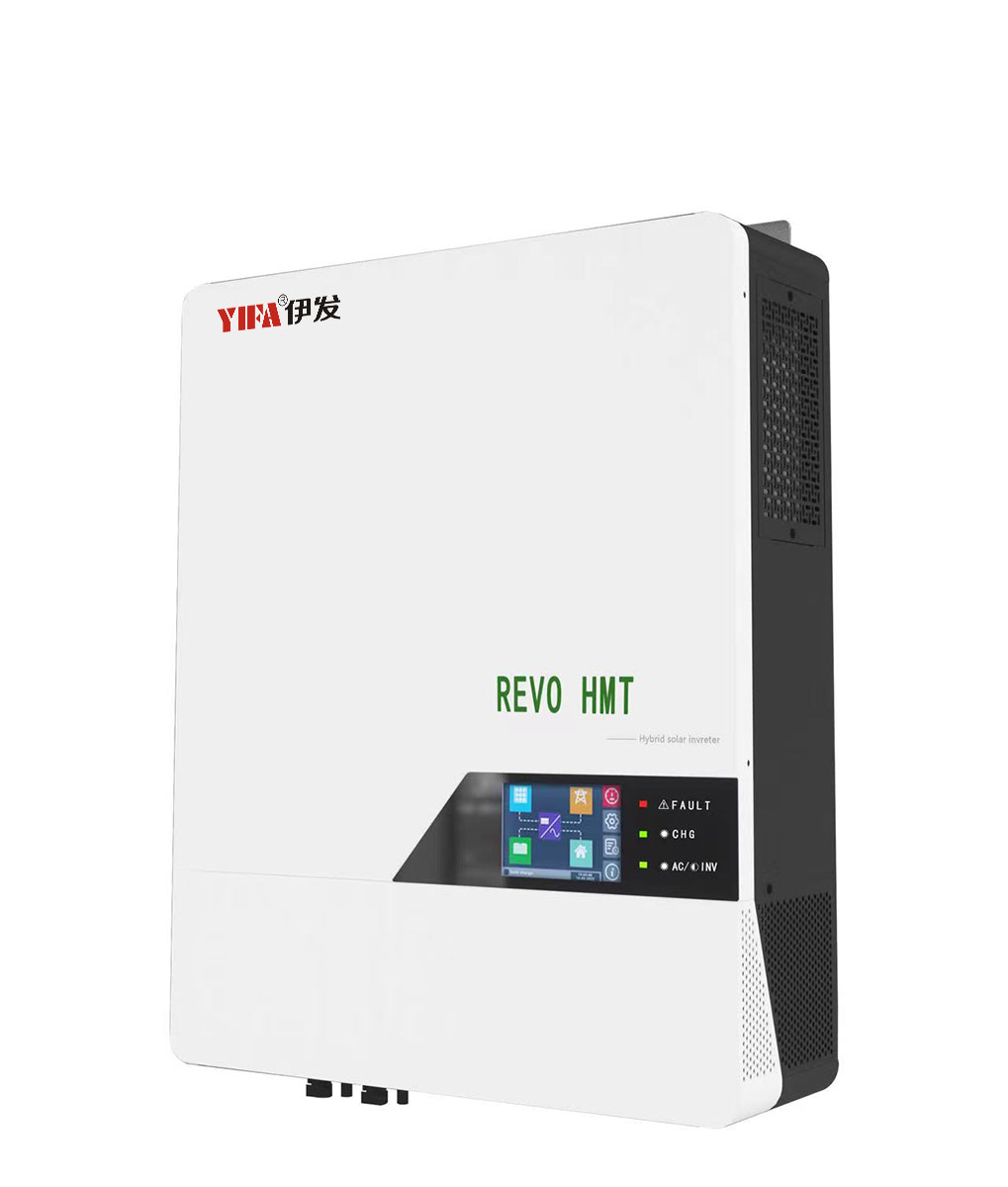

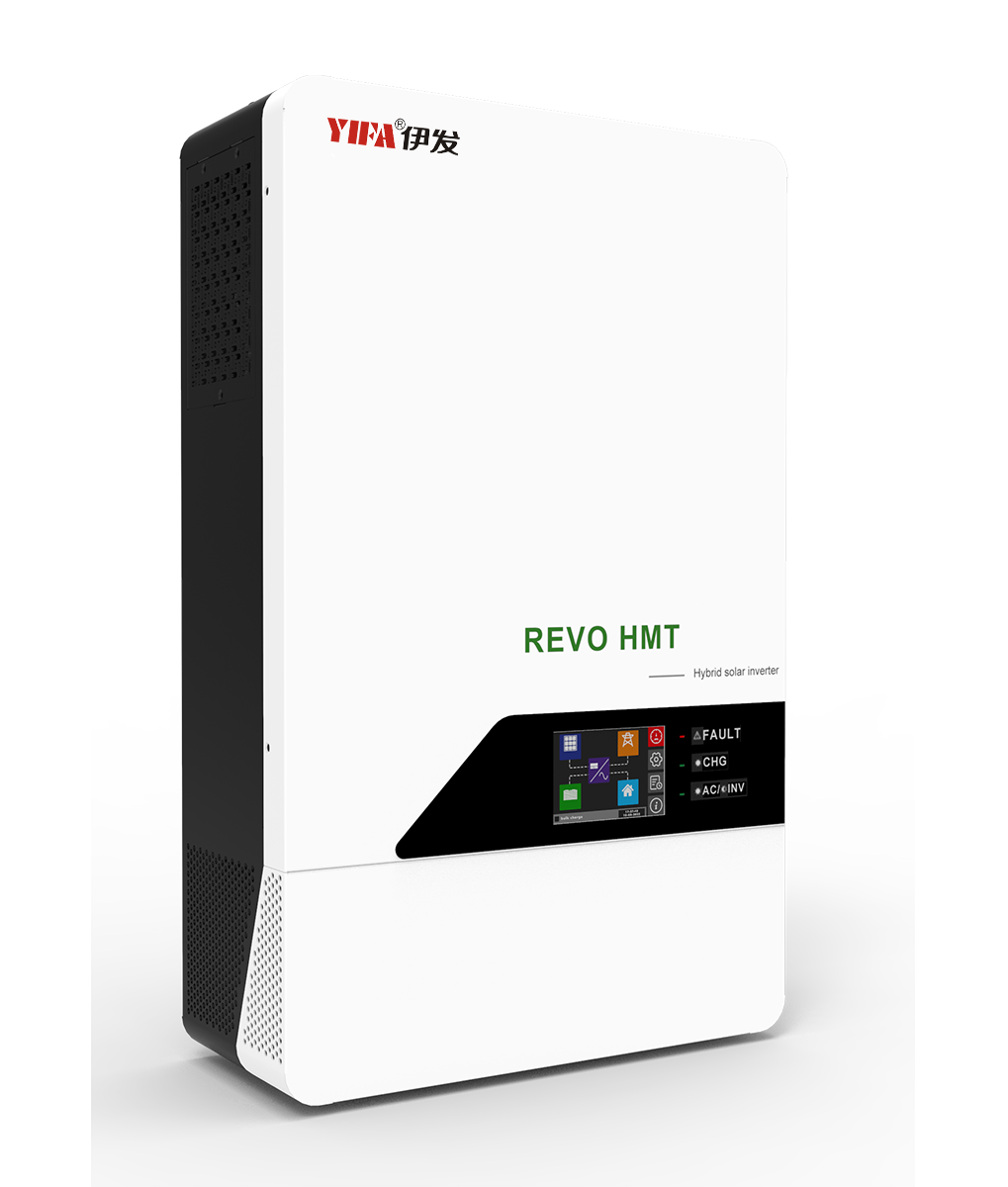

REVO HMT series Hybrid On & O ffGrid Energy Storage Solar Inverter 4/6KW
On-Grid and Off-Grid
REVO HMT series is suitable for ongrid and offgrid applications.

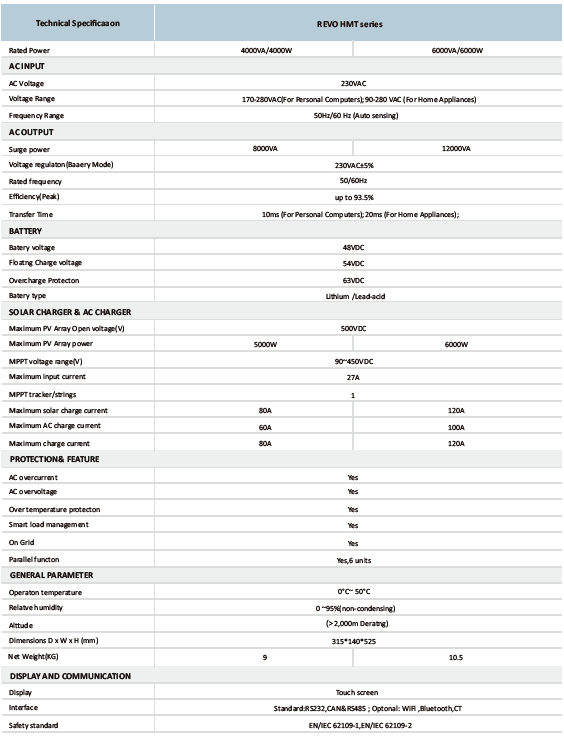

Specification Parameter
| Technical Specification | REVO HMT series | |
| Rated Power | 4000VA/4000W | 6000VA/6000W |
| AC INPUT | ||
| AC Voltage | 230VAC | |
| Voltage Range | 170-280VAC(For Personal Computers);90-280VAC(For Home Applications) | |
| Frequency Range | 50Hz/60Hz(Auto sensing) | |
| AC OUTPUT | ||
| Surge power | 8000VA | 12000VA |
| Voltage regulation(Battery Mode) | 230VAC±5% | |
| Rated frequeney | 50/60Hz | |
| Efficiency(Peak) | up to 93.5% | |
| Trarsfer Time | 10ms (For Personal Computers);20ms(For Home applications); | |
| BATTERY | ||
| Battery voltage | 48VDC | |
| Floatng Charge voltage | 54VDC | |
| Overcharge Protection | 63VDC | |
| Battery type | Lithium/Lead-acid | |
| SOLAR CHARGER &AC CHARGER | ||
| Maximum PV Array Open voltage(V) | 500VDC | |
| Maximum PV Array power | 5000W | 6000W |
| MPPT voltage range(V) | 90~450VDC | |
| Maximum input current | 27A | |
| MPPT tracker/strings | 1 | |
| Maximum solar charge current | 80A | 120A |
| Maximum AC charge current | 60A | 100A |
| Maximum charge current | 80A | 120A |
| PROTECTION&FEATURE | ||
| AC overcurrert | Yes | |
| AC overvoltage | Yes | |
| Over temperature protection | Yes | |
| Smart load managemert | Yes | |
| On Grid | Yes | |
| Parallel Function | Yes | |
| GENERAL PARAMTER | ||
| Operation temperature | 0℃-50°c | |
| Relative Humidity | 0~95%(non-condensing) | |
| AItitude | (>2,000m Derating) | |
| Dimensions D×WxH(mm) | 315*140*525 | |
| Net Weight(KG) | 9 | 10.5 |
| DISPLAY AND COMMUNICATION | ||
| Display | Touch buttons+LCD | |
| Interface | StandardRS232,CAN&RS485;Optional WiFi,Bluetooth,CT | |
| Safety standard | EN/IEC 62109-1EN/IEC62109-2 | |
Product Advantage
On-Grid and Off-Grid REVO HMT series is suitable for on-grid and off-grid applications. Accessible through a LCD touch screen and through the web. Two outputs for smart load management.Remote Monitoring Control and monitor your smart system on the move via our monitoring App and website.BMS Communicaton for lithium batery.Built-in ant-dust kit for harsh environment AC overcurrent,AC overvoltage,over temperature protection.Flexible Rate Tariff Charge from the grid at off-peak time when energy is cheaper,and discharge at peak time when energy is more expensive.
Outline And Mounting Dimensions
