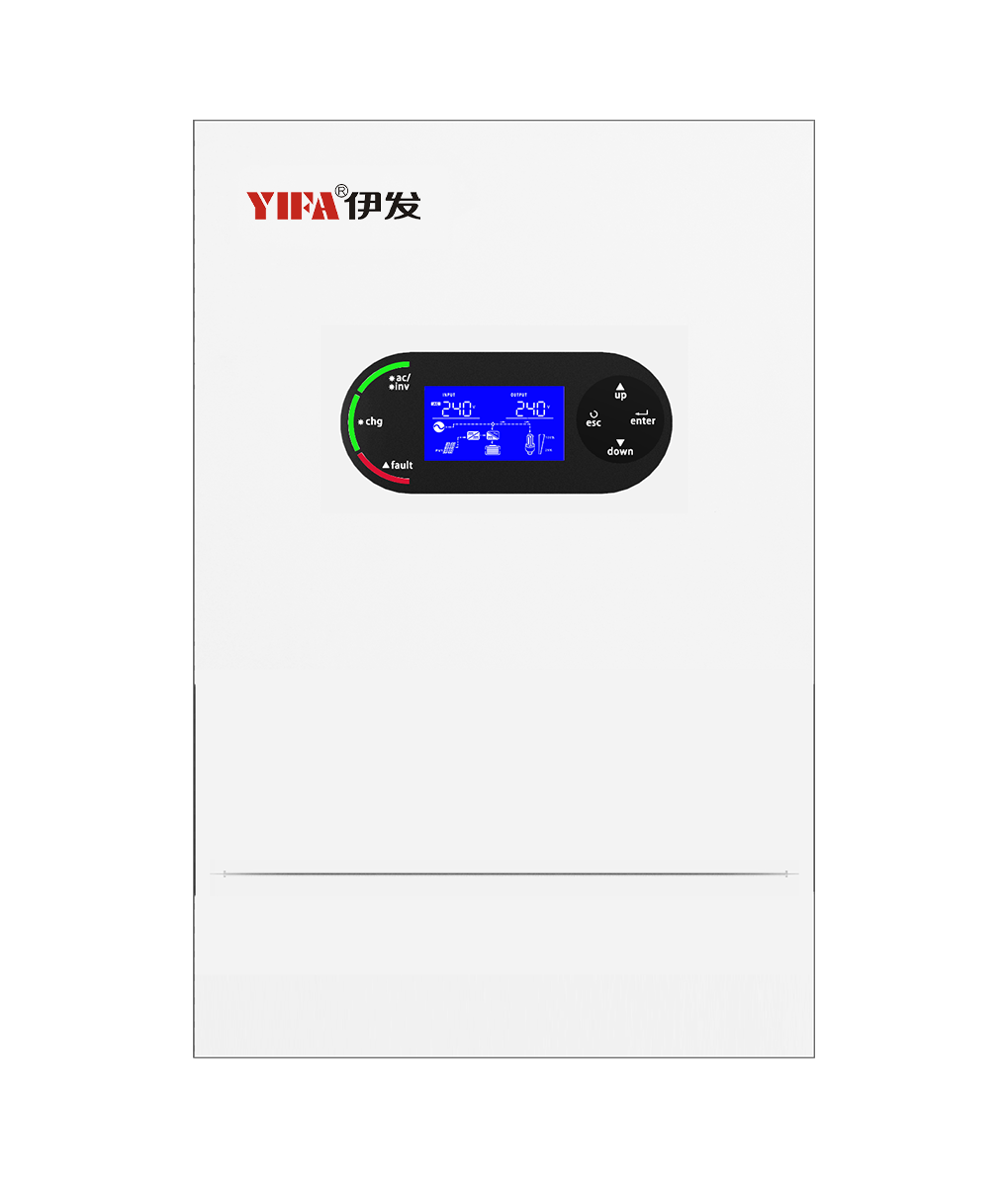

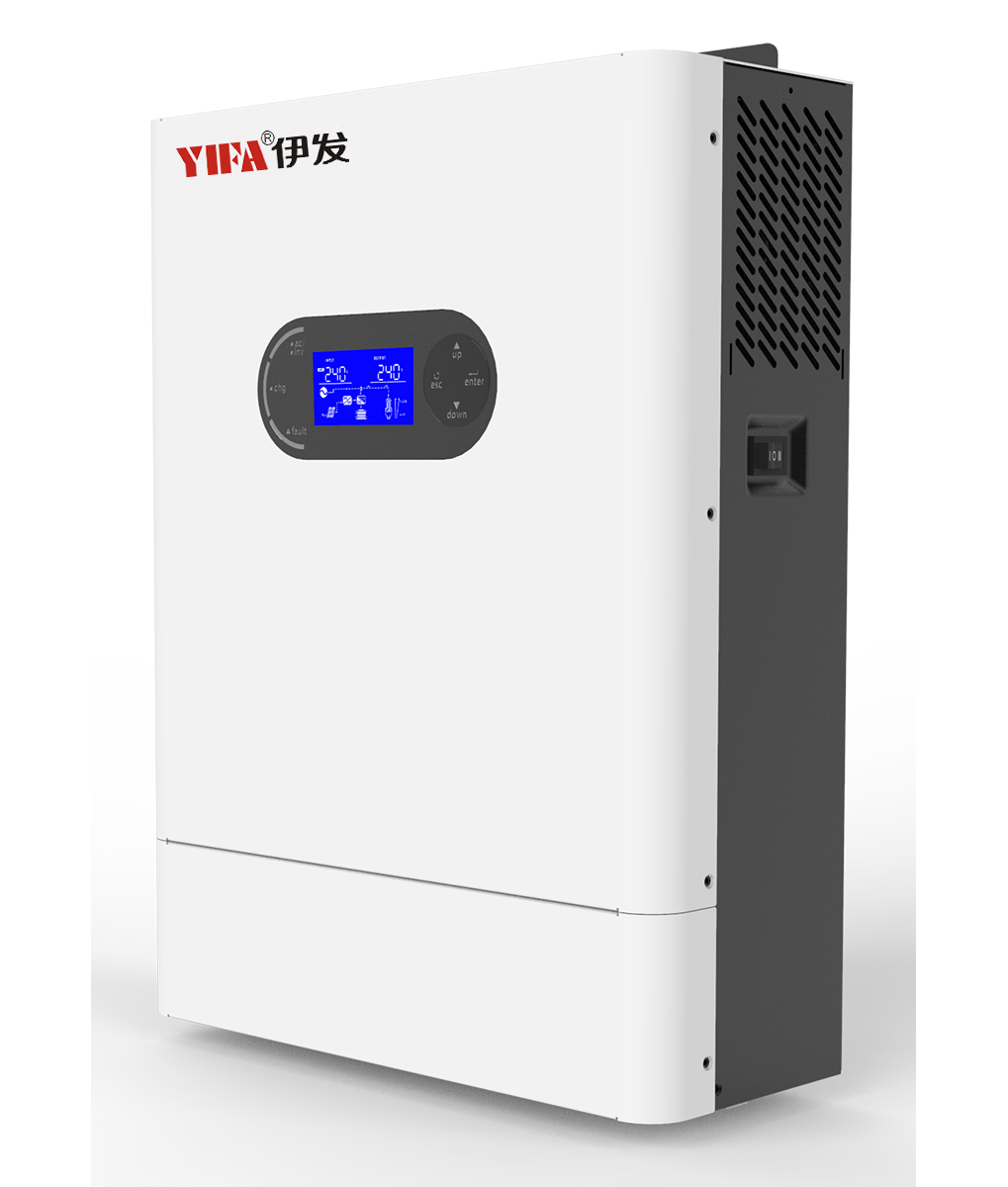

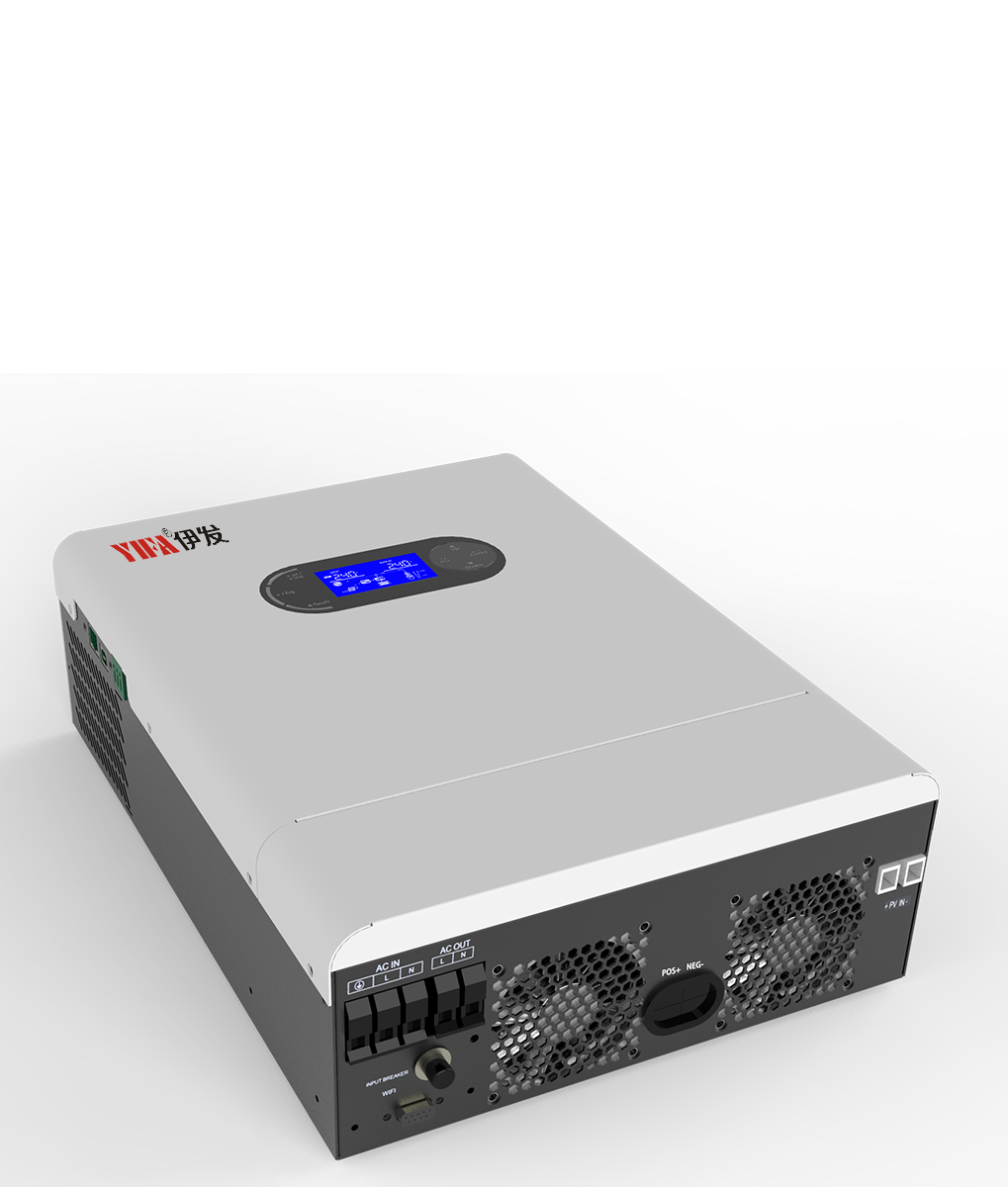

REVO HM series Hybrid On & O ffGrid Energy Storage Solar Inverter 4/6KW
Max PV input current 27A
Designed with 27A PV input current compatible to the market trend of increased of solar panel.

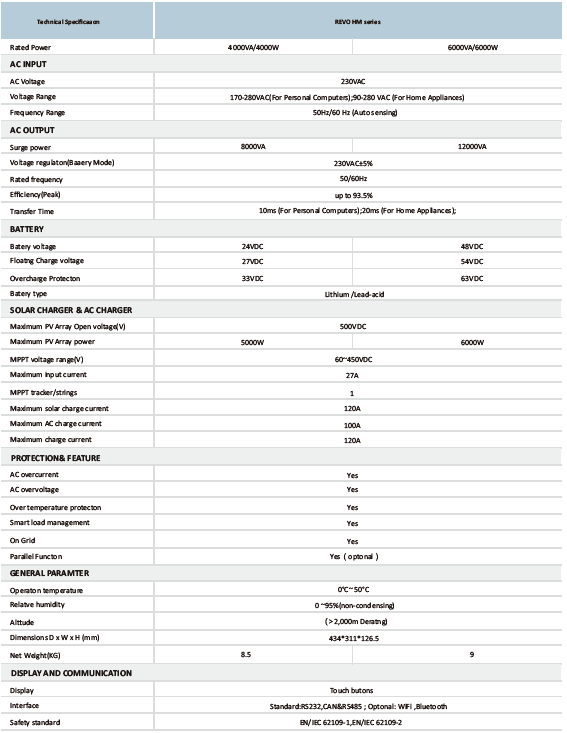

Specification Parameter
| Technical Specification | REVO HM series | |
| Rated Power | 4000VA4D00W | 600OVA/BDOOW |
| AC INPUT | ||
| AC Voltage | 230VAC | |
| Voltage Range | 170-280VAC (For Personal Computes);90-280 VAC(For Home Applications) | |
| Frequency Range | 50Hz5OHz(Auto sensing) | |
| AC OUTPUT | ||
| Surge Power | 8000VA | 12000VA |
| Voltage Regulation(Battery Mode) | 230VAC±5% | |
| Rated Requency | 50/60Hz | |
| Efficiency (Peak) | up to 93.5% | |
| Transfer Time | 10ms (For Personal Computers);2Z0ms(For Home Applications) | |
| BATTERY | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | Z7VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| Battery Type | Limum/Leadacid | |
| SOLAR CHARGER &ACCHARGER | ||
| Maximum PV Array Open Voltage(V) | 500VDC | |
| Maximum PV Array Power | 5000W 6000W | |
| MPPT Voltage Range(V) | 60~450VDC | |
| Maximum input Current | 27A | |
| MPPT Tracker/Strings | 1 | |
| Maximum Solar Charge Current | 120A | |
| Maximum AC Charge Current | 100A | |
| Maximum Charge current | 120A | |
| PROTECTION & FEATURE | ||
| AC Overcurrent | Yes | |
| AC Overvoltage | Yes | |
| Over Temperature Protection | Yes | |
| Smart Load Managenent | Yes | |
| On Grid | Yes | |

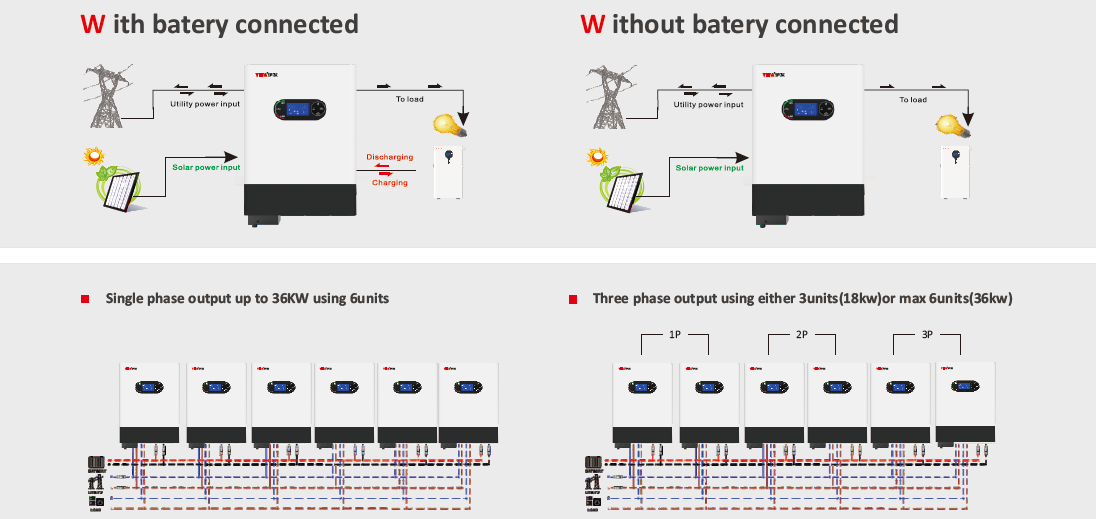

| Parallel Function | Yes | |
| GENERALPARAMTER | ||
| Operation Temperature | 0'C~50°c | |
| Relative Humidity | 0~95%(Non-codensing) | |
| AItitude | (>2,000m Derating) | |
| Dimensions DxWxH(mm) | 466*313*136.5 | |
| Net Weight (KG) | 8.5 | 9 |
| DISPLAY AND COMMUNICATION | ||
| Display | Touch Buttons | |
| Interface | Standard RS232;Optional:WiFi,Bluetooth | |
| Safety Standard | EN/IEC 62109-1ENEC621092 | |
Product Advantage
Max PV input current 27A. Designed with 27A PV input current compatible to the market trend of increased solar panel.Easy access two outputs for smart load management.The second output can be scheduled on& off based on set point of battery transfer to uolity. Battery equalization function extend life cycle.Reserved communication port (RS485,CAN) for BMS. Protect Built-in anti-dust kit for harsh environment ,AC overcurrent,AC overvoltage,over temperature protection.On-Grid and Off-Grid REVO HM series is suitable for on-grid and off-grid applications.Interface Global cloud platform mobile APP anyway and anywhere open APP , support power internet applications.
Outline And Mounting Dimensions
