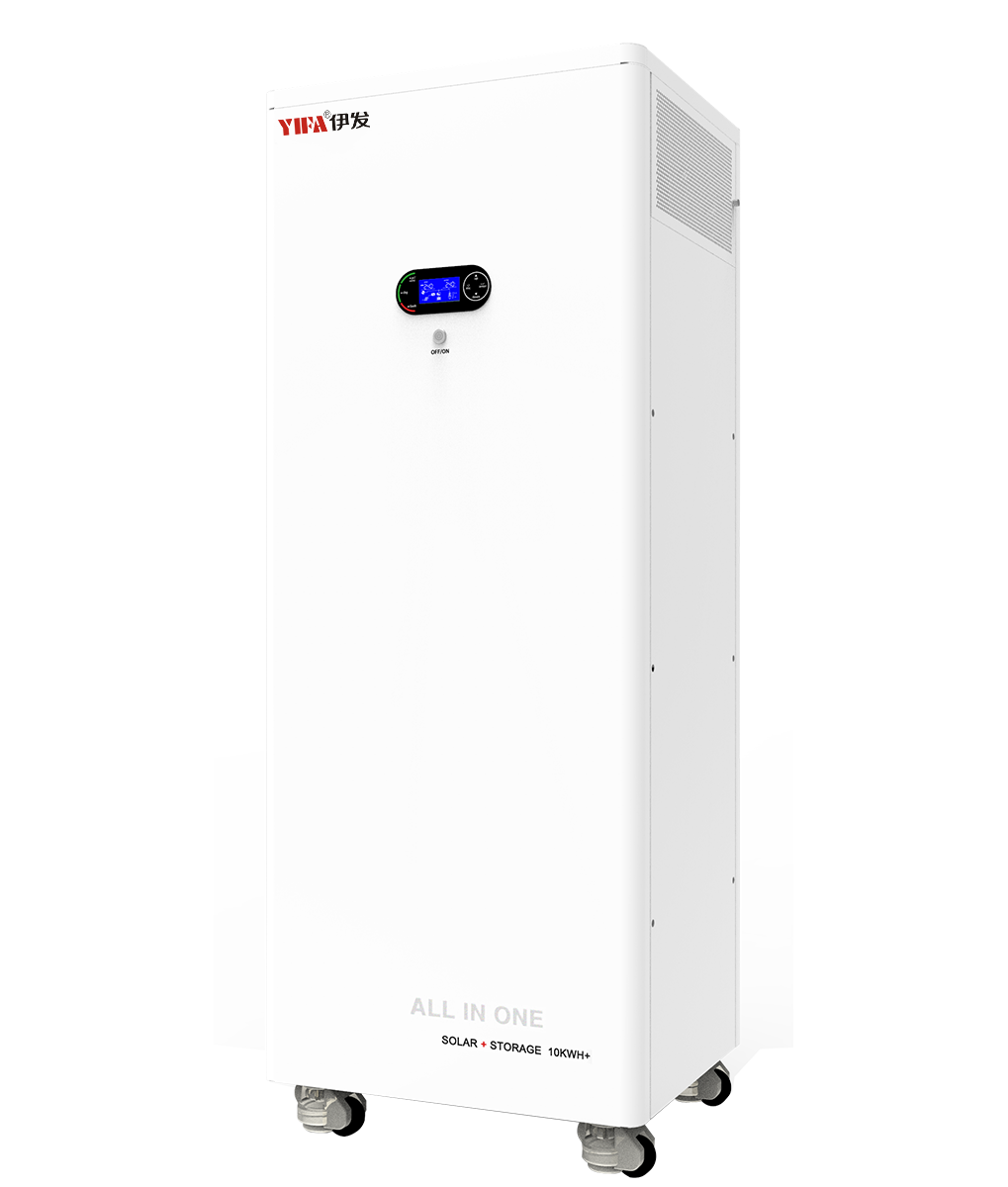

REVO HESS series HYBRID ALL-IN-ONE 6/8KW 10KWH

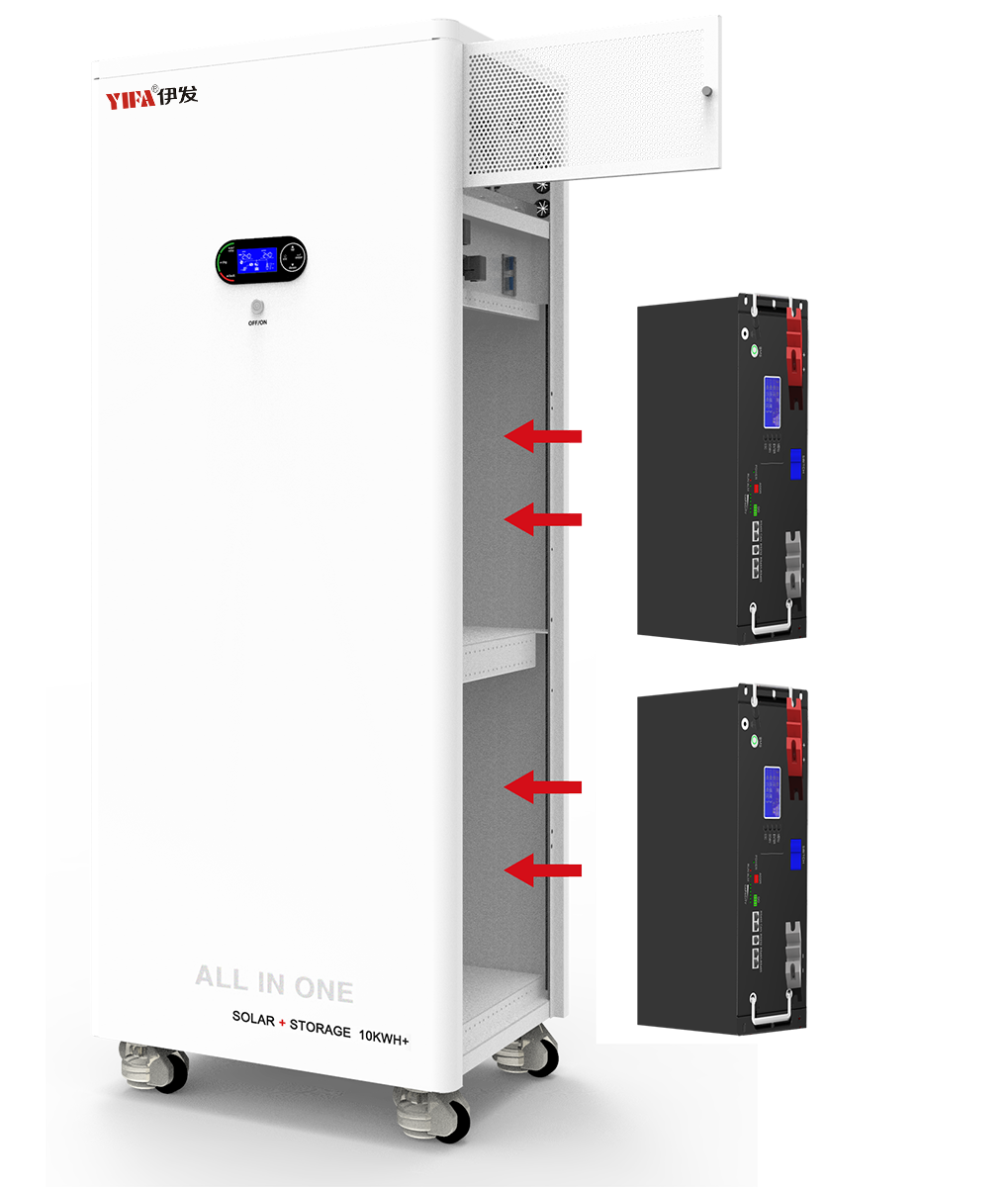

All-in-one design modular installation.Quick plug connector batery module removable.

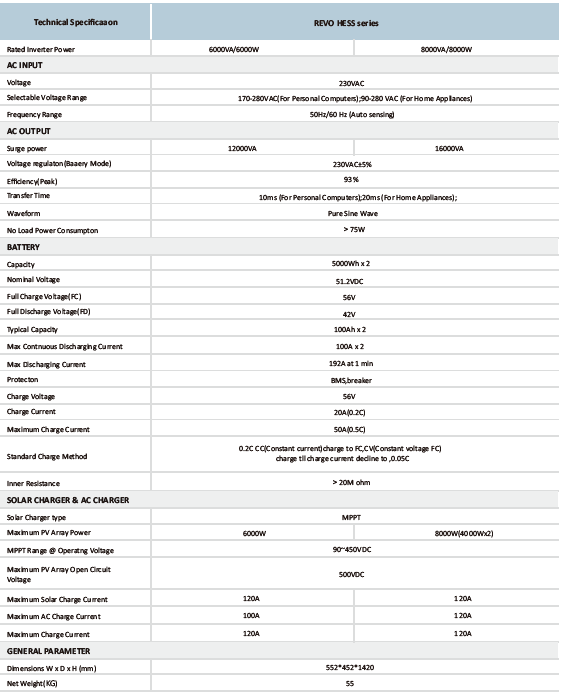

Specification Parameter
Technical Specificaaon | REVO HESSseries | |
| Rated werter Power | 6000VA6000W | 8000VA8000W |
| AC INPUT | ||
| Volage | 230VAC | |
| Selectlabe Volage Range | 170-280VACFar Persoral Computers);90-280VAC (Fa Home Appliarees) | |
| Frequency Range | 50H2/80 Hz(Auto sersng) | |
| AC OUTPUT | ||
| Surge power | 12000VA | 16000VA |
| Volage regulaton(Baaery Mode) | 230VAC±5% | |
| EfciencyPeak) | 83% | |
| Trarsfer Time | 10ms (Fa Persna Conpulers);20ms For Home Apliarces); | |
| Wavefom | Pure Sne Wave | |
| No Laad Power Corsumpton | >75W | |
| BATTERY | ||
| Capaciny | 5000Wx2 | |
| NaninalVdltage | 512VDC | |
| FullCharge VdlageFC) | 56V | |
| FullDischarge Volage | 42V | |
| Typical Capacny | 100Ahx2 | |
| Max Coniruous Dischagng Currert | 100A×2 | |
| Max Discharging Current | 192Aat1 mn | |
| Proleclon | EMS,breaker | |
| Charge Volage | 56V | |
| Charge Curent | 20A0.2C) | |
| Maxmum Chage Curent | 50A(0.5C) | |
| Slandard Charge Method | 02cCC(Coslant ourrenlcharge to FC.CVCorstant wolage FC) charge l charge curent decline to 005C | |
| hnerResistanoe | >20M chm | |
| SOLARCHARGER &AC CHARGER | ||
| Sola Charger type | MPPT | |
| MaxmumPVAray Power | 6000W | 8000W(4000WxZ |
| MPPT Range②Operalng Vollage | 90~450VDC | |
| MaximumPVAray Open Ciroui Valage | 500VDC | |
| Maximum Solar Charge Currert | 120A | 120A |
| MaximumAC Charge Current | 100A | 120A |
| Maximum Charge Current | 120A | 120A |
| GENERALPARAMETER | ||
| Dimensions W×DxH(mm) | 552*452*1420 | |
| Net WeighKG) | 55 | |
Product Advantage
Simple
All-in-one design modular installation.Quick plug connector batery module removable.
On-Grid and Off-Grid
REVO HESS series is suitable for on-grid and off-grid applications.
Safe
Physical and electrical dual isolaton.BMS communicaton for lithium batery.With short circuit protecton, over-voltage protecton, over load protection.
Intelligent
Control and monitor your smart system on the move via our monitoring APP and website.
Outline And Mounting Dimensions
