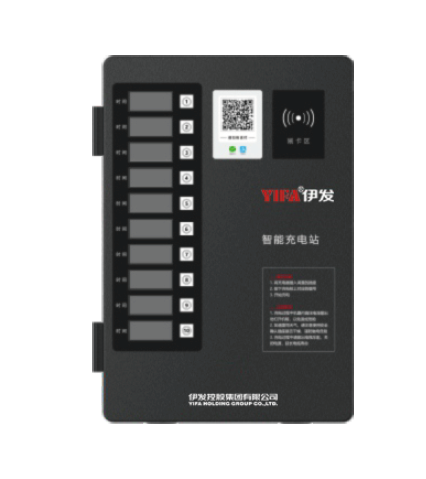

RDZC-B10Y Split smart charging station
RDZC-B10Y split intelligent charging station is a solution developed for two-wheeled and three-wheeledbattery vehicles, providing power output for battery car chargers. The intelligent charging station has thefunctions of control, monitoring and protection, such as full automatic stop, no-load power off, short circuitprotection, overcurrent protection, power off memory and other functions. Combined with the self-developedcharging management platform, it can timely push the abnormal situation of the equipment, so as to facilitatethe operator to effectively manage and maintain the equipment.
Specification Parameter
| Technical parameter | ||
| RDZC-B10Y(Charging pile detailed parameters) | ||
| Item | Basic index | RDZC-B10Y |
Appearance structure | Instllation mode | Wall/column |
| Charging module | / | |
| Shell material | Sheet metal | |
| Cable length | / | |
Electrical index | Input voltage | AC220 |
| Input frequency | 45Hz-55Hz | |
| Maximum power | 8000W | |
| Output voltage | AC220 | |
| Output current | 4A | |
Safety design | Overvoltage protection | √ |
| Undervoltage protection | √ | |
| Overload protection | √ | |
| Short circuit protection | √ | |
| Leakage protection | √ | |
| Ground protection | √ | |
| Lightning protection | √ | |
Environmental index | Operating ambient temperature | -20℃-55℃ |
| Working ambient humidity | No condensation | |
| Cooling mode | Natural cooling | |
| other | Class of protection | IP54 |
Product Advantage
Charging mode: automatic filling, quantitative, fixed fee, timing; Full stop: The device automatically stops charging after the battery is full.
Charging mode: automatic filling, quantitative, fixed fee, timing;
Full stop:
The device automatically stops charging after the battery is full.
