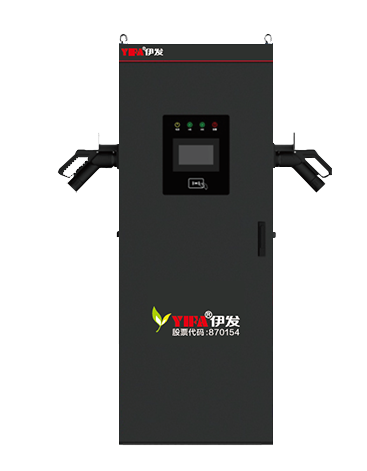

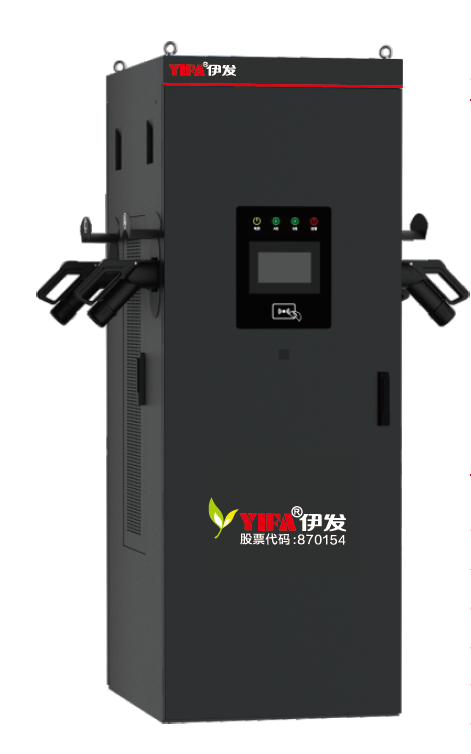

RDE-DC160E4 Four-gun integrated charging pile
RDE-DC160E is mainly used for fast charging of electric vehicles, and its design has perfect chargingsafety protection function and human-computer interaction function. it is suitable for outdoor electric vehiclecharging stations, public parking lots, residential parking lots, large commercial parking lots, roadside parkingSpaces and bus stations.
Specification Parameter
| RDE-DC160E Technical parameter | ||
| Item | Type parameter | RDE-DC160E4H |
Appearance | Name | DC charging pile 160kW |
| Maximum output power | 160KW | |
| Charging gun number | four-gun | |
| Display and input function | Touch color screen,display resolution 800°6DD,brightness 500nil,slze 7 inches | |
DC plug standard,DC charging interfaoe standard | GB/T20234.3-2015.GB/T18487.1-2015 | |
| Card reading function | Contactess card reader | |
Operating parameter | Input voltage range | 3B0V±15% |
| Input voltage frequency | 45-55Hz | |
| Output voltage range | 200-750VDC | |
| Output current range | 5A-130A | |
| Power factor | ≥0.99 | |
| Efficiency | ≥95%Fulload ≥95% | |
| Voltage accuracy | ±0.5%Not more than ±0.5% | |
| Current accuracy | ≥30A:±1%,<30A:±0.3% ≥30A:not more than±1%,<30A:not more than ±0.3% | |
| Steady flow accuracy | ±0.5%Not more than ±0.5% | |
| Ripple coefficient | ±1%Peak value:not more than±1% | |
Feature | Operationa supervision function | Sapot penionnsegeTen psatom,ds rerston strag.erTC pgs,beasotereragnet acortrg ravsgerert |
| Safety protecion function | Sspontw b anr ong Lsuy thu,bowD =yppdamdru ponserer | |
| DC watt-hour meter measurement accuracy | Level 0.5 | |
| Standby power | ≤50W | |
| Starting mode | Support mobile startup,credit card startup | |
| Class of protection | IP54 | |
Working environment | Operatingtemperature | -20℃-50℃ |
| Working humidity | 5%-95% | |
| Cooling mode | Air cooling | |
Product Advantage
High charging efficiency, high energy utilization rate, less energy loss, in line with the requirements of energyconservation and emission reduction,reduce costs;The input harmonics are small, which can reduce the pollution to the power grid, and have higher power gridapplication capability;
Wide input and output voltage range, wide application range, suitable for a variety of diferent voltageoccasions;
Wide operating temperature range, can work normally under different environmental conditions;
The charging module supports hot draw function, which is convenient to use and reduces maintenance cost;Built-in anti-reverse protection, with failure self-isolation function, greatly improve the reliability of thesystem;
With a perfect fault detection indicator, can carry out a variety of fault detection, convenient customermaintenance;
With remote start charging function, it can realize wechat scan start charging, stop charging, remotesettlement, remote viewing of charging process, etc.Support background and cloud platform management, charging record push;You can automatically determine whether the charging connector and charging cable are connectedproperly. Only when the charging pile is properly connected to the electric vehicle can the charging pile beallowed to start the charging process; When the charging pile detects that it is not properly connected to theelectric vehicle, it will immediately stop charging;It has the function of communication between high-speed CAN network and battery management systemBMS to determine the connection between charging pile and electric vehicle in real time, and obtain theelectric vehicle power battery type, batery system parameters, and real-time data of battery pack and single
battery before and during charging.Real-time fault alarms are pushed to the platform to facilitate after-sales maintenance.Low standby power consumption, meet the requirements of energy conservation and emission reduction,reduce operating costs.
Outline And Mounting Dimensions
