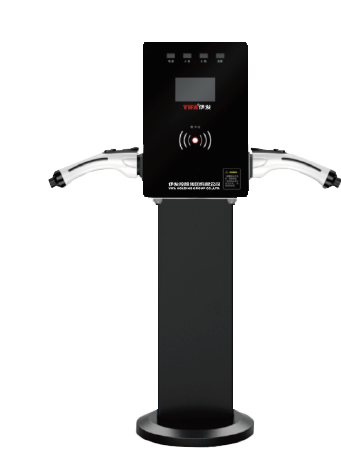

RDE-AC014C2B Three-dimensional charging pile
RDE-AC014C2B is mainly used for fast charging of electric vehicles, and its design has perfect protectionfunction and human-computer interaction function,it has the characteristics of easy installation andcommissioning, simple operation and maintenance, and is suitable for installation in indoor and outdoorelectric vehicle charging stations, public parking lots, residential parking lots, large commercial parking lotsand roadside parking spaces.
Specification Parameter
| (Charging pile detailed parameters) | ||
| ltem | Basic index | RDE-AC014C2B |
Appearance structure | Installation mode | Vertical type |
| Charging module | Double gun | |
| Shell material | Sheet metal | |
| Cable length | Can be customized | |
Electrical index | Input voltage | 220V |
| Input frequency | 45Hz-55Hz | |
| Maximum power | 7KW*2 | |
| Output voltage | 220V | |
| Output current | 32A*2 | |
Safety design | Overvoltage protection | √ |
| Undervoltage protection | √ | |
| Overload protection | √ | |
| Short circuit protection | √ | |
| Leakage protection | √ | |
| Ground protection | √ | |
| Lightning protection | √ | |
Environmental index | Operating ambient temperature | -20℃-55℃ |
| Working ambient humidity | No oondensation | |
| Cooling mode | Natural cooling | |
| other | Class of protection | IP54 |
Product Advantage
Charging mode: automatic filling, quantitative, fixed fee, timing;Full stop: The device automatically stops charging after the battery is fullBuilt-in protection, with failure self-isolation function, greatly improve the reliability of the system.Low standby power consumption, meet the requirements of energy conservation and emission reduction.
Charging mode: automatic filling, quantitative, fixed fee, timing;Full stop: The device automatically stops charging after the battery is fullBuilt-in protection, with failure self-isolation function, greatly improve the reliability of the system.Low standby power consumption, meet the requirements of energy conservation and emission reduction.
