IHESS series 1P Single Phase Residential Energy Storage Inverter
Flexible Rate Tariff
Charge from the grid at off-peak times when energy is cheaper,and discharge at peak times when energy is more expensive.
Specification Parameter
| Technical Specification | IHESS series | |||||
| EFFICIENCY | ||||||
| DC Max Efficiency | 97.50% | |||||
| Europe Efficiency | 97% | |||||
| PV | ||||||
| Max Power(kW) | 5.7 | 7 | 8 | 9.6 | ||
| Max DC Voltage(V) | 550 | |||||
| MPPT Voltage Range(V) | 90-500 | |||||
| Max Input Current of single MPPT(A) | 16/16 | |||||
| MPPT tracker/strings MPPT | 2/1 | |||||
| AC OUTPUT(GRID-TIED) | ||||||
| Grid Voltage/ Range(V） | 230/176~270 | |||||
| Frequency (H2) | 50/60 | |||||
| PF | 0.8lagging-0.8leading | |||||
| THDi | <3% | |||||
| AC Ouput Topology | L+N+PE | |||||
| Battery | ||||||
| Batery Voltage Range(V) | 40~58 | |||||
| Max Charge Voltage(V) | 58 | |||||
| Max Charge/ Dischage Current (A) | 100/110 | |||||
| Battery Type | Lirium/Leadacid | |||||
| UPS OUTPUT UPS | ||||||
| Rated Power (KW) | 3.6 4.6 | 5 | 6 | |||
| Rated Ouput Voltage (V) | 220/230/240 | |||||
| Rated Output Current (A) | 15/6/6.3 19.120/20.9 20.8/21.7/22.7 | 25/26/27.2 | ||||
| Rated Requency (Hz) | 50/60 | |||||
| Transfer Time (me) | <10 | |||||
| TH Du | <2% | |||||
| Overload Capacity | 110%,30S/120%,10S/150%,0.02S | |||||
| PROTECTION&FEATURE | ||||||
| Anti-island Protection | Yes | |||||
| DC Over Current Protection | Yes | |||||
| Insulation Monitoring | Yes | |||||
| Residual Current Monitoring | Yes | |||||
| Arc fault Protection | Yes(Optional) | |||||
| Battery Reverse polarity Protection | Yes | |||||
| Parallel Function | Yes,12 units | |||||
| Other Protection | AC overcurrent ,AC overvoltage ,Over tempreature protection | |||||
| General Parameter | ||||||
| Degree of Protection | IP65 | |||||
| Operation Temperature | -25℃-60℃ | |||||
| Cooling | Natural | |||||
| Relative Humidity | 0~95%(non-condensing) | |||||
| Altitude | (>2000m Derating) | |||||
| Dimensions W×DxH(mm) | 480*210*495 | |||||
| Net Weight (KG) | 24.5 25 | |||||
| Isolation trarsformer | No | |||||
| Self-consumption | <5 | |||||
| DISPLAY AND COMMUNICATION | ||||||
| Display | LCD | |||||
| Interface | StandardRS485 CAN,DRM;Optional WIFI,Bluetooth | |||||
| Safety Standard | CEEMCENEC 6100-6-32021ENECG10006-1:2019;CEVCCIEC 2109-12010,EC62109-2:2D11,JEC6247-1:2022 COCNDE41042018 VDED124:2020;CDCICE10-21:202;COCHORTpeABZ2,OVEF26202;202,G92022 | |||||

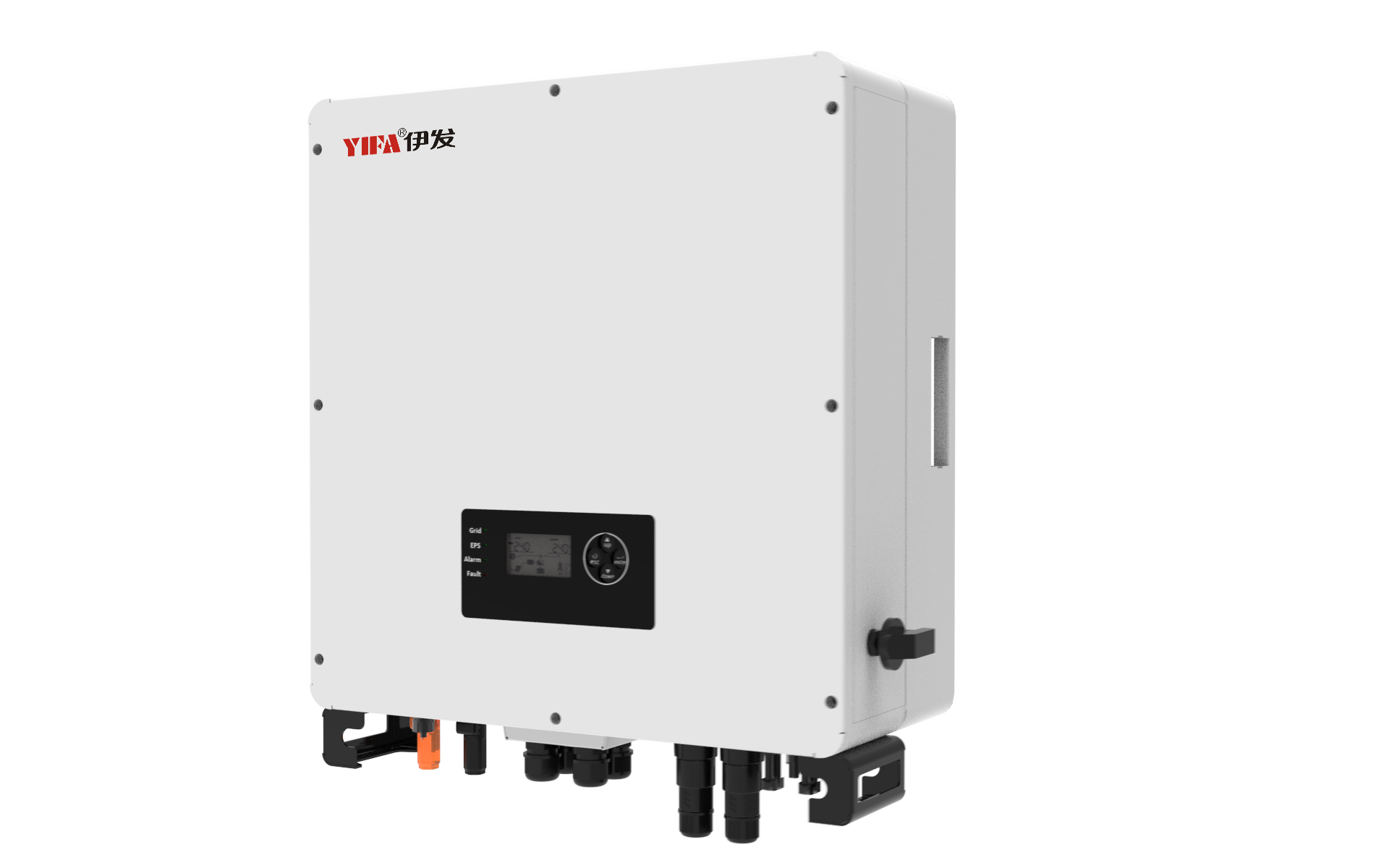

Product Advantage
Flexible Rate Tariff Charge from the grid at off-peak times when energy is cheaper,and discharge at peak times when energy is more expensive. Physical and electrical dual isolation AFCI function integration AC overcurrent,AC overvoltage,over temperature protection I P 65 protection grade. Multiple working modes iHESS series supports four working modes 1.Self Use 2.Time of Use 3.Backup Power 4.Grid Priority .And we also provide backup load with a transfer time less than 10 ms.
Outline And Mounting Dimensions
