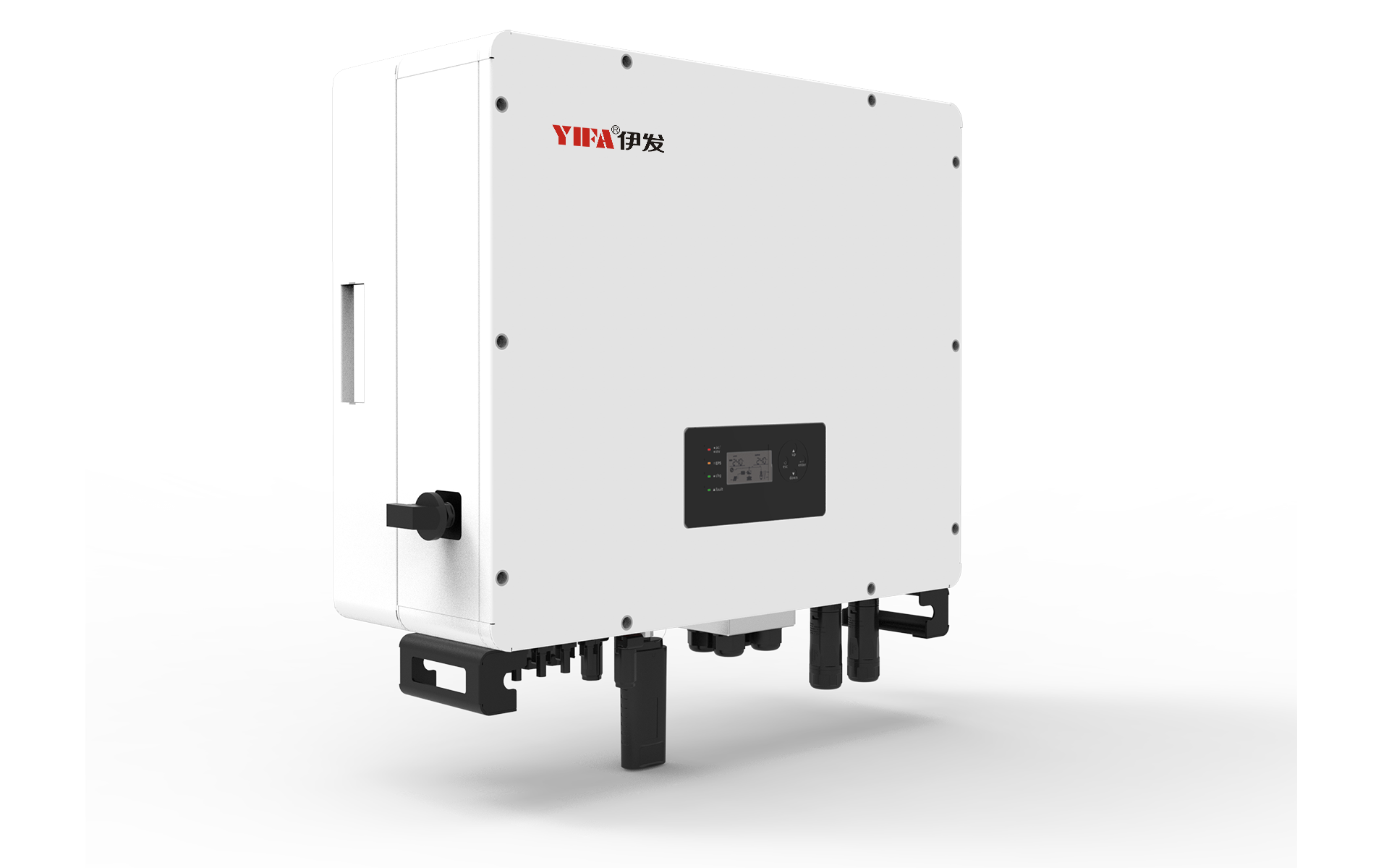

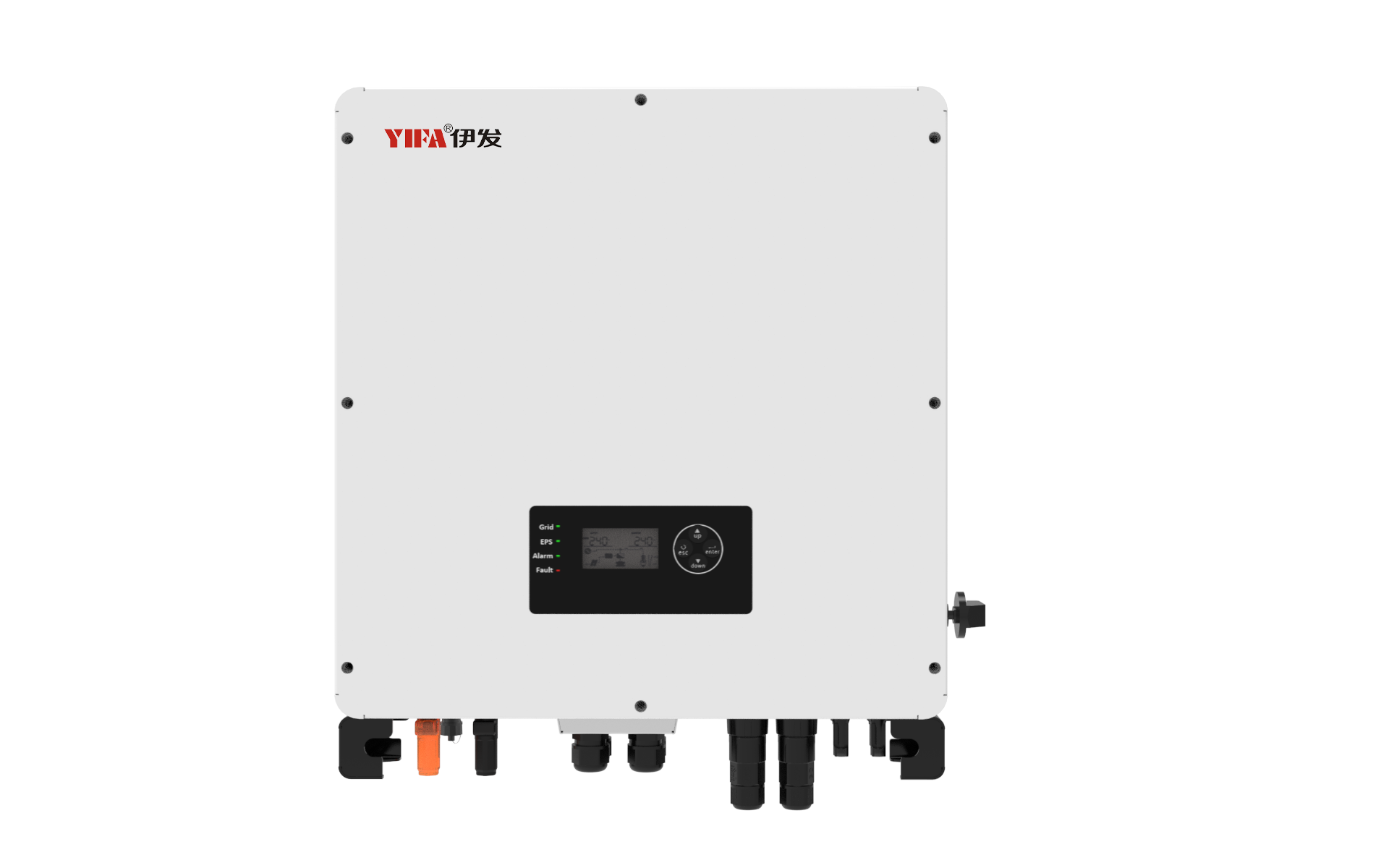

iHESS 3P-H-EU series Three Phase Residential Energy Inverter
Flexible Rate Tariff
Charge from the grid at off peak times when energy is cheaper,and discharge at peak times when energy is more expensive.
Safe
Physical and electrical dual isolation AFCl function integration AC overcurrent,AC overvoltage.Over temperature protection.
IP 65 protection grade
Multiple working four modes
iHESS series supports four working modes
1.Self Use 2.Time of Use
3.Backup Power 4.Grid Priority
Quick backup
Provides backup load with a transfer time less than 10 ms.

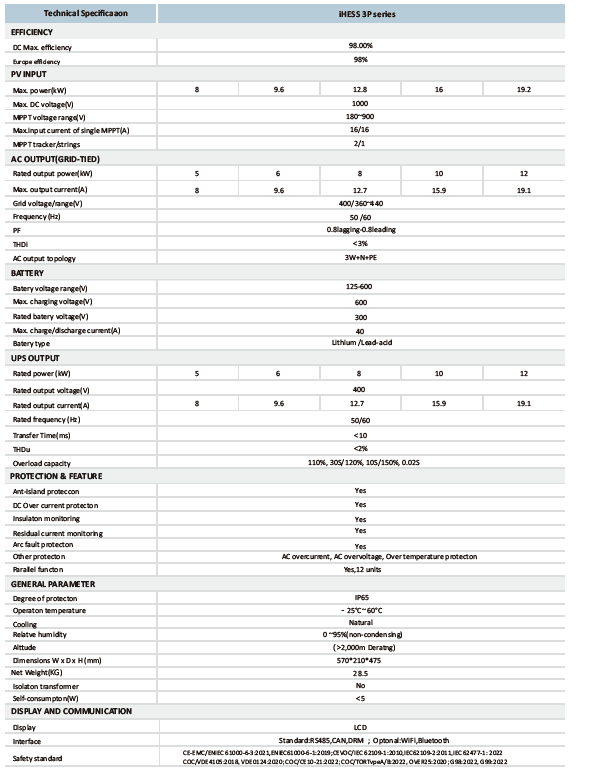

Specification Parameter
| Technical Specification | IHESS3Pseries | |||||||
| EFFICIENCY | ||||||||
| DC Max efficiency | 98.00% | |||||||
| Europe efficiency | 98% | |||||||
| PV INPUT(PV) | ||||||||
| Max power(kw) | 8 | 9.6 | 128 | 16 | 192 | |||
| Max DC voltage(V) | 1000 | |||||||
| MPPT voltage range(V) | 180~900 | |||||||
| Max input current of single MPPT(A) | 16/16 | |||||||
| MPPT tracker/strings MPPT(A) | 2/1 | |||||||
| AC OUTPUT(GRID-TIED) | ||||||||
| Rated ouput power(kW) | 5 | 6 | 8 | 10 | 12 | |||
| Max output current(A) | 8 | 9.6 | 127 | 15.9 | 19.1 | |||
| Grid voltage range(V) | 400/360~440 | |||||||
| Frequency (HZ) | 50/60 | |||||||
| PF | 0.8lagging-0.8leading | |||||||
| THDi | <3% | |||||||
| AC output topology | L+N+PE | |||||||
| BATTERY | ||||||||
| Battery voltage range(V) | 125-600 | |||||||
| Max charging voltageV) | 600 | |||||||
| Rated battery voltage(V) | 300 | |||||||
| Max charge discharge current(A) | 40 | |||||||
| Battery type | LiniumLead-acid | |||||||
| UPS OUTPUT UPS | ||||||||
| Rated power (KW) | 5 | 6 | 8 | 10 | 12 | |||
| Rated ouput voltage (V) | 400 | |||||||
| Rated ouput current(A) | 8 | 9.5 | 127 | 15.9 | 19.1 | |||
| Rated frequency (Hz) | 50/60 | |||||||
| Transfer time(ms) | <10 | |||||||
| THDu | <2% | |||||||
| Overload capacity | 110%,30S/120%,10S/150%,0.02S | |||||||
| PROTECTION&FEATURE | ||||||||
| ANTI Island protection | Yes | |||||||
| DC Over current protection | Yes | |||||||
| Insulaton monitoring | Yes | |||||||
| Residual current monitoring | Yes | |||||||
| Arc fault protection | Yes | |||||||
| Other protection | AC overcurrent AC overvoltage ,Over temperature protection | |||||||
| Parallel function | Yes,12 unis | |||||||
| GENRAL PARAMETER | ||||||||
| Degree of protection | IP65 | |||||||
| Operation temperature | -25C-60°C | |||||||
| Cooling | ||||||||
| Relative humidity | 0~95%(non-condensing) | |||||||
| Altitude | (>2,000m derating) | |||||||
| Dimentions W×D×H(mm) | 570*210*475 | |||||||
| Net Weight(KG) | 28.5 | |||||||
| Isolation transfamer | No | |||||||
| Selroonsmpbor(W) | <5 | |||||||
| DISPLAY AND COMMUNICATON | ||||||||
| Display | LCD | |||||||
| Interface | StandardRS485,CANDRM;Optional WIFI,Bluetooth | |||||||
| Safety standard | CEEMCBNIEC6100-6-32021,HNEC6100-1:2Z19CEVCCIEC210912010JEO621092:2011JEC6247-1:202 CCCVDE41062018.VDE124:020;COCCE10-21:2022;COCMCRTpeAB2022,OMER2:ZD;G98:202,G9:2022 | |||||||
Product Advantage
Flexible Rate Tariff
Charge from the grid at off peak times when energy is cheaper,and discharge at peak times when energy is more expensive.
Safe
Physical and electrical dual isolation AFCl function integration AC overcurrent,AC overvoltage.Over temperature protection.
IP 65 protection grade
Multiple working four modes
iHESS series supports four working modes
1.Self Use 2.Time of Use
3.Backup Power 4.Grid Priority
Quick backup
Provides backup load with a transfer time less than 10 ms.
Outline And Mounting Dimensions
