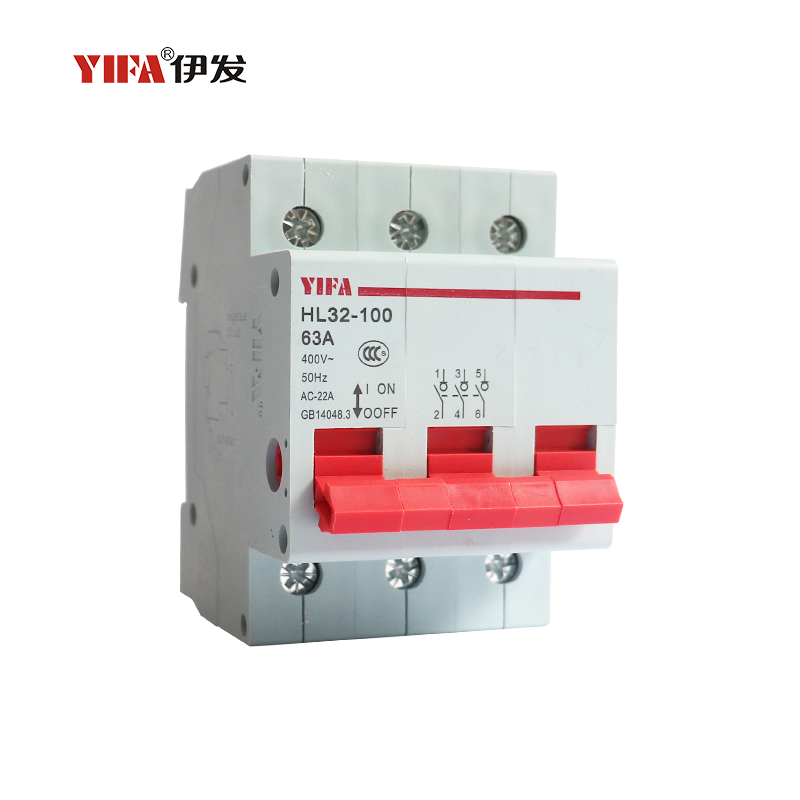

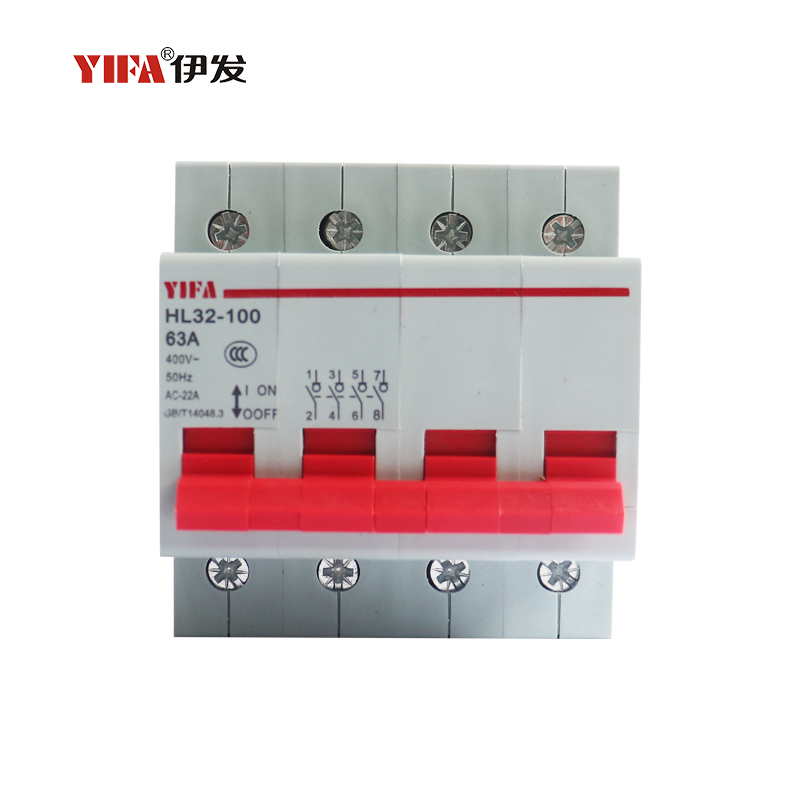

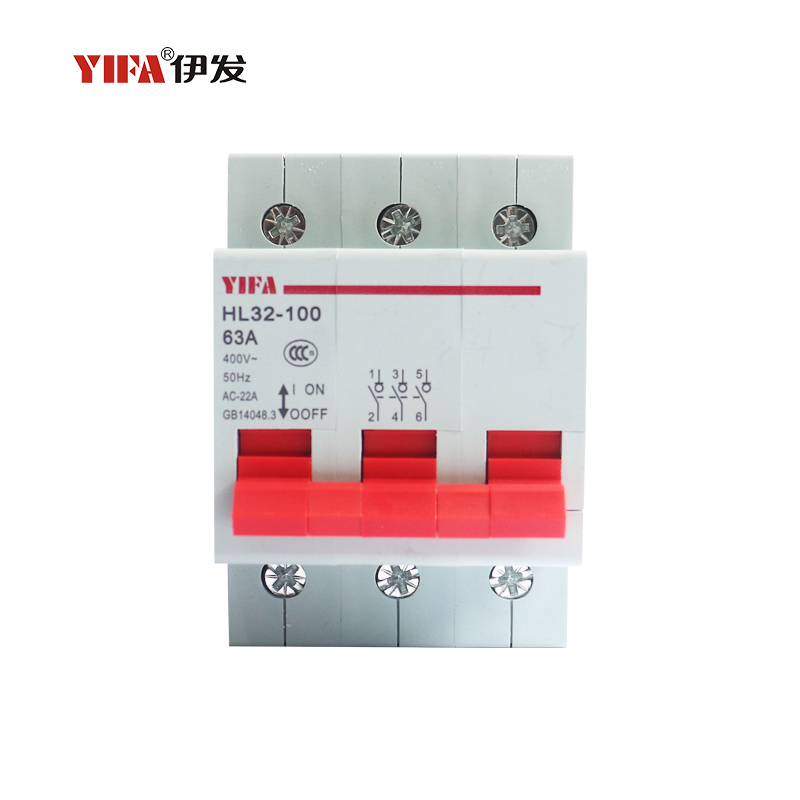

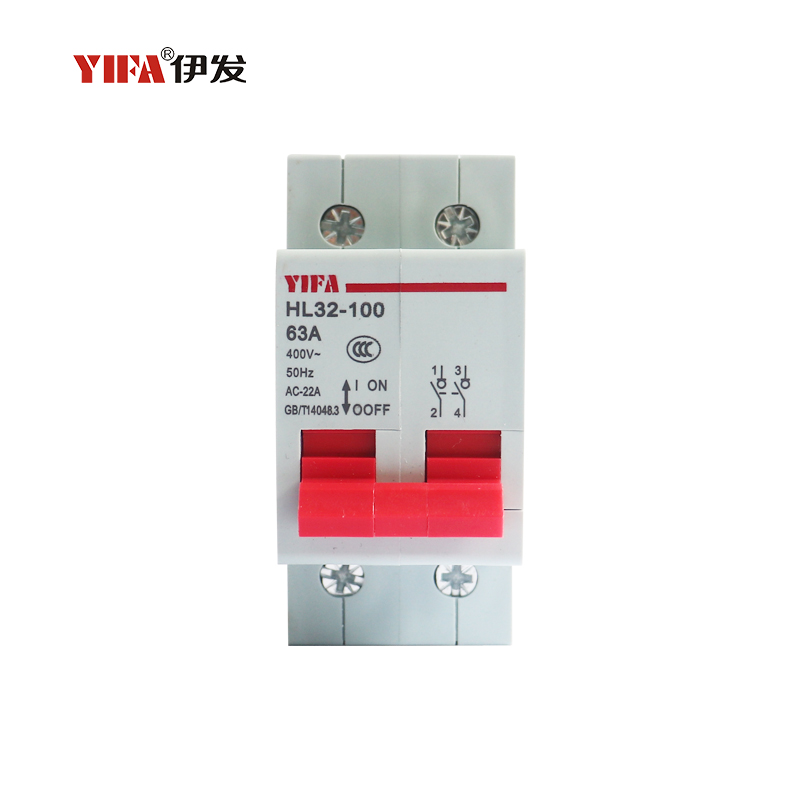

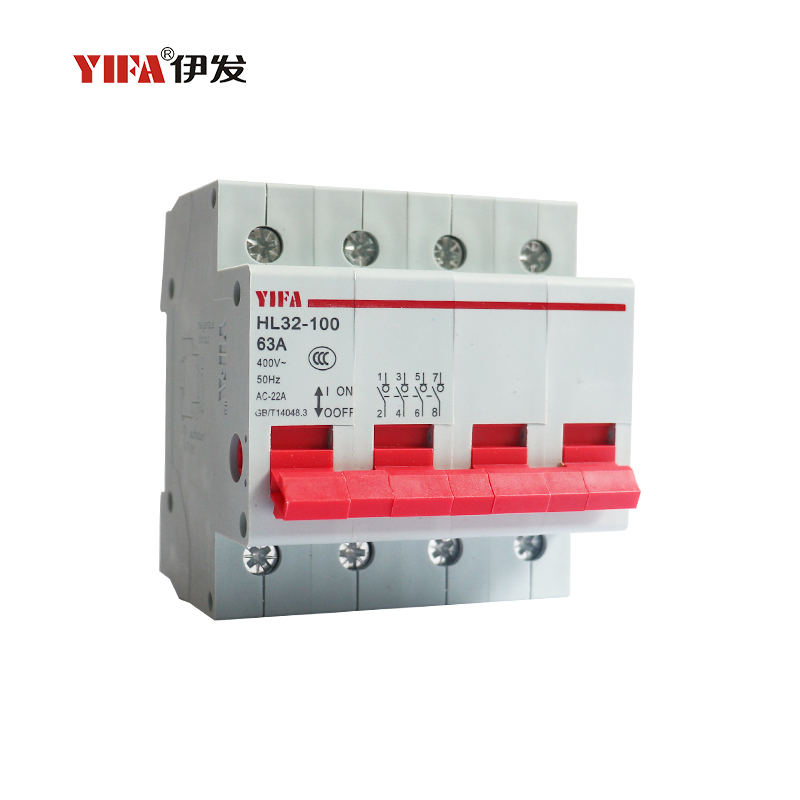

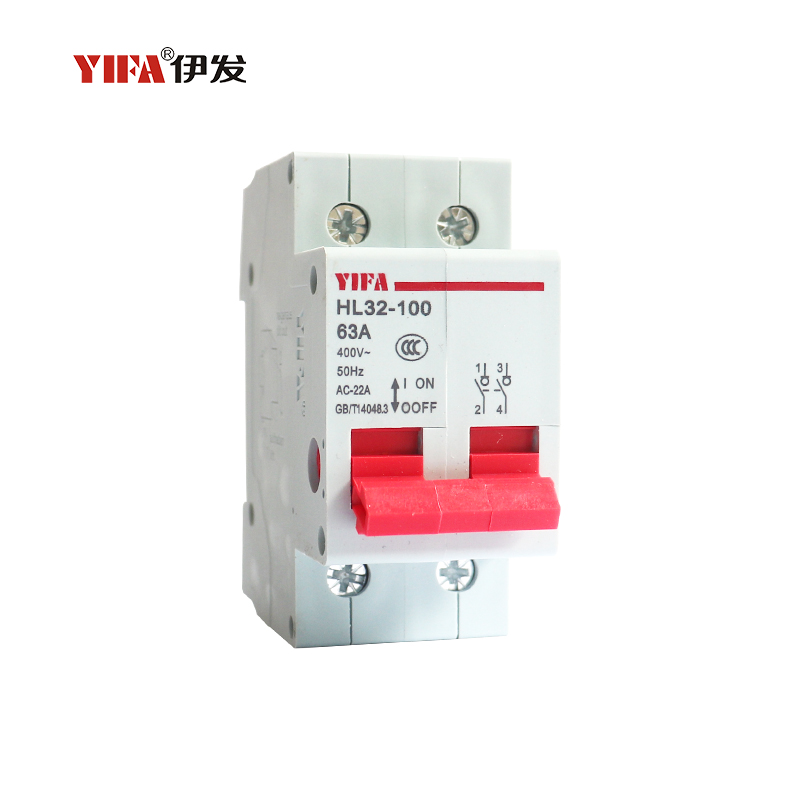

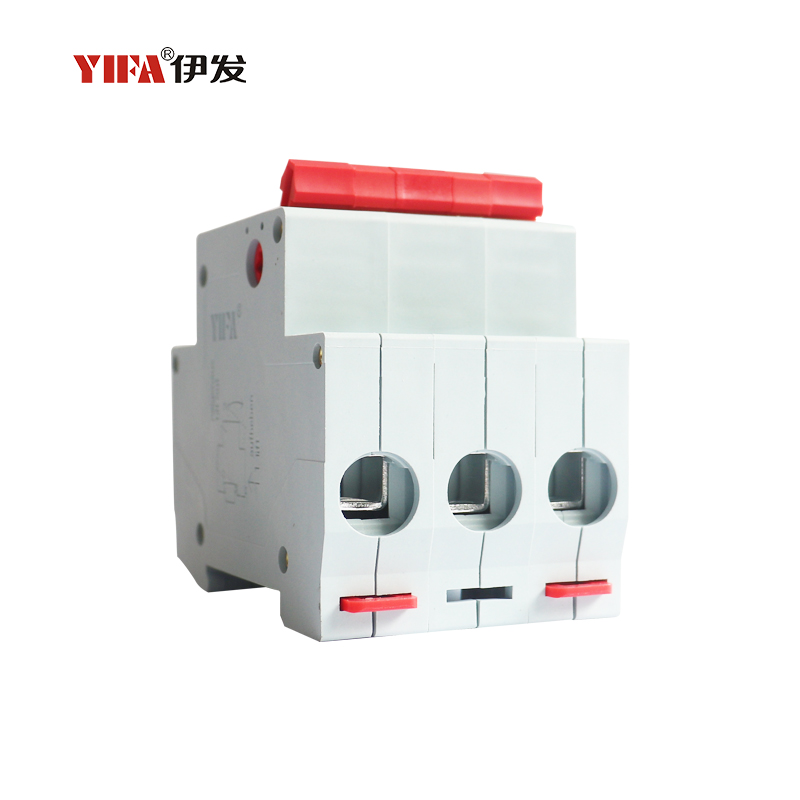

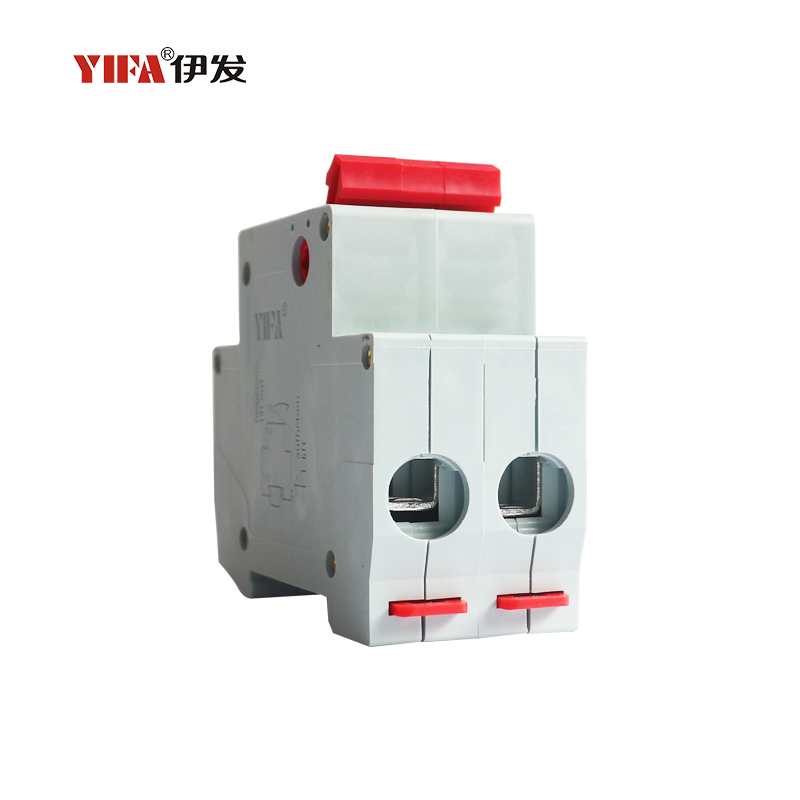

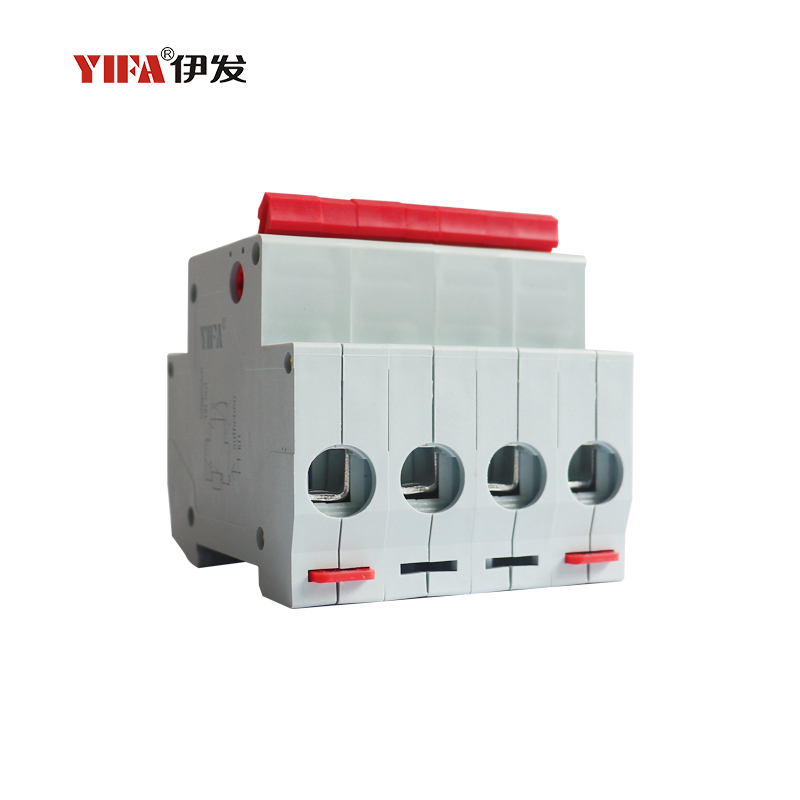

HL32-100 Series lsolation Switch
The HL32-100(lNT) series isolators are used in distribution circuits and control circuits withAC 50 or 60Hz and voltage up to 400V. it can be used as a supporting component of PZ20terminal combined electrical appliances, and can be used alone. Widely used in industrial andmining enterprises, high-rise buildings, commercial and family places.

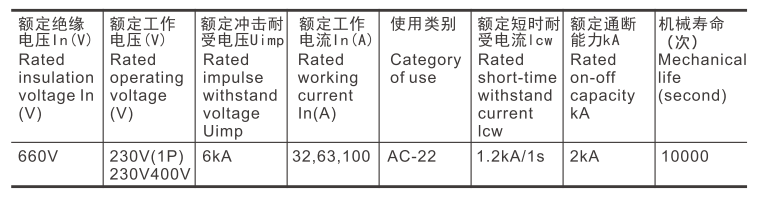

Specification Parameter
| Rated insulation voltage In (V) | Rated operating voltage (V) | Rated impulse withstand voltage Uimp | Rated working current In(A) | Category of use | Rated short-time withstand current Icw | Rated on-off capacity kA | Mechanical life (second) |
| 660V | 230V(1P) 230V 400V | 6kA | 32,63,100 | AC-22 | 1.2kA/1s | 2kA | 10000 |
Product Advantage
lt is installed with TH35-7.5 steel mounting rail. Products comply with GB/T14048.3,IEC60947-3 and other standards.
Widely used in
1.industrial andmining enterprises
2.high-rise buildings
3.commercial family places.

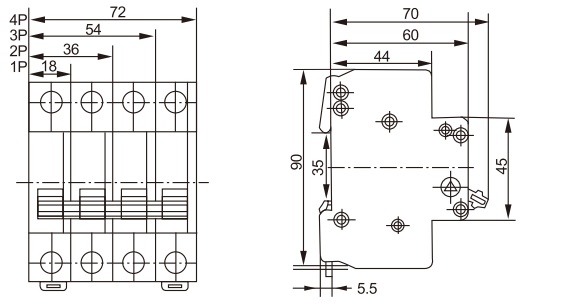

Outline And Mounting Dimensions
