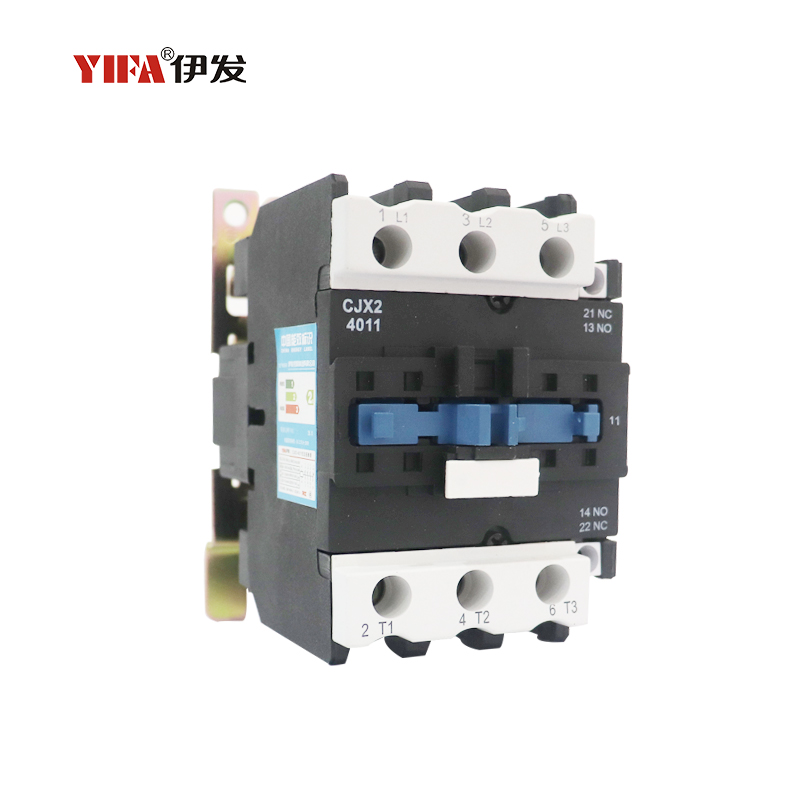

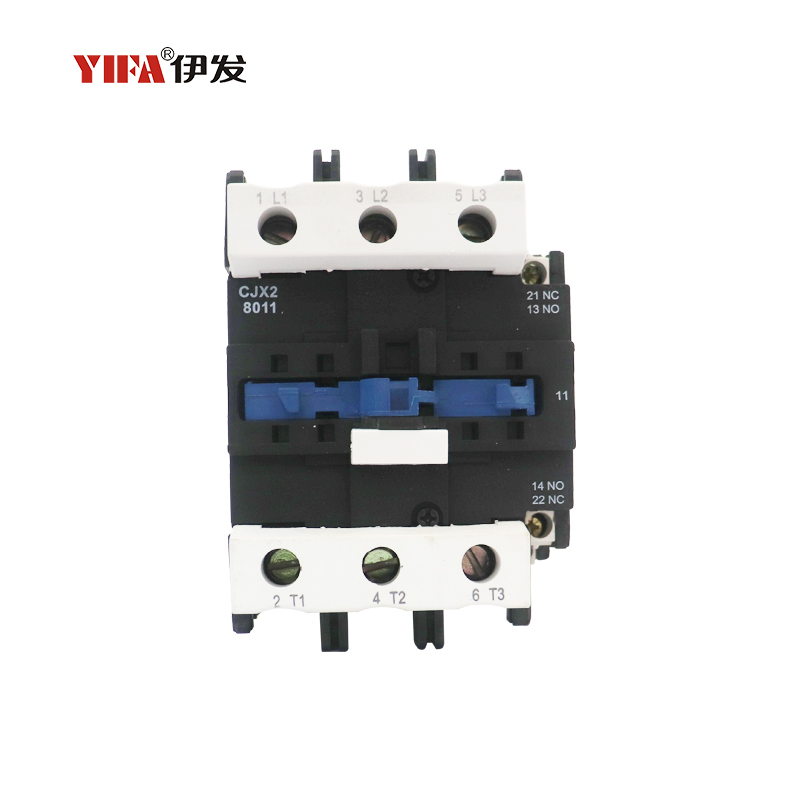

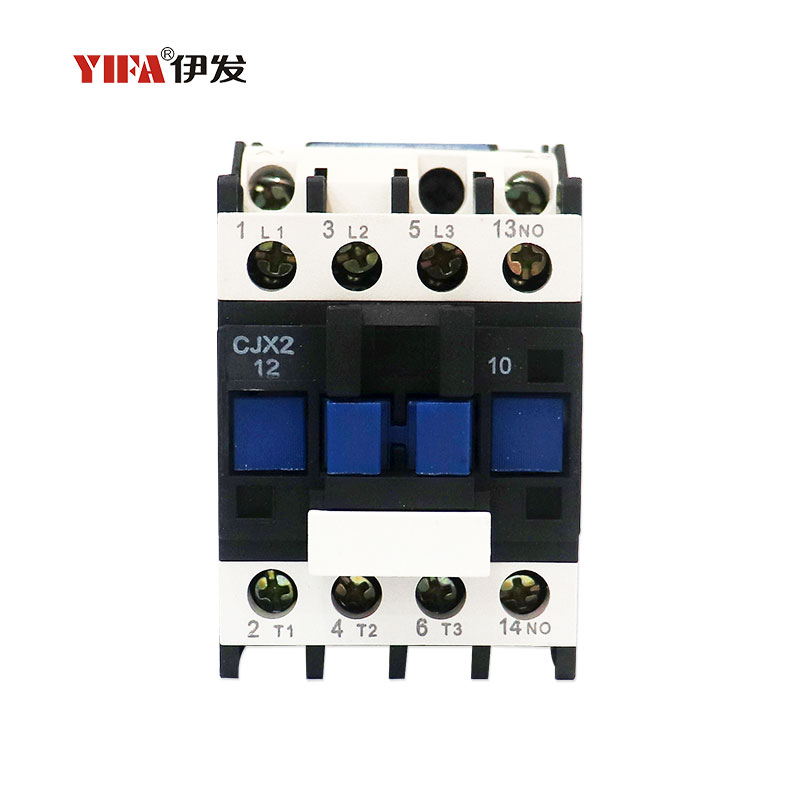

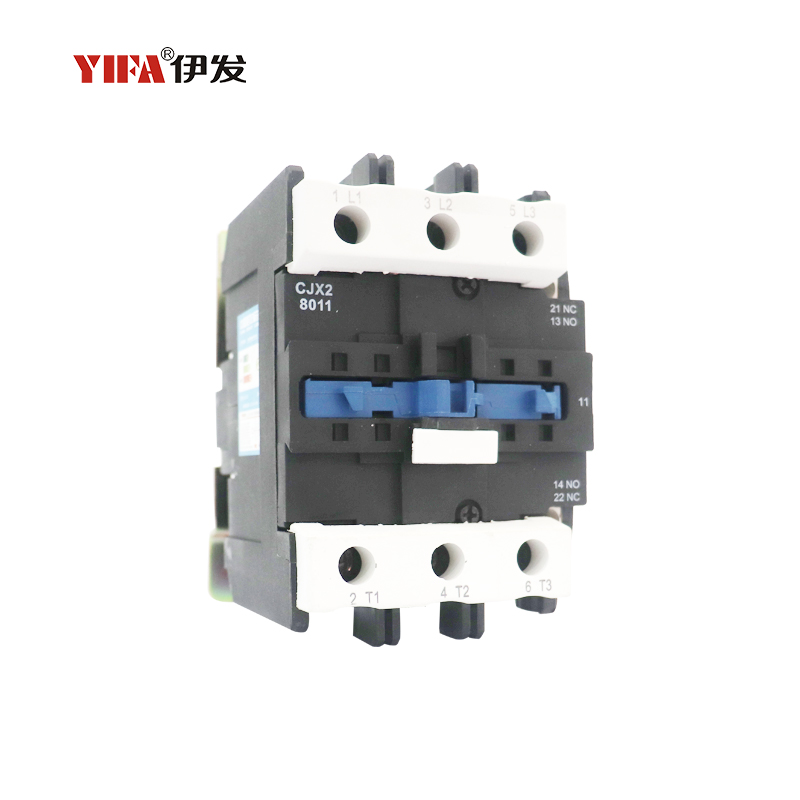

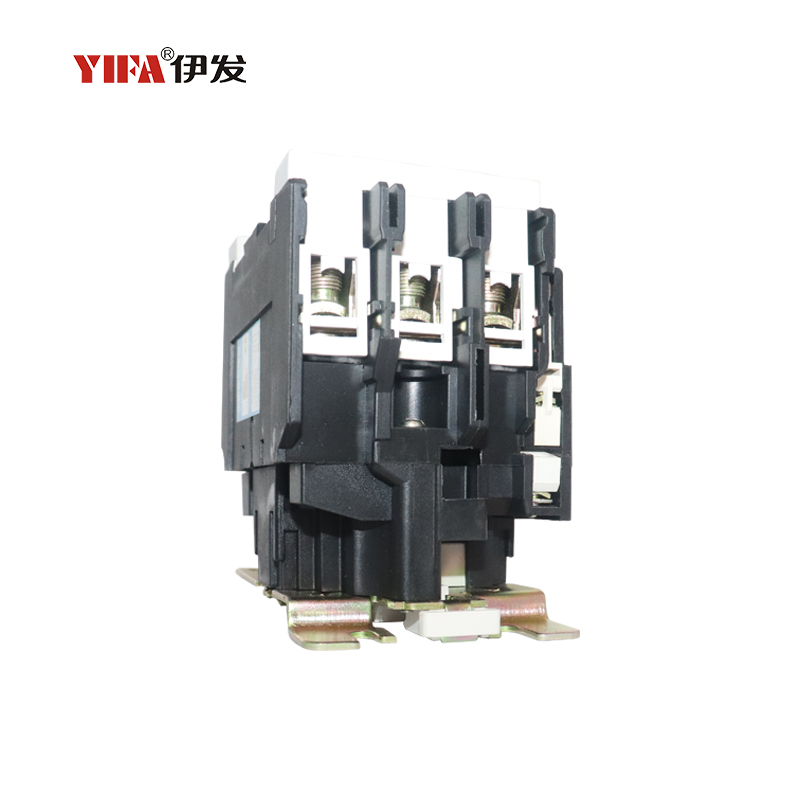

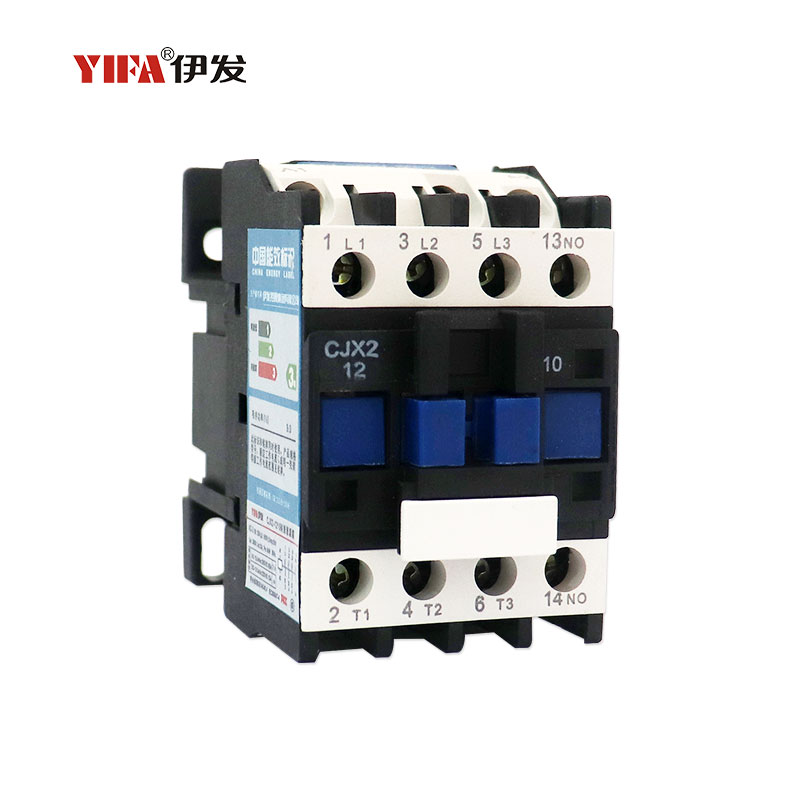

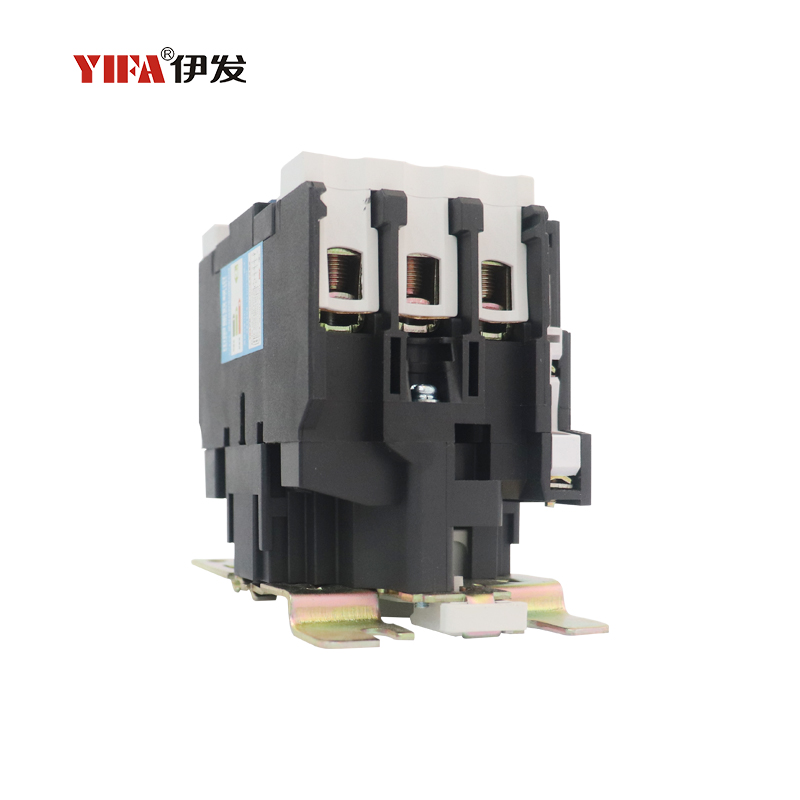

CJX2 Series AC Contactor

CJX2 series AC contactor (hereinafter referred to as contactor), mainly used for AC 50Hz or60Hz rated working voltage to 660V, rated working current from 9 to 95A in the AC-3 categoryof rated working voltage to 380V, for long-distance connecting and breaking the circuit, anosuitable for frequent start and control of AC motor.The contactor and the thermal relay can be connected to form an electromagnetic starter, ifthe air delay head can be added to form a delay contactor, in addition, the number of auxiliarycontacts can be increased, and an auxiliary contact group can be added. A reversiblecontactor or a star triangle starter can also be assembled by adding a mechanical interlockingmechanism between two contactors of the same model.

  • CJX2 Series AC Contactor
  • CJX2 Series AC Contactor
  • CJX2 Series AC Contactor
Inquire
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor
CJX2 Series AC Contactor

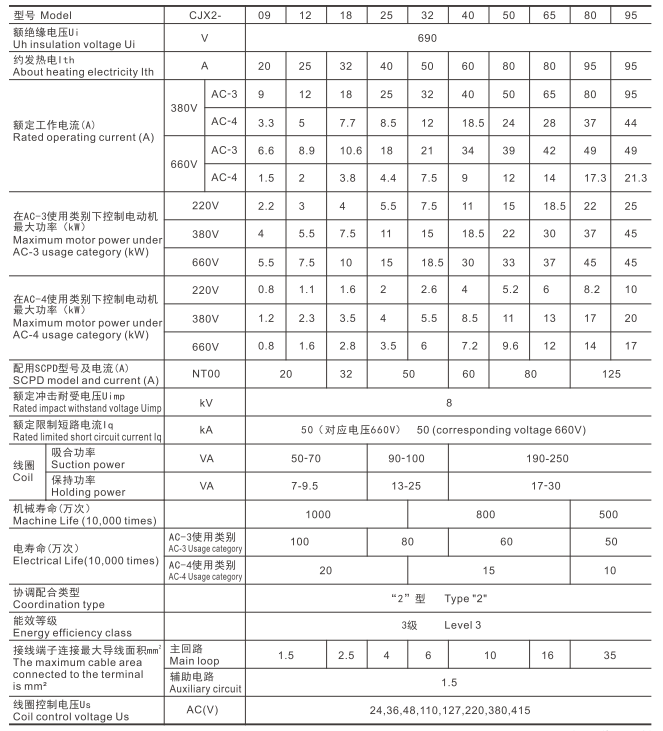

Specification Parameter

ModelCJX2-09 12 18 25 32 40 50  65 80  95
insulation voltage UiV690
About heating electricity IthA20 25 32 40 50 60 80  80 95  95
Rated operating current(A)380VAC-312 18 25 32 40 50  65 80  95
AC-43.3 7.7 8.5 12 18.5 24  28 37  44
660VAC-36.6 8.9 10.6 18 21 34 39  42 49  49
AC-41.5 3.8 4.4 7.5 12  14 17.3  21.3
Maximum motor power under
AC-3usage category(kW)
220V2.2 5.5 7.5 11 15  18.5 22  25
380V5.5 7.5 11 15 18.5 22  30 37  45
660V5.5 7.5 10 15 18.5 30 33  37 45  45
Maximum motor power under
AC-4usage category(kW)
220V0.8 1.1 1.6 2.6 5.2  6 8.2  10
380V1.2 2.3 3.5 5.5 8.5 11  13 17  20
660V0.8 1.6 2.8 3.5 7.2 9.6  12 14  17
SCPD model and current(A)NT0020 32 50 60 80 125
Rated impact withstand voltage UimpkV
Rated limited short circuit current lqkA50(corresponding voltage660V)
CoilSuction powerVA50-7090-100190-250
Holding powerVA7-9.513-2517-30
Machine Life(10,000 times)
1000 800 500
Electrical Life(10,000 times)AC-3Usage category100 80    60 50
AC-4Usage category20 15 10
Coordination type
   Type"2"
Energy efficiency class
  Level3
The maximum cable area
connected  to  the  terminal
is  mm²
Mainloop1.5 2.5 10  16 35
Auxiliary circuit1.5
Coil control voltage UsAC(V)24,36,48,110,127,220,380,415


Product Advantage

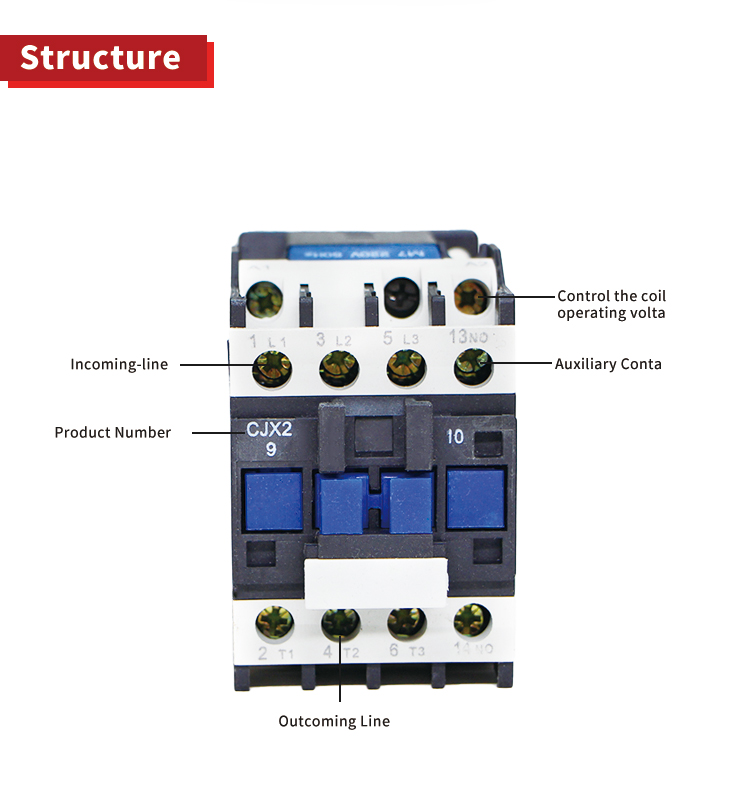

CJX2 series AC contactor (hereinafter referred to as contactor), mainly used for AC 50Hz or60Hz rated working voltage to 660V, rated working current from 9 to 95A in the AC-3 categoryof rated working voltage to 380V, for long-distance connecting and breaking the circuit, and suitable for frequent start and control of AC motor.

Product Advantage
The contactor and the thermal relay can be connected to form an electromagnetic starter, if the air delay head can be added to form a delay contactor, in addition, the number of auxiliarycontacts can be increased, and an auxiliary contact group can be added. A reversible contactor or a star triangle starter can also be assembled by adding a mechanical interlocking mechanism between two contactors of the same model.

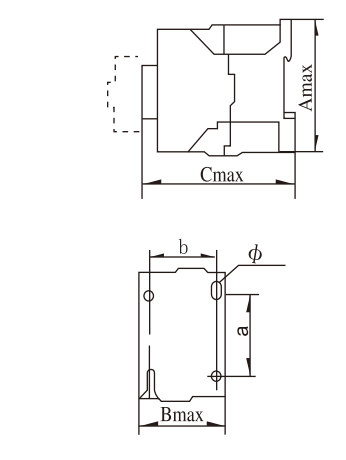

Outline And Mounting Dimensions

1742441518745
