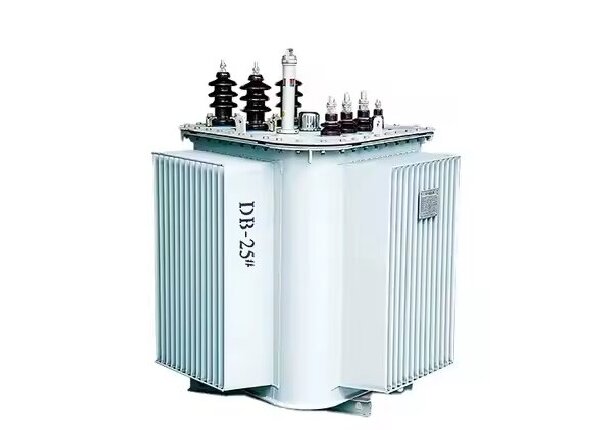

10KV Triangular 3D Roll-Core Transformer
S13-MRL series three-dimensional triangular roll-core transformer breaks through the traditional planar structure and adopts three-phase symmetrical three-dimensional structure.Applicable to power supply network with voltage of 35KV and below, frequency of 50Hz, 60Hz. Low-voltage output 400V, distribution transformer with a capacity of 10 ~ 1600KVA.

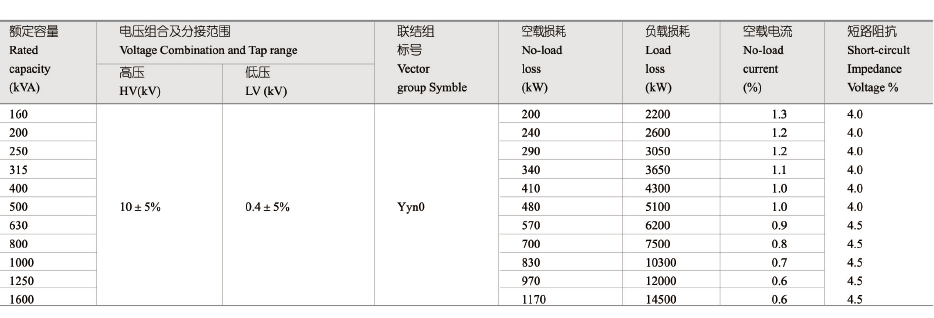

Specification Parameter
Product Advantage
1. Energy saving and low consumption,less noise
2. Balance of three phases
3. Stable quality and high production efficiency
4. Strong short-circuit resistance
5. Burglars prevention
6. Little occupied area and nice appearance
7. Good product economy and high performance-price ratio
