In modern electrical power distribution systems, reliability, safety, and flexibility are critical. Whether in urban networks, industrial complexes, or renewable energy systems, consistent and secure power delivery is essential. One piece of equipment that plays a pivotal role in achieving this goal is the Ring Main Unit (RMU).
RMUs have become a cornerstone of medium-voltage (MV) power distribution, ensuring continuous power flow even when parts of the network need maintenance or encounter faults. This article explains what a Ring Main Unit is, how it works, and why it is a key component in today’s smart and resilient power grids.

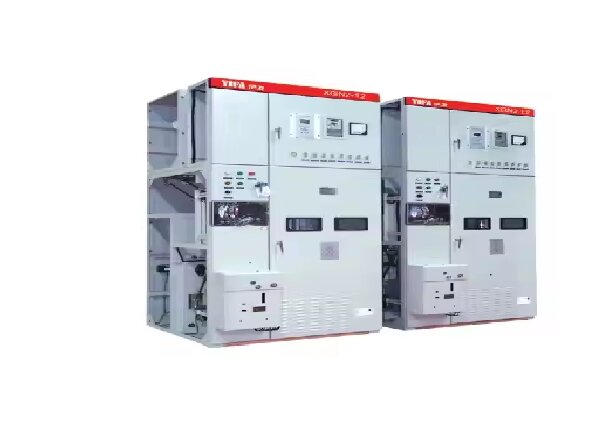

A Ring Main Unit (RMU) is a compact, sealed switchgear assembly used in medium-voltage electrical power distribution networks, typically up to 36kV. It enables a continuous power supply by allowing the flow of electricity through a “ring” network — where power can enter and exit the system from two or more directions.
The key concept behind the RMU is redundancy. If one side of the ring fails or requires maintenance, power can still be supplied from the other direction, ensuring uninterrupted service. This makes RMUs especially valuable in urban power grids, industrial plants, and other installations where downtime is costly or unacceptable.
RMUs are often used in secondary distribution systems, providing switching, protection, and isolation functions for transformers and feeders. They are fully enclosed in metal or insulated with SF₆ gas, air, or vacuum, making them safe, compact, and low maintenance.
A standard RMU consists of several essential components integrated within a compact housing. These include:
Load Break Switch (LBS): Enables safe manual or automatic disconnection of circuits under load conditions.
Circuit Breaker or Fuse Switch: Provides protection against overloads and short circuits.
Busbars: Distribute electrical current internally between the switches and protection devices.
Earthing Switch: Ensures safe grounding during maintenance or isolation.
Cable Terminations: Connect incoming and outgoing cables to the distribution network.
Insulation Medium: Typically SF₆ gas, vacuum, or air — used to insulate live parts and prevent arc flash.
RMUs are available in different configurations, such as 2-way, 3-way, or 4-way units, depending on the number of feeders and functions required. Their modular and compact design makes them ideal for space-constrained environments like urban substations, hospitals, and high-rise buildings.
The working concept of an RMU is based on the ring network — a closed loop that connects multiple distribution transformers or substations. Power flows through the ring, and each point in the network can be isolated without interrupting the overall supply.
Here’s how it works:
Normal Operation: Electricity flows from the primary substation through the ring network to different loads. Both incoming and outgoing feeders of the RMU are energized, allowing current to flow through either side.
Fault or Maintenance Condition: When a fault occurs on one side, the faulty section is isolated using the load break switch or circuit breaker. The remaining section continues to receive power from the other direction, ensuring uninterrupted supply.
Restoration: After the fault is cleared or maintenance is completed, the isolated section is reconnected to restore full ring operation.
This dual-feed design makes RMUs particularly valuable for ensuring high power reliability in distribution systems.
RMUs come in various types, each suited to different operating conditions and environments. The three main types are:
a. Gas-Insulated RMU (SF₆ Type)
Gas insulated ring main unit uses sulfur hexafluoride (SF₆) gas as the insulation and arc-quenching medium.
Extremely reliable and compact, ideal for high-density urban substations.
Offers long service life and low maintenance.
However, SF₆ is a greenhouse gas, so environmental considerations are important.
b. Air-Insulated RMU
Air insulated ring main unit uses air as the insulation medium.
More economical and easier to maintain compared to gas-insulated types.
Typically larger in size, making them suitable for rural or outdoor installations.
c. Vacuum-Insulated RMU
Employs vacuum interrupters for arc extinction.
Environmentally friendly with minimal maintenance requirements.
Increasingly popular as an alternative to SF₆ units in eco-conscious power systems.
Each type has its strengths, and the choice depends on installation space, budget, environmental factors, and operational requirements.
The Ring Main Unit offers several advantages that make it indispensable in modern distribution systems:
High Reliability: The dual-feed configuration ensures uninterrupted power even when one section is under maintenance.
Compact and Space-Saving: RMUs combine multiple switching and protection functions within a small footprint, ideal for confined spaces.
Enhanced Safety: Fully enclosed and insulated systems protect operators from electrical hazards.
Low Maintenance: Sealed designs minimize exposure to dust, moisture, and contaminants.
Operational Flexibility: RMUs can be easily integrated or expanded to adapt to future network growth.
Reduced Downtime: Quick isolation of faults prevents extended power outages.
By combining safety, reliability, and efficiency, RMUs help utilities and industries maintain stable power distribution with minimal disruption.
Ring Main Units are used in a wide range of electrical distribution scenarios:
Urban Power Networks: Ensures reliable electricity delivery to residential and commercial buildings.
Industrial Complexes: Supports continuous operations in manufacturing plants, data centers, and factories.
Renewable Energy Systems: Connects solar or wind farms to the grid with flexible and secure switching.
Underground Substations: Compact and sealed RMUs are ideal for underground or indoor installations.
Critical Infrastructure: Hospitals, airports, metro systems, and telecommunications centers rely on RMUs for uninterrupted power.
The versatility and reliability of RMUs make them a key component of both traditional and modern smart grids.
While RMUs are designed for minimal maintenance, correct installation and periodic inspection are crucial:
Site Selection: Choose a dry, ventilated area with adequate space for operation and cable termination.
Connection: Ensure proper alignment with transformer or feeder lines and secure grounding.
Routine Inspection: Periodically check insulation integrity, switch operation, and pressure levels (for SF₆ units).
Environmental Considerations: Follow regulations for handling SF₆ gas and ensure leak detection systems are in place.
Safety Measures: Always isolate the RMU before maintenance and follow lockout-tagout (LOTO) procedures.
Proper installation and maintenance extend the lifespan of RMUs and ensure consistent performance.
As the electrical industry moves toward smart grids and sustainability, RMU technology is also evolving:
SF₆-Free RMUs: Manufacturers are developing eco-friendly alternatives using clean air or other insulating gases to reduce environmental impact.
Smart ring main unit: Integration with digital monitoring systems enables real-time fault detection, load management, and predictive maintenance.
Remote Operation: Advanced RMUs can be controlled remotely, improving grid responsiveness and reducing manual intervention.
Modular Designs: Allow easy expansion and customization to meet specific project needs.
These advancements are transforming RMUs from passive devices into intelligent components of smart distribution networks.
The Ring Main Unit (RMU) plays a vital role in ensuring reliable, safe, and efficient medium-voltage power distribution. By maintaining power continuity during faults or maintenance, RMUs enhance the overall resilience of electrical networks. Their compact design, operational flexibility, and low maintenance make them ideal for diverse applications — from industrial power systems to renewable energy grids.
As power systems evolve toward smarter, greener technologies, modern RMUs will continue to adapt with digital monitoring, automation, and environmentally friendly insulation.
At YIFA, we specialize in the development and manufacturing of high-quality Ring Main Units and other medium-voltage switchgear solutions designed for superior reliability and performance. Our RMUs are engineered to meet the demands of modern power networks — combining safety, innovation, and sustainability to help our customers build a more efficient and resilient electrical future.
