Electricity powers almost every aspect of modern life—from household appliances to industrial machinery. However, with this convenience comes the risk of overloads, short circuits, and electrical faults that can cause severe damage or even fire hazards. To mitigate these dangers, protective devices such as fuses and circuit breakers are essential. Among them, the Miniature Circuit Breaker (MCB) has become one of the most widely used solutions for low-voltage applications. But what exactly is an MCB, how does it work, and why is it so important in electrical systems?
This article provides a complete guide to MCBs, covering their definition, working principle, features, advantages, and practical applications.

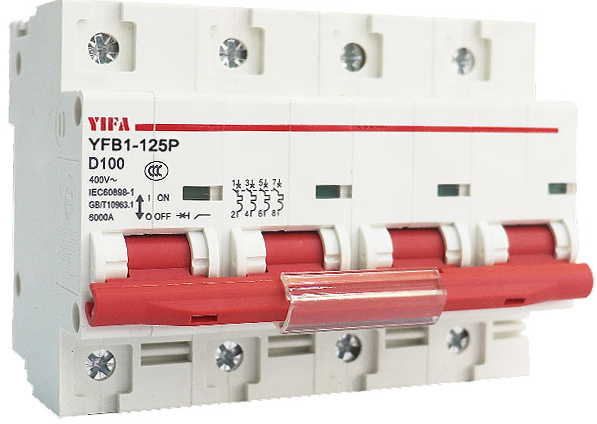

A Miniature Circuit Breaker is an automatically operated electrical switch designed to protect an electrical circuit from damage caused by excess current, typically due to overload or short circuit. Unlike traditional fuses, which must be replaced once blown, an MCB can simply be reset after tripping, making it both convenient and cost-effective.
MCBs are designed for low-voltage applications, usually below 100 amps, and are commonly found in residential, commercial, and light industrial systems. They provide quick response to overcurrent situations, ensuring both equipment safety and user protection.
In simple terms, an MCB acts as a gatekeeper—it allows the normal flow of current but immediately cuts off power when abnormal conditions occur.
The importance of an MCB lies in its ability to prevent:
Electrical fires – caused by overheating wires due to excessive current.
Equipment damage – preventing sensitive devices from being destroyed by power surges.
Personal injury – reducing the risk of electric shock or fire accidents.
By providing both overload protection and short-circuit protection, MCBs ensure electrical systems remain safe and reliable. They also comply with modern safety standards, making them essential for any new building or electrical upgrade.
An MCB works by detecting abnormal current flow and interrupting it. The mechanism inside an MCB typically consists of two main protection methods:
Thermal Protection (Overload)
Uses a bimetallic strip that bends when heated by excessive current.
When the strip bends beyond a certain point, it trips the switch mechanism and disconnects the circuit.
This protects against prolonged overcurrent, such as when too many appliances are connected to one outlet.
Magnetic Protection (Short Circuit)
Uses an electromagnet that generates a magnetic field when current flows.
In the event of a sudden surge (like a short circuit), the magnetic force is strong enough to instantly trip the mechanism.
This provides instantaneous protection against dangerous faults.
Resetting the MCB
Unlike fuses that must be replaced, an MCB can be reset by simply flipping the switch back to the “ON” position after the fault has been cleared. This makes it far more convenient and cost-effective.
MCBs are categorized based on their trip characteristics, which determine how quickly they respond to overcurrents. The most common types are:
Type B MCB – Trips between 3 to 5 times the rated current. Suitable for domestic applications with resistive loads like lights and heaters.
Type C MCB – Trips between 5 to 10 times the rated current. Ideal for commercial and industrial applications with inductive loads like motors.
Type D MCB – Trips between 10 to 20 times the rated current. Used in specialized industrial environments with high inrush current equipment such as transformers and welding machines.
Choosing the right type depends on the application and nature of the electrical load.
MCBs offer several advantages over traditional fuses and other protective devices:
Reusability – Can be reset after tripping, eliminating the need for replacements.
Quick Response – Provides fast disconnection during short circuits.
Safety – Prevents fire hazards and protects appliances and wiring.
Convenience – Simple on/off switch mechanism for operation.
Durability – Can withstand multiple tripping events without damage.
Customization – Available in different ratings and trip characteristics to suit various needs.
These features make MCBs the go-to solution for modern electrical protection.
MCBs are versatile and used in a wide range of environments:
Residential buildings – Protecting household wiring and appliances.
Commercial establishments – Offices, shopping malls, and schools where consistent electrical safety is critical.
Industrial settings – For machinery and equipment with moderate current requirements.
Lighting circuits – Ensuring safe operation of large-scale lighting systems.
Renewable energy systems – Providing circuit protection in solar panel and wind turbine setups.
Their adaptability makes them one of the most common protective devices worldwide.
When selecting an MCB, consider the following factors:
Rated Current (In) – The maximum current the MCB can carry without tripping.
Breaking Capacity (Icu) – The maximum fault current the MCB can interrupt safely.
Trip Curve – Choosing Type B, C, or D depending on the load type.
Number of Poles – Single-pole (SP), double-pole (DP), triple-pole (TP), or four-pole (4P) depending on the system requirements.
Application Environment – Residential, commercial, or industrial.
Consulting a qualified electrician ensures the right choice for maximum safety.
While both MCBs and fuses protect circuits, MCBs are generally preferred because:
They are easier to reset after tripping.
They provide greater precision in protection.
They are longer lasting compared to one-time-use fuses.
They allow for better customization through different trip curves and ratings.
As a result, MCBs have largely replaced fuses in modern installations.
With the rise of smart homes, renewable energy, and increasing energy demands, MCB technology is also evolving. Modern MCBs may include features such as:
Remote monitoring and control.
Integration with smart energy management systems.
Enhanced safety with arc fault detection.
This ensures MCBs will remain an integral part of safe and efficient electrical systems for years to come.
A Miniature Circuit Breaker (MCB) is a compact yet powerful device that ensures electrical safety by protecting against overloads and short circuits. Its reliability, ease of use, and reusability make it indispensable in residential, commercial, and industrial applications.
As electrical systems become more advanced, MCBs continue to evolve, providing smarter and more efficient protection. Whether you are designing a home, office, or industrial facility, choosing the right MCB ensures both safety and peace of mind.
At YIFA Electric, we are dedicated to delivering high-quality electrical protection solutions, including advanced MCBs tailored to meet diverse application needs. With a commitment to innovation and safety, we help our customers build reliable and secure electrical systems worldwide.
