How to choose the right ZW32 Outdoor Pole-mounted Vacuum Circuit Breakers?

Outdoor medium&high-voltage grids face harsh environments and fault risks (overloads, short circuits), requiring specialized protective switches. YIFA ZW32 Outdoor Pole-mounted Vacuum Circuit Breaker (VCB) is a widely used solution. This article covers its core definition, working principle, advantages, applications, and selection tips.

This guide simplifies key information of ZW32 VCBs while retaining critical details.

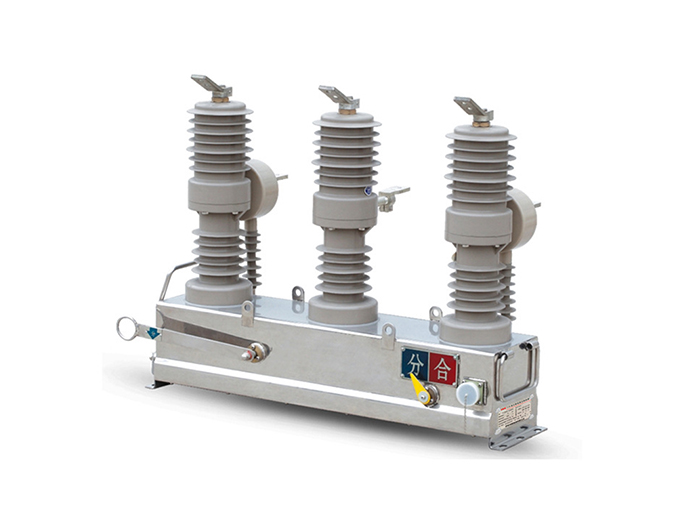

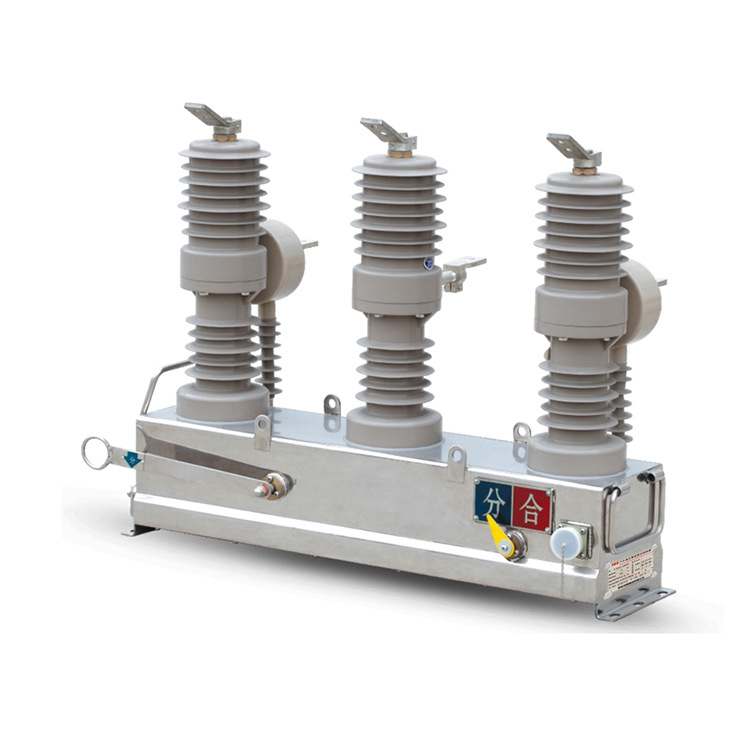

1. What are ZW32 Outdoor Pole-mounted Vacuum Circuit Breakers?

The ZW32 is an automatic high-voltage switch for outdoor pole-mounted installation in medium-voltage grids (typically 12kV, 3-phase AC 50Hz). Its model follows Chinese standards: “Z”=vacuum, “W”=outdoor, “32”=design sequence, and the suffix indicates rated voltage.

Sealed to resist outdoor harsh conditions, it switches load current, interrupts faults, and integrates with controllers as an auto-recloser/sectionalizer for smart grid automation.

It guards outdoor lines by cutting power immediately during abnormalities to protect the grid.

2. Why are ZW32 VCBs Important?

It addresses outdoor distribution challenges and prevents key risks:

• Avoids widespread outages from line faults.

• Protects high-voltage equipment from abnormal currents.

• Eliminates fire/explosion risks (oil-free design).

• Ensures grid stability by isolating faults and supporting self-healing.

Compliant with international standards, it is essential for grid upgrading projects.

3. How do ZW32 Outdoor VCBs Work?

It detects abnormal current and interrupts circuits reliably, with two core mechanisms:

Vacuum Arc-Extinguishing Principle

A sealed vacuum interrupter extinguishes arcs: contact separation generates an arc (sustained by metal vapor), which vanishes at current zero (no ionizable medium). The vacuum gap quickly restores insulation to prevent re-ignition.

Operating Mechanism

Equipped with a spring mechanism (mainstream) or optional permanent magnet mechanism, supporting manual/electric/remote control. Many models have a side-mounted isolating switch for safe maintenance.

Resetting and Automation

After fault clearance, it resets manually/remotely. Integrated with FTU and CT/PT, it achieves “four-remote” functions and acts as an auto-recloser to reduce outage time.

4. Types of ZW32 Outdoor Vacuum Circuit Breakers

Common types based on mechanism and configuration:

• YIFA ZW32-12 with Spring Mechanism: Mainstream, ~10,000 mechanical operations, suitable for most grids.

• YIFA ZW32-12 with Permanent Magnet Mechanism: 30,000+ operations, low energy, ideal for high-frequency switching/smart grids.

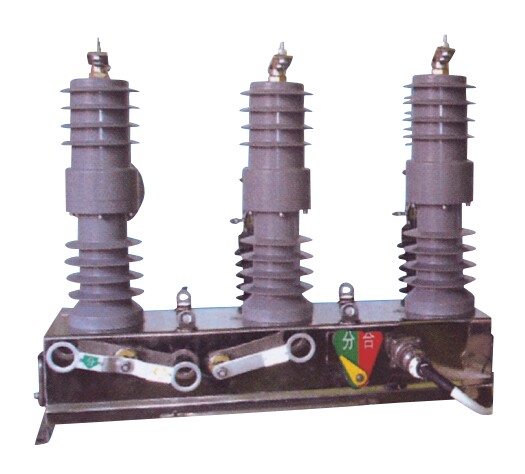

• ZW32 with Isolating Switch: Visible break for safer maintenance.

• Automation Model: Integrated with FTU/CT/PT and communication modules (IEC 60870-5, Modbus) for smart grids.

ZW32-24 (24kV) and ZW32-40.5 (40.5kV) models meet higher voltage needs.

5. Advantages of Using ZW32 Outdoor VCBs

Superior to traditional oil breakers for modern outdoor distribution:

• Eco-safe: Oil/SF₆-free, no leakage/fire risks, compliant with global standards.

• Durable: Sealed insulation, resistant to -40℃~+40℃ and pollution (grade III, customizable IV).

• Low maintenance: Sealed vacuum interrupter reduces costs and downtime.

• Compact: Lightweight, easy pole-mounted installation.

• Reliable: Fast arc extinguishing and stable dielectric strength.

• Automation-compatible: Integrates with smart grids.

• Versatile: Various ratings for different voltage/load needs.

6. Applications of ZW32 Outdoor Vacuum Circuit Breakers

Widely used in outdoor medium-voltage grids:

• Urban/rural grid upgrading (pole-mounted/section/tie switches).

• Substation outgoing line protection.

• Industrial/commercial power distribution lines.

• Renewable energy (PV/wind) output line protection.

• Smart grid automation (auto-reclosers/sectionalizers).

• Outdoor RMU function extension.

7. How to Choose the Right ZW32 VCBs

• Core principle: Choosing the right ZW32 requires aligning with application scenarios, grid parameters, environment and automation needs.

• General urban/rural grid upgrading: Prefer cost-effective ZW32-12 with spring mechanism (≈10,000 operations) for 12kV medium-voltage grids.

• Smart grids/high-frequency switching: Opt for ZW32-12 with permanent magnet mechanism (>30,000 operations, low energy).

• Maintenance safety priority (e.g., substation outgoing lines, industrial distribution): Select ZW32 with side-mounted isolating switch for visible break points.

• High-voltage needs (>12kV): Choose ZW32-24 (24kV) or ZW32-40.5 (40.5kV).

• Harsh outdoor environments: Prioritize ZW32 with enhanced sealed insulation and customizable pollution grade (up to IV).

• Smart grid integration (auto-reclosers/sectionalizers): Use automation models with FTU, CT/PT and communication modules (IEC 60870-5, Modbus).

• General requirement: All models must comply with IEC/GB standards; consult professionals for special scenarios.

8. ZW32 VCB vs. Traditional Oil Circuit Breakers: Why ZW32 is Better

ZW32 replaces oil breakers for superior performance:

Conclusion

The ZW32 is a compact, reliable, eco-friendly switch for outdoor medium-voltage grids. Its oil-free design, durability, low maintenance, and automation compatibility make it indispensable for grids, industry, and renewable energy.

As outdoor grids advance, the ZW32 provides smarter protection. Choosing the right model ensures distribution safety and reliability.

YIFA Electric delivers high-quality ZW32 breakers and comprehensive solutions, empowering secure, sustainable outdoor networks worldwide.
