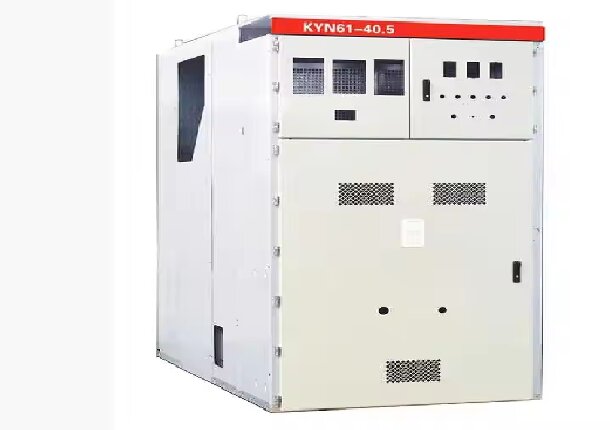

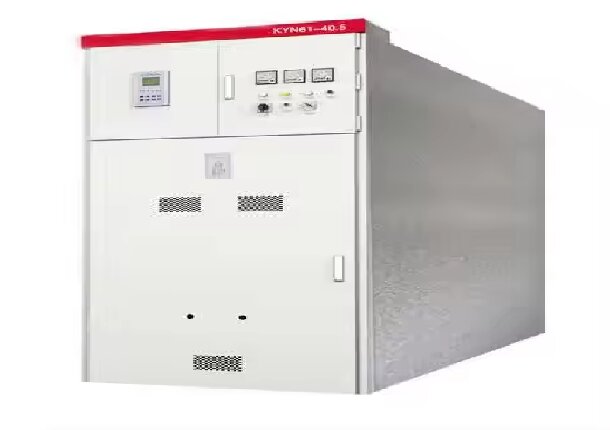

KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type

KYN61-40.5 AC Metal-Clad Withdrawable Switchgear (hereinafter referred to as "switchgear") is designed for three-phase AC 50Hz, 40.5kV single busbar & segmented busbar systems. It is primarily deployed in:Power plants and substations, Industrial/mining enterprises, High-rise building power transformation/distribution system.

  • KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type
  • KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type
Inquire
KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type
KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type
KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type
KYN61-40.5 Metal-clad AC enclosed Switchgear Withdrawable Type

Specification Parameter

Main technical parameters
Technical parameter of switch cabinet
No.ItemUnitParameter
Rated VoltagekV40.5
Rated FrequencyHz50
Rated Current of Main Bus-barA1250,1600,2000,2500
Rated Current of Branch Bus-barA630,125,1600
Rated Insulation Level1min Power Frequency Withstand Voltage (r.m.s.)
Lightning Impulse Withstand Voltage (Peak)
kVPhase-to-Phase and Phase-to-EarthIsolation Gap of Primary Circuit
Interpnase&phase to groundPrimary separation fracture
95 115
185 215
1min Power Frequency Withstand Voltage of Auxiliary and Control CircuitsV2000
Rated Short-Circuit Breaking CurrentkA25,31.5
Rated Short-Circuit Making Current (Peak) kA63,80
Rated Short-Time Withstand Current (4s)kA25,31.5
Rated Peak Withstand CurrentkA63,80
10 Auxiliary/Control Circuit VoltageV-110,-220,-220
11 Protection degree
Enclosure Protection Level
Main Compartments: IP4X (Sealed against ≥1mm solids)
Breaker Chamber (Door Open): IP2X (Finger-safe protection)
12 Dimension(W×D×H)mm("the number in parenthesis is schemeof SF6 trolley)
13 WeightkgApproximated 2300


Product Advantage

Product Advantage

Compact & Robust Design

·Utilizes heat-shrink insulation and epoxy coating technology with optimized electrode geometry

·40% smaller footprint vs. conventional switchgear

Precision Manufacturing

·Enclosures constructed from cold-rolled steel via CNC machining

·High-strength bolted/riveted assembly with anti-corrosion finish (powder-coated or galvanized)

Multi-Brand Compatibility

·Supports both domestic and international breakers:

ZN85-40.5 (3AV3) vacuum circuit breakers (China)

Schneider SF1/SF2 & Alstom FP series SF6 circuit breakers



Enhanced Safety Architecture

·Full metal compartmentalization with independent pressure relief channels

·Closed-door operation for breakers/earthing switches

·198+ scalable configurations to meet diverse grid requirements

Certified Protection System



·Integrated mechanical interlocks between:

» Withdrawable truck

» Circuit breaker

» Earthing switch

» Rear panel

·Full "Five-Protections" safety compliance

Outline And Mounting Dimensions
